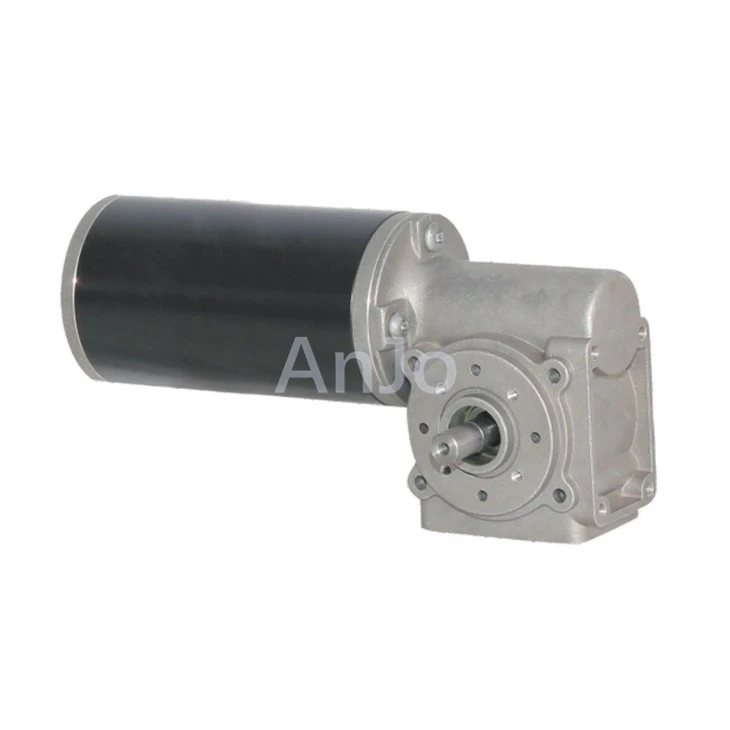

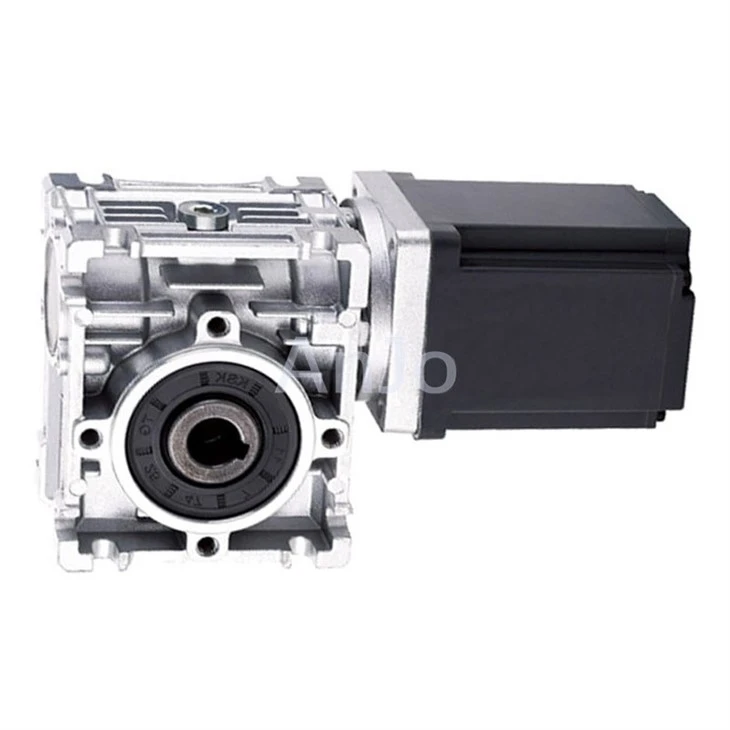

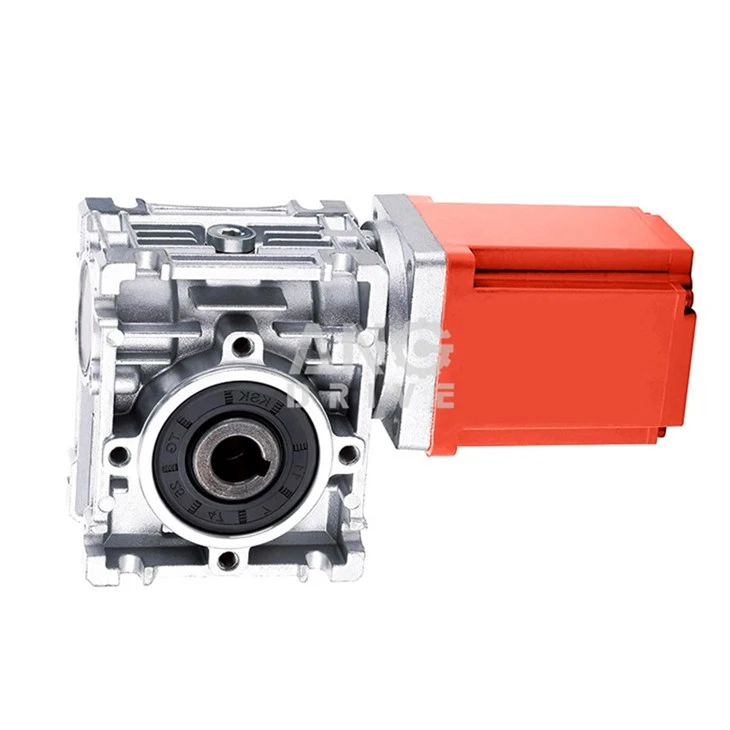

Brushless DC worm gear motor integrates BLDC brushless drive system and 90-degree worm gear reduction unit. It features compact layout, self-locking brake and adjustable speed control. As a compact heavy-duty power unit for automation machines, medical instruments and warehouse lifting equipment, it fits narrow internal installation space, with quiet operation and long maintenance-free service life.
90° Integrated Right-angle Assembly
The motor and worm gear reducer are vertically integrated as one piece without extra connecting flanges. Compact structure supports horizontal, vertical and embedded installation, greatly saving internal space of equipment.
Reverse Self-locking Worm Gear Pair
Precision worm and wheel meshing structure brings built-in self-locking performance for high reduction ratio models. Loads will not slide or reverse after shutdown, realizing basic braking without additional brakes.
Brushless Hall Electronic Commutation
It removes carbon brush friction parts of brushed motors. Hall sensors realize electronic phase change, no carbon dust or electric sparks during operation. Matched drivers support stepless speed regulation and closed-loop precise control.
High Torque Density in Compact Size
Worm gear reduction amplifies output torque. It delivers much stronger torsion than direct-drive motors under the same volume, providing powerful low-speed power for heavy-load pushing, lifting and flipping work.
Long Service Life & Low Maintenance Cost
No wearable carbon brushes. Gearboxes are pre-filled with long-term temperature-resistant grease at factory. It can run tens of thousands of hours without spare part replacement or oil refilling, cutting labor and accessory maintenance costs.
Low Vibration & Quiet Operation
Precision grinding process optimizes meshing clearance of worm gears. Combined with stable BLDC current control, the motor runs without shock jitter during start and stop, low operating noise to meet silent standards of medical and indoor automation equipment.
Q: What is the motor protection class, can it work in humid or splashing water environments?
A:The standard protection rating is IP55, resistant to light dust and splashing water. Custom IP65 sealed versions with waterproof cable glands are available for humid or spray working conditions.
Q:Does the standard motor package include a matching driver?
A:Standard delivery only contains the motor body. Drivers and encoder cables are optional accessories, which can be purchased as complete sets according to your control requirements.
Q:Will the reverse self-locking fully lock the output shaft, can I turn the shaft manually?
A:High ratio models have extremely high manual rotation resistance after self-locking and cannot be turned easily. If manual fine-tuning is required, choose low ratio models or install a manual release mechanism additionally.
