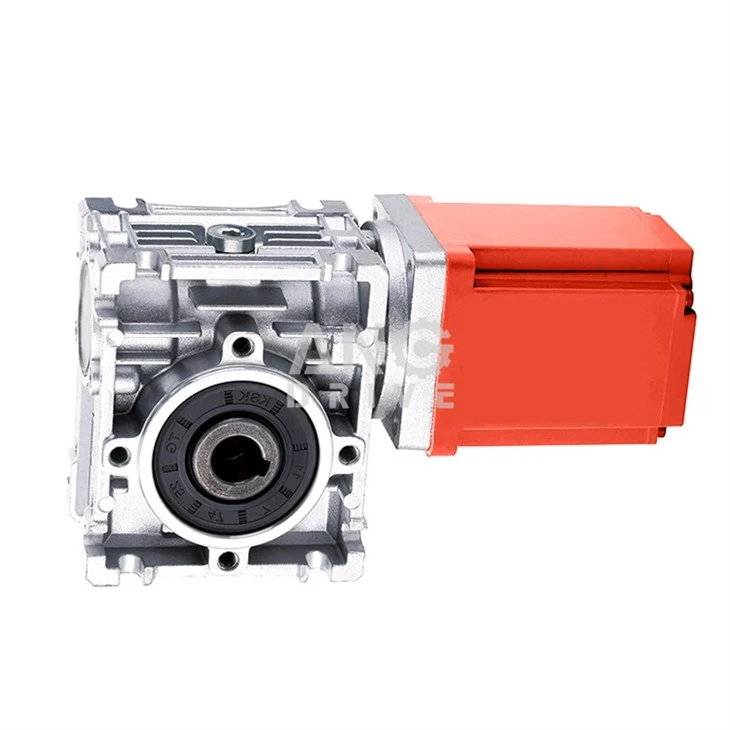

Low Speed BLDC Motor is an integrated high-efficiency power component with built-in reduction gears, developed for low-speed and heavy-load working conditions. Combined with sensorless BLDC electronic control and precision reduction structure, it features high torque output, low noise operation and wide voltage adaptability. It is an ideal power solution to replace traditional brushed motors and split reduction motors, widely used in automated conveyors, small lifting equipment, AGVs, solar trackers, stirring machines and other machinery. Without carbon brushes and external Hall sensors, the integrated motor is easy to install, low in power consumption and free from frequent maintenance. It runs stably under long-time continuous full load, effectively cutting later operation and maintenance costs of equipment.
High Torque at Low Speed
Equipped with built-in precision reduction module, no extra reducer needed. It delivers constant and sufficient torque at 10-500rpm, no power drop during heavy-load startup and stop, perfectly matching low-speed high-load operations.
Silent Sensorless Driving Structure
Adopt Hall-free sensorless vector control to lower internal friction loss. Operating noise is controlled below 50dB, no jitter or harsh abnormal sound at low rotation for quiet working environment.
Stable Wide Voltage Regulation
Compatible with mainstream DC12V/24V/48V power supply. The built-in voltage stabilizer keeps stable speed and torque even under ±20% voltage fluctuation for strong power supply adaptability.
Integrated Design to Save Installation Space
The motor and reducer are combined into one unit, removing couplings and separate reducers. Overall size is reduced by 30%, simplifying mechanical assembly and saving layout space of equipment.
High Efficiency & Longer Battery Life
Brushless winding eliminates carbon brush wear with energy efficiency over 85%. It consumes 25% less power than conventional brushed low-speed motors under the same load, greatly extending battery runtime of battery-powered devices.
Maintenance-free & Long Service Life to Cut Maintenance Cost
No wearable carbon brushes or fragile Hall sensors. The sealed housing is dustproof and splash-proof, supporting 24-hour non-stop full-load operation. Its service life can exceed 10,000 hours under standard working conditions.
Q: Does this low speed BLDC motor support forward and reverse rotation?
A:Yes. The matching driver realizes easy forward/reverse switching via control signals with smooth transition without impact, suitable for reciprocating equipment such as lifting and conveying machines.
Q:Will the motor stall or lack power at extremely low rotating speed?
A:No. Special sensorless vector algorithm optimizes low-speed torque with sufficient startup torque. It runs smoothly without stalling under no-load, light-load and heavy-load low-speed conditions.
Q:What is the speed control method and adjustable speed range?
A:PWM stepless speed regulation is supported, stable working speed ranges from 10rpm to 500rpm with linear smooth speed adjustment without speed gap.
