Description

Technical Parameters

product characteristics

Full Stainless Steel Integrated Construction

The complete housing, end covers, output shaft and fastening screws of this 0.55KW stainless steel motor are all made of 304 stainless steel without paint coating. Its smooth curved surface leaves no dead corners for dirt accumulation, making it suitable for high-frequency water washing working conditions.

Multiple Speed & Frame Options

0.55KW stainless steel motors cover two standard frame sizes of 71 and 80, and are available in three pole numbers including 2-pole, 4-pole and 6-pole, corresponding to three rated speed grades of high, medium and low to meet the transmission requirements of various equipment

Heavy-Duty Sealed Protection System

Our 0.75HP motor is equipped with a multi-layer O-ring sealing structure, featuring an IP rating of IP66 or higher up to the maximum IP69K. It adopts Class F high-temperature resistant insulated windings and can withstand environments with moisture, weak acid and salt spray corrosion.

product advantage

Corrosion Resistant & Easy Sanitization

This motor is made of stainless steel that resists rust and corrosion. It can be directly rinsed with clean water and detergent without risks of paint peeling or rust formation, greatly cutting labor costs for sanitation and cleaning in the food and chemical industries. STARK stai...

Wide Application Compatibility

Our 0.55KW stainless steel motors: the 71 small frame suits compact equipment, while the 80 frame delivers higher torque. Speeds with 2/4/6 poles can be freely matched, and the motors are universally applicable for mixing, conveying, filling and cleaning equipment.

Reliable & Low Maintenance

The stainless steel structure of our motors resists aging and cracking, featuring low winding temperature rise, minimal operating noise and vibration, and extended bearing service life. It drastically cuts the frequency of downtime maintenance under harsh and humid environments.

product detail photos

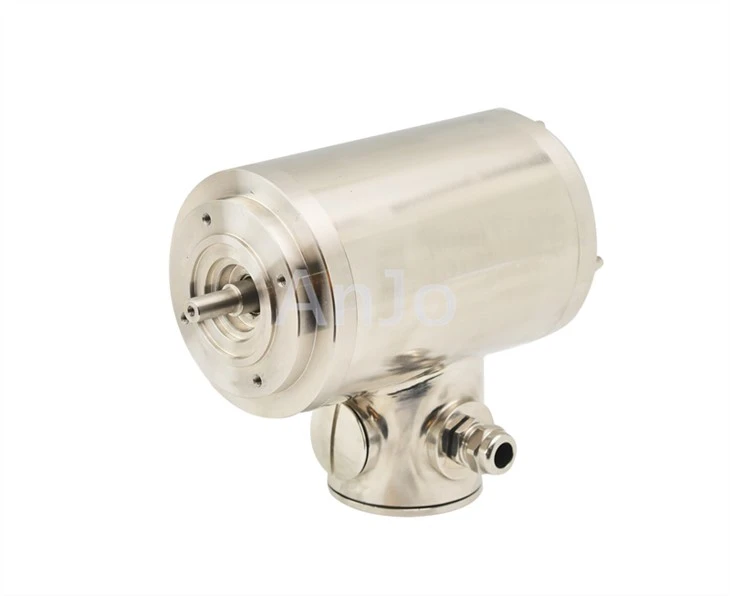

Stainless steel electric motor

Stainless steel motor with B14 flange

Stainless steel motor with IP69K protection

Stainless steel motor with built-in cooling fan

Washproof motor with B14 flange

Stainless steel eclctrical motor

304 stainless steel electric motor

Wash proof motor with B5 flange

Stainless steel motor with foot mount and B5 flange

product description

Stainless steel motor
Power	0.75HP 0.55KW
Frame Size	IEC 71/80 B5 B14, NEMA 56/143T
Phase	Single-Phase or Three-Phase
Voltage	115V 120V 220V 230V 240V 380V 400V 415V 440V 480V 575V 600V 660v, etc
Poles	2. 4, 6, 8 poles
Protection Class	IP55, IP66, IP69K
Enclosure Type	IC411. IC410, IC416, TENV, TEFC
Mounting Type	B14, B3, B5, B35, B34
Ambient Temperature	-15°C ~+41°C
Altitude	≤1000 M
Material	Stainless steel 304
Flange Options	IEC:71B5B14, 80B14B5 NEMA:56 , 143T

Stainless steel IEC Motor Description

Model		Power kW		Rated current A		Speed r/min		Eff.%		Power factor		Rated torque Nm		Tst / TN		Ist / IN		Tmax / TN	Noise dB(A)
Synchronous speed 3000 r/min
AS80M1-2	0.75		1.70		2843		80.72		0.82		2.5		2.3		7.0		2.3			62
AS80M2-2	1.1		2.40		2828		82.73		0.83		3.7		2.2		7.3		2.3			62
AS90S-2	1.5		3.20		2856		84.24		0.84		5.0		2.2		7.6		2.3			67
AS90L-2	2.2		4.60		2857		85.92		0.85		7.4		2.2		7.6		2.3			67
AS100L-2	3		6.01		2898		87.11		0.87		9.9		2.2		7.8		2.3			74
AS112M-2	4		7.80		2896		88.12		0.88		13.2		2.2		8.3		2.3			77
AS132S1-2	5.5		10.6		2921		89.21		0.88		18.0		2.0		8.3		2.3			79
AS132S2-2	7.5		14.4		2922		90.14		0.88		24.6		2.0		7.9		2.3			79
AS160M1-2	11		20.61		2963		91.21		0.89		35.5		2.0		8.1		2.3			81
AS160M2-2	15		27.91		2955		91.91		0.89		48.5		2.0		8.1		2.3			81
AS160L-2	18.5		34.21		2956		92.42		0.89		59.8		2.0		8.2		2.3			81
AS180M-2	22		40.51		2965		92.71		0.89		71.0		2.0		8.2		2.3			83
Synchronous speed 1500 r/min
Model	Power kW		Rated current A		Speed r/min		Eff.%		Power factor		Rated torque Nm		Tst / TN		Ist / IN		Tmax / TN			Noise dB(A)
AS80M1-4	0.55		1.4		1425		80.6		0.75		3.7		2.3		6.5		2.3			56
AS80M2-4	0.75		1.80		1410		82.50		0.75		5.0		2.3		6.6		2.3			56
AS90S-4	1.1		2.60		1420		84.11		0.76		7.4		2.3		6.8		2.3			59
AS90L-4	1.5		3.50		1425		85.31		0.77		10.1		2.3		7.0		2.3			59
AS100L1-4	2.2		4.80		1443		86.70		0.81		14.5		2.3		7.6		2.3			64
AS100L2-4	3		6.30		1445		87.70		0.82		19.8		2.3		7.6		2.3			64
AS112M-4	4		8.40		1456		88.60		0.82		26.1		2.2		7.8		2.3			65
AS132S-4	5.5		11.20		1461		89.61		0.83		36.0.		2.0		7.9		2.3			71
AS132M-4	7.5		15.01		1462		90.40		0.84		49.0		2.0		7.5		2.3			71
AS160M-4	11		21.50		1468		91.42		0.85		71.7		2.2		7.7		2.3			73
AS160L-4	15		28.80		1469		92.12		0.86		97.8		2.2		7.8		2.3			73
AS180M-4	18.5		35.31		1474		92.60		0.86		120		2.0		7.8		2.3			76
AS180L-4	22		41.80		1474		93.01		0.86		142		2.0		7.8		2.3			76
Synchronous speed 1000 r/min
Model	Power kW		Rated current A		Speed r/min		Eff.%		Power factor		Rated torque Nm		Tst / TN		Ist / IN		Tmax / TN			Noise dB(A)
AS80M1-6	0.37		1.12		913		73.51		0.70		3.9		1.9		5.5		2.0			54
AS80M2-6	0.55		1.51		905		77.22		0.71		5.8		1.9		5.8		2.1			54
AS90S-6	0.75		2.01		943		78.93		0.71		7.7		2.0		6.0		2.1			57
AS90L-6	1.1		2.80		938		81.03		0.73		11.3		2.0		6.0		2.1			57
AS100L-6	1.5		3.81		955		82.53		0.73		15.0		2.0		6.5		2.1			61
AS112M-6	2.2		5.41		966		84.33		0.74		21.7		2.0		6.6		2.1			65
AS132S-6	3		7.21		976		85.62		0.74		29.4		1.9		6.8		2.1			69
AS132M1-6	4		9.51		978		86.82		0.74		39.2		1.9		6.8		2.1			69
AS132M2-6	5.5		12.71		979		88.02		0.75		54.1		2.0		7.0		2.1			69
AS160M-6	7.5		16.22		980		89.12		0.79		73.5		2.0		7.0		2.1			70
AS160L-6	11		23.11		985		90.31		0.80		108		2.0		7.2		2.1			70
AS180L-6	15		30.90		987		91.22		0.81		147		2.0		7.3		2.1			73

Stainless steel NEMA motor Description

HP	Full load r/min	Frame	Conn.	Code	Current at 460V			Torque			Efficiency			Power Factor
HP	Full load r/min	Frame	Conn.	Code	Idle	Full load (A)	Locked Rotor (A)	Full load (LB-FT)	Locked Rotor %	Break down %	Full load %	3/4 load %	1/2 load %	Full load %	3/4 load %	1/2 load %
1/4	3405	56C	2Y/Y	H	0.22	0.42	10	0.39	230	275	70.0	71.44	69.63	80	80.36	69.56
1/3	3405	56C	2Y/Y	H	0.32	0.54	10	0.51	230	275	71.0	73.56	71.40	81	78.15	66.47
1/2	3425	56C	2Y/Y	J	0.41	0.77	10	0.77	230	275	74.0	77.04	74.90	82	80.11	69.10
3/4	3410	56C	2Y/Y	H	0.59	1.12	12.5	1.16	200	275	75.5	78.11	76.88	83	81.78	71.31
1	3440	56HC	2Y/Y	J	0.63	1.45	15	1.53	185	250	77.0	81.10	79.73	84	84.96	75.53
1.5	3440	56HC	2Y/Y	H	0.87	1.99	20	2.29	175	250	84.0	82.91	82.15	84	86.20	77.77
2	3430	56HC	2Y/Y	G	0.91	2.55	25	3.07	170	240	85.5	84.61	83.99	86	89.24	82.72
1/4	1740	56C	2Y/Y	K	0.34	0.46	10	0.76	300	300	74.0	74.71	72.01	69	64.92	51.73
1/3	1735	56C	2Y/Y	J	0.46	0.58	10	1.00	300	300	76.0	76.54	72.98	70	65.19	51.84
1/2	1730	56C	2Y/Y	J	0.56	0.82	10	1.52	250	300	77.0	77.77	75.94	74	69.60	56.48
3/4	1725	56C	2Y/Y	H	0.83	1.22	12.5	2.29	275	300	78.0	79.36	78.01	74	71.14	58.37
1	1725	56HC	2Y/Y	G	1.06	1.52	15	3.05	250	280	82.5	82.88	81.73	75	71.94	59.16
1.5	1720	56HC	2Y/Y	G	1.34	2.12	20	4.59	250	280	84.0	84.58	83.88	79	75.50	63.49
2	1720	56HC	2Y/Y	G	1.64	2.78	25	6.11	235	270	84.0	85.64	85.00	80	76.83	65.21
1/4	1140	56C	2Y/Y	H	0.52	0.56	10	1.15	175	265	68.0	69.65	66.05	62	54.66	42.50
1/3	1140	56C	2Y/Y	H	0.61	0.70	10	1.52	175	265	70.0	72.74	69.69	64	56.17	43.79
1/2	1135	56C	2Y/Y	G	0.80	0.96	10	2.32	175	265	74.0	75.86	73.48	66	59.02	46.30
3/4	1135	56HC	2Y/Y	G	1.11	1.36	12.5	3.47	175	265	77.0	79.67	77.59	67	60.05	47.21
1	1135	56HC	2Y/Y	F	1.50	1.72	15	4.63	170	265	80.0	80.69	78.82	68	60.14	47.10
1.5	1130	56HC	2Y/Y	F	2.11	2.58	20	6.98	170	265	80.0	81.88	80.48	68	62.16	48.97
2	1130	56HC	2Y/Y	G	2.88	3.39	25	9.31	170	265	80.0	83.03	81.88	69	64.00	51.30

HP	Full load r/min	Frame	Conn.	Code	Current at 460V			Torque			Efficiency			Power Factor
HP	Full load r/min	Frame	Conn.	Code	Idle	Full load (A)	Locked Rotor (A)	Full load (LB-FT)	Locked Rotor %	Break down %	Full load %	3/4 load %	1/2 load %	Full load %	3/4 load %	1/2 load %
3/4	3410	143TC	2Y/Y	H	0.59	1.12	12.5	1.16	200	275	75.5	78.11	76.88	83	81.78	71.31
1	3440	143TC	2Y/Y	J	0.63	1.45	15	1.53	185	250	77.0	81.10	79.73	84	84.96	75.53
1.5	3440	143TC	2Y/Y	H	0.87	1.99	20	2.29	175	250	84.0	85.05	84.71	84	86.20	77.77
2	3430	145TC	2Y/Y	G	0.91	2.55	25	3.07	170	240	85.5	86.15	86.12	86	89.24	82.72
3	3455	145TC	2Y/Y	H	1.31	3.78	32	4.57	160	230	86.5	86.90	85.91	86	89.66	83.30
3/4	1725	143TC	2Y/Y	H	0.83	1.22	12.5	2.29	275	300	78.0	79.36	71.14	74	78.01	58.37
1	1725	143TC	2Y/Y	G	1.06	1.46	15	3.05	275	300	85.5	84.76	83.20	75	71.94	59.16
1.5	1720	145TC	2Y/Y	G	1.34	2.06	20	4.59	250	280	86.5	86.35	85.13	79	75.50	63.49
2	1720	145TC	2Y/Y	G	1.64	2.71	25	6.11	235	270	86.5	86.82	86.25	80	76.83	65.21
3	1725	145TC	2Y/Y	G	2.57	3.92	32	9.14	215	250	89.5	88.91	88.15	80	77.10	65.61
3/4	1135	143TC	2Y/Y	G	1.11	1.36	12.5	3.47	175	265	77.0	79.67	77.59	67	60.05	47.21
1	1135	145TC	2Y/Y	F	1.50	1.67	15	4.63	170	265	82.5	82.54	81.31	68	60.14	47.10
3	3510	182TC	2Y/Y	J	1.46	3.73	32	4.49	160	230	86.5	87.25	86.36	87	88.65	81.80
5	3500	184TC	2Y/Y	H	2.26	6.01	46	7.51	150	215	88.5	88.91	88.63	88	89.55	83.35
3	1765	182TC	2Y/Y	J	2.53	3.92	32	8.94	215	250	89.5	89.42	88.18	80	75.25	63.24
5	1760	184TC	2Y/Y	H	3.52	6.54	46	14.94	185	225	89.5	89.32	88.61	80	79.82	69.39
1.5	1175	182TC	2Y/Y	G	1.69	2.29	20	6.71	165	250	87.5	87.32	88.43	70	67.30	54.35
2	1170	184TC	2Y/Y	G	2.09	2.90	25	8.99	160	240	88.5	88.32	86.51	73	69.16	56.42
3	1170	184TC	2Y/Y	F	2.88	4.3	32	13.48	155	230	89.5	89.12	87.61	73	65.35	52.23
7.5	3520	213TC	2Δ/Δ	G	1.72	8.82	63.5	11.20	140	200	89.7	89.82	89.45	89	89.95	84.62
10	3520	215TC	2Δ/Δ	G	1.88	11.53	81	14.94	135	200	90.2	90.76	90.25	90	91.66	87.78
7.5	1760	213TC	2Δ/Δ	G	3.65	9.12	63.5	22.41	175	215	91.7	91.63	91.12	84	81.90	73.06
10	1760	215TC	2Δ/Δ	G	4.10	12.16	81	29.87	165	200	91.7	91.85	91.41	84	83.64	75.83
3	1175	213TC	2Y/Y	G	3.18	4.30	32	13.42	155	230	89.5	89.65	88.42	73.0	68.46	55.95
5	1170	215TC	2Y/Y	F	4.82	6.97	46	22.47	150	215	89.5	90.08	89.46	75.0	71.38	59.35
15	3560	254TC	2Δ/Δ	G	4.35	17.34	116	22.15	180	240	91.0	91.17	90.0	89	89.0	83.5
20	3560	256TC	2Δ/Δ	G	5.17	22.87	145	29.54	160	220	91.0	91.25	91.21	90	90.8	87.0
15	1765	254TC	2Δ/Δ	F	7.75	18.31	116	44.68	185	220	92.4	92.42	91.61	83	81.4	71.4
20	1765	256TC	2Δ/Δ	G	9.20	23.97	145	59.58	180	220	93.0	92.45	92.28	84	85.0	77.6
7.5	1170	254TC	2Δ/Δ	G	5.20	10.29	63.5	33.70	180	220	91.0	91.17	90.48	75	69.5	57.5
10	1170	256TC	2Δ/Δ	G	6.83	13.54	81	44.94	170	220	91.0	91.4	90.61	76	70.9	58.7
25	3560	284TSC	2Δ/Δ	F	6.60	28.68	182.5	36.92	170	220	91.7	92.05	91.76	89	89.9	85.1
30	3560	286TSC	2Δ/Δ	E	7.70	34.42	217.5	44.31	170	230	91.7	92.10	92.07	89	90.2	85.7
25	1770	284TC	2Δ/Δ	G	10.50	29.08	182.5	74.26	170	220	93.6	93.42	92.66	86	83.4	74.7
30	1770	286TC	2Δ/Δ	G	12.00	34.90	217.5	89.11	170	220	93.6	93.29	93.12	86	84.5	76.5
15	1175	284TC	2Δ/Δ	G	7.80	19.15	116	67.12	165	220	91.7	91.55	91.15	80	78.7	68.3
20	1175	286TC	2Δ/Δ	F	9.37	25.53	145	89.49	150	210	91.7	91.85	91.18	80	81.9	73.9

partial drawing display

our advantages

eight reasons to choose us

product-800-1190

we have our own factory

product-696-758

multiple certificate certifications

product-1000-500

customization selection steps

product-800-450

payment and price terms

product-800-400

production and testing

packaging and transportation

product-800-480

product-558-711

signing for receipt

product-800-300

FAQ

Q: How many frame sizes and speed options are available for this 0.55kW stainless steel motor?

A: Two frame sizes (71 and 80), three pole/speed types including 2-pole, 4-pole and 6-pole. Custom mounting flange is available upon request.

Q: What stainless steel grade is used, can it work in food processing workshops?

A:SUS304 food-grade stainless steel throughout the unit. No paint flaking risk, seamless smooth surface meets food sanitation standards, ideal for meat, beverage and sauce production lines.

Q: Can it run continuously in humid workshops with acid & mist?

A: Yes. High IP sealing plus stainless steel corrosion resistance handles long-term hot water washing and chemical spray, and Class F winding sustains high operating temperature stably.
