Product Characteristics
Miniaturized integrated reduction transmission
Our 6W micro AC motor has a rated power of 6W, with a compact body size such as 60×60mm. The motor and reducer are integrally encapsulated with an aluminum alloy shell, ensuring easy installation and suitability for narrow spaces. The reduction ratio can be selected from 1:3 to 1:200, and the output speed can be as low as 7.5rpm, balancing compact structure and transmission precision.
Wide-range speed regulation + flexible control adaptation
Our micro AC motor supports speed regulation from 90 to 1400rpm. It can be equipped with a speed governor to realize forward and reverse rotation, electronic braking, and slow acceleration and deceleration. Some models are equipped with speed sensors, which can form a closed-loop linkage with PLC/ microcontrollers to meet the needs of automated precision control.
Lightweight and durable transmission structure
The reducer of our product usually adopts a cylindrical gear design, featuring high meshing precision, low noise, and long service life. The overall weight is light, and the temperature rise during continuous operation is stable. Some models are integrated with electromagnetic brakes, which can stop immediately when the power is cut off, improving safety and positioning accuracy.
Product advantages
Low speed and high torque, with power precisely
adapted
Our product amplifies the output torque through a reduction mechanism, enabling it to stably drive small mechanical loads with low power. It is suitable for scenarios that require stable low-speed and high-torque, such as automatic curtains, smart door locks, and small turntables.
Energy-saving and low-noise, with controllable operation and maintenance costs
Our 6W micro AC motor has low energy consumption under no-load and light-load conditions; it produces little noise, has low temperature rise during continuous operation, and experiences little wear, resulting in low maintenance costs for long-term use. It is suitable for small equipment that runs continuously for 24 hours.
Wide scenario adaptation and efficient integrated
development
Our micro AC motor is compatible with single-phase voltages such as 220V and 110V, and has standardized installation interfaces, allowing for quick integration into DIY devices, small automated production lines, medical instruments, 3D printing platforms, etc. It features flexible control methods, easily linking with speed regulators and PLCs, thus shortening the development cycle.

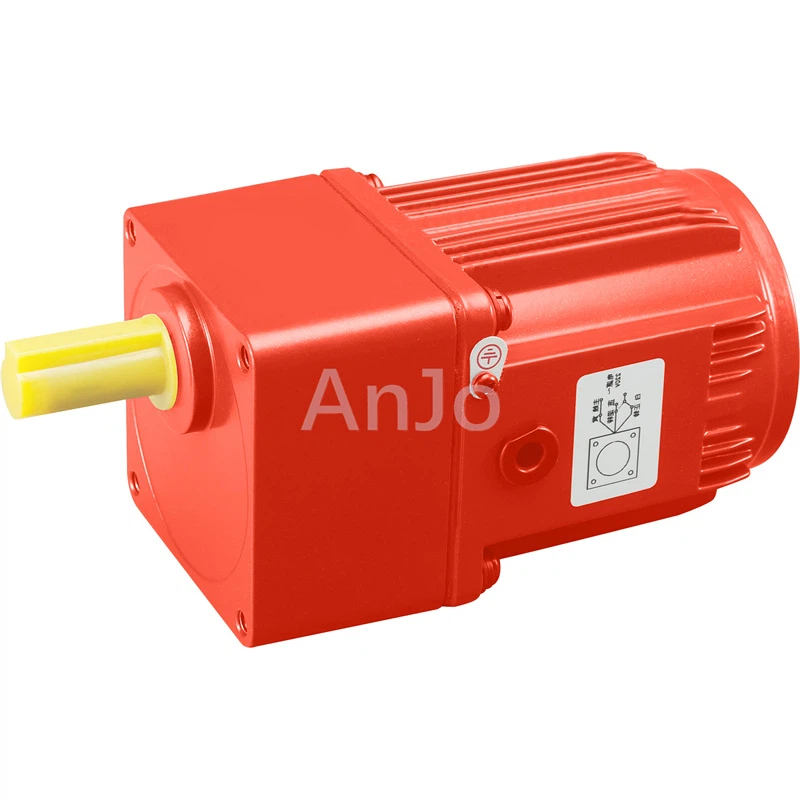

Product detail photos
Product Description
|
6W Micro gear motor |
|
|
Motor size |
60mm*60mm |
|
Motor power |
6W |
|
Motor speed |
1210rpm at 50Hz, 1455rpm at 60Hz |
|
Motor current |
0.131 ~ 0.252A |
|
Motor torque |
42 ~ 45mNm |
|
Capacitor |
0.8uF ~ 3.1uF |
|
Motor shaft dia. |
6mm |
|
Gear Ratio |
1/3 ~ 1/200 |
|
Gearbox torque |
0.12 ~ 2.51Nm |
|
Gearbox shaft dia. |
8mm |
|
Total weight |
1.15kg |
|
Total length |
115mm |
|
Advantages |
●+ 100% No oil leakage ●+ 10% Lower noise ● 10%+ Lower temperature rise ● 10%+ Lower price ● 10%+ Higher load capacity ● IP55 full protection |
|
Brand |
ANG |
|
Warranty |
1 year |
|
Place of origin |
China |
|
HS code |
8501400090 |
Partial drawing display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: Do your motor products have a warranty? How long is the warranty period?
A: Yes, our product has a one-year warranty.
Q: What is the difference between a three-phase motor and a single-phase motor? How to choose?
A: Three-phase motors have a wide power range, stable operation, and high efficiency, making them suitable for large industrial equipment; single-phase motors have lower power, are suitable for household or small equipment, and require a 220V single-phase power supply; you can choose according to the equipment power and on-site power supply conditions.
Q: Is it normal for a motor to heat up during operation? What temperature is considered excessive?
A: When the motor is running, the windings will generate a certain amount of heat. If the temperature of the housing is too high, or if it is accompanied by an unusual smell or noise, the motor must be shut down immediately for inspection to check for issues such as overload and poor heat dissipation.
