Product Characteristics
Compact body with powerful performance
Our 10W micro AC motor is small in size and features an integrated design with a reducer. There is no need for additional splicing of transmission components; it can be used by directly fixing it during installation, without occupying the internal space of the equipment.
Stable and durable
This micro AC motor can adapt to the normal temperature environment of homes and small workshops. It can operate stably even when encountering slight voltage fluctuations occasionally, and is not prone to failures with frequent start-ups and stops, eliminating the need for frequent monitoring and maintenance.
Flexible speed regulation and easy control
This motor can adjust its speed when paired with an ordinary speed governor and can easily achieve forward and reverse rotation. It can be adapted to both slow-moving small conveyor belts and small mechanical arms that need to move back and forth.
Product advantages
More energy-efficient and cost-saving
With a 10W power, the daily electricity cost is extremely low. Equipped with a reducer, it can drive light loads, such as small material pushing, small valve switching, etc.
Low noise
The gear engagement of our micro AC motor is tight, resulting in extremely low noise during operation. When placed next to household equipment or office precision instruments, it will not generate noise.
Strong adaptability and customizable
Our product is compatible with single-phase 220V and 110V voltages, with frequencies of 50HZ and 60HZ available for selection. Our product also supports customization and can be applied to various occasions and scenarios.

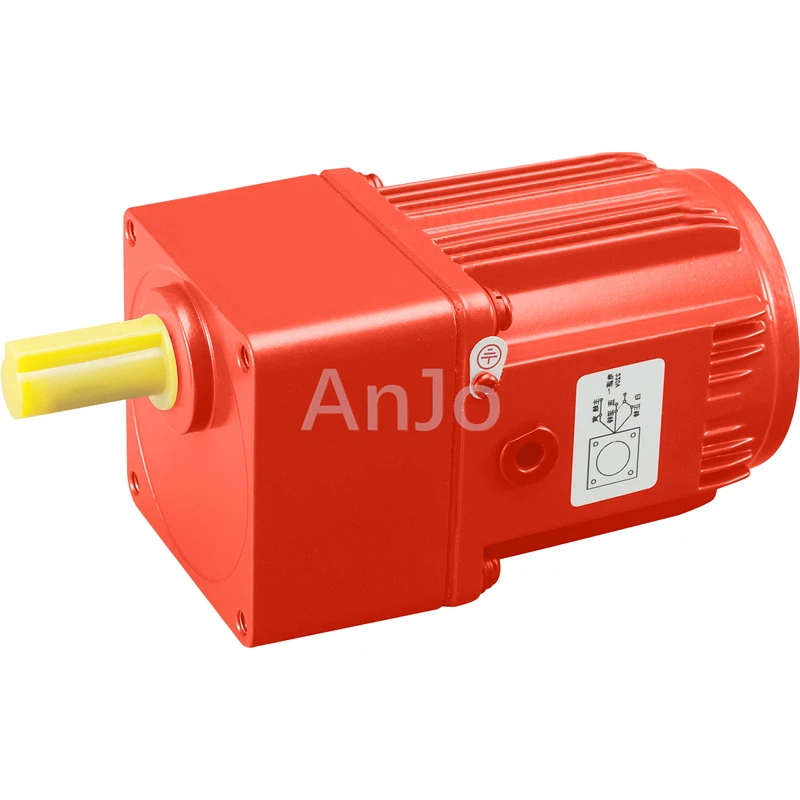

Product detail photos
Product Description
|
10W Micro gear motor |
|
|
Motor size |
60*60(mm) |
|
Motor power |
10W |
|
Motor speed |
1215rpm at 50Hz, 1460rpm at 60Hz |
|
Motor current |
0.14 ~ 0.26A |
|
Motor torque |
68 ~ 81mNm |
|
Capacitor |
1uF ~ 3.5uF |
|
Motor shaft dia. |
6mm |
|
Ratio |
1/3 ~ 1/200 |
|
Torque |
0.21 ~ 2.51Nm |
|
Shaft dia. |
8mm |
|
Weight |
1.15kg |
|
Length |
115mm |
|
Advantages |
● 100% No oil leakage ● 10%+ Lower noise ● 10%+ Lower temperature rise ● 10%+ Lower price ● 10%+ Higher load capacity ● IP55 full protection |
|
Brand |
ANG |
|
Warranty |
1 year |
|
Place of origin |
Zhejiang China |
|
HS code |
8501400090 |
Partial drawing display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: How long is the service life of a motor? How to extend its service life?
A: The designed service life of the standard motor is 10-15 years, and the actual life depends on the operating conditions. Regular maintenance, avoiding overload operation, and maintaining stable voltage can effectively extend the service life.
Q: What is the energy efficiency class of your company's motors?
A: We have multiple energy efficiency classes, IE1, IE2, IE3, and IE4, which can be freely chosen.
Q: Do you provide samples?
A: Yes, we support purchasing sample orders for testing.
