Product Characteristics
High protection level design
The body protection level of our 15W micro AC motor reaches IP55 and above. The junction box supports bidirectional outlet and is compatible with corrugated pipe joints, which can effectively prevent dust and splashing water. It can be directly applied to industrial scenarios with mild dust, humidity or outdoor equipment.
Wide voltage compatibility design
Our 15W micro AC motor supports AC 110V/220V multi-voltage input, without the need for additional transformers or voltage conversion modules. It can be directly adapted to the power supply standards of different countries and different scenarios, making cross-border applications and multi-device integration more convenient.
Intelligent overload protection
Our motor has a built-in current overload detection module. When the load exceeds the rated torque, it will automatically reduce the speed and limit the current to avoid motor burnout due to stalling. At the same time, it supports fault signal output, which can be connected to the equipment control system to realize early warning linkage.
Product advantages
Standardized interface with zero integration threshold
The output shafts and mounting flanges of our motors and reducers comply with the ISO general standards for micro motors, allowing direct matching with mainstream accessories on the market such as couplings, brackets, and speed governors. There is no need for separate mold opening and customization, which significantly shortens the equipment development and production cycle.
Low long-term operating costs
The high energy efficiency design of our motors reduces electricity expenses. Combined with molybdenum-containing alloy steel gears and long-lasting lubrication technology, the service life can reach more than 10,000 hours. Moreover, it is free from regular oil change and maintenance, resulting in a more advantageous total cost in long-term use.
Fast start-stop response and high control precision
By optimizing the design of electromagnetic windings and rotor inertia, our product has a start-up delay time of less than 0.2 seconds, with no obvious inertial sliding during braking. It can accurately execute high-frequency start-stop and reversing commands, making it suitable for small automation scenarios that require high motion precision, such as automatic labeling and precision positioning and sorting.
Product detail photos
Product Description
|
15W Micro gear motor |
|
|
Motor size |
70mm*70mm |
|
Motor power |
15W |
|
Motor speed |
1250rpm at 50Hz, 1500rpm at 60Hz |
|
Motor current |
0.055 ~ 0.38A |
|
Motor torque |
95.5 ~ 150mNm |
|
Capacitor |
1.2uF ~ 6uF |
|
Motor shaft dia. |
8mm |
|
Gear Ratio |
1/3 ~ 1/300 |
|
Gearbox torque |
0.28 ~ 4.9Nm |
|
Gearbox shaft dia. |
10mm |
|
Total weight |
1.6kg |
|
Total length |
153mm |
|
Advantages |
● 100% No oil leakage ● 10%+ Lower noise ● 10%+ Lower temperature rise ● 10%+ Lower price ● 10%+ Higher load capacity ● IP55 full protection |
|
Brand |
ANG |
|
Warranty |
1 year |
|
Place of origin |
Zhejiang China |
|
HS code |
8501400090 |

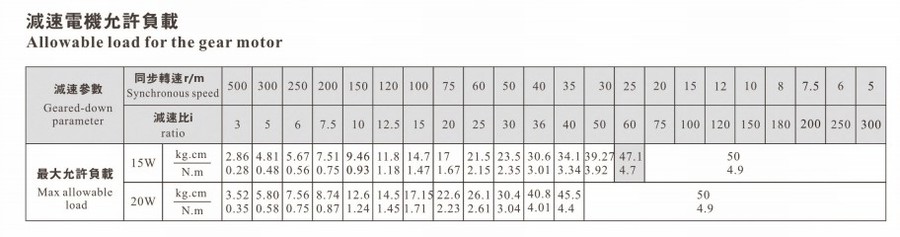

Partial drawing display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: Do you provide samples?
A: Yes, we support purchasing sample orders for testing.
Q: Will you provide drawings and technical services?
A: Yes, we will provide 2D and 3D drawings as well as technical support.
Q: How can I contact to place an order?
A: You can send an inquiry directly, and our sales staff will contact you promptly.
