Product Characteristics
Optimized Square Housing & Flexible Integration
Our NMRV063 comes with a rigid square-type aluminum housing that enhances both structural strength and heat dissipation. It supports multiple input and mounting combinations, enabling smooth integration with diverse machinery while maximizing space efficiency.
Efficient Single-Stage Worm Drive with Built-in Self-Locking
Our gearbox utilizes a precision worm-and-gear transmission system that delivers a wide ratio range in a single stage. Its unique mechanical design provides reliable static self-locking to prevent reverse rotation, improving safety and positioning stability.
High-Grade Materials for Long-Term Durability
Constructed with high-performance die-cast aluminum for lightweight and efficient cooling, it also features hardened alloy worms and wear-resistant bronze gears. Paired with premium bearings and dual-lip seals, the unit ensures consistent performance under continuous operation.
Product advantages
Smooth, Precision-Driven Performance
Equipped with ground gear profiles and high-strength alloy components, our NMRV063 ensures tight meshing, low vibration, quiet operation, and minimal wear over its service life.
Heavy-Duty, Low-Maintenance Design
With IP55-rated protection, multi-layer sealing, and long-life lubrication, our gearbox operates reliably across a wide temperature range and supports extended service intervals with minimal upkeep.
Superior Cost Efficiency for Global Markets
Offering a highly competitive price point compared to imported alternatives, it reduces initial investment while shortening lead times. The optimized structure also lowers total operating costs, helping customers strengthen market competitiveness.

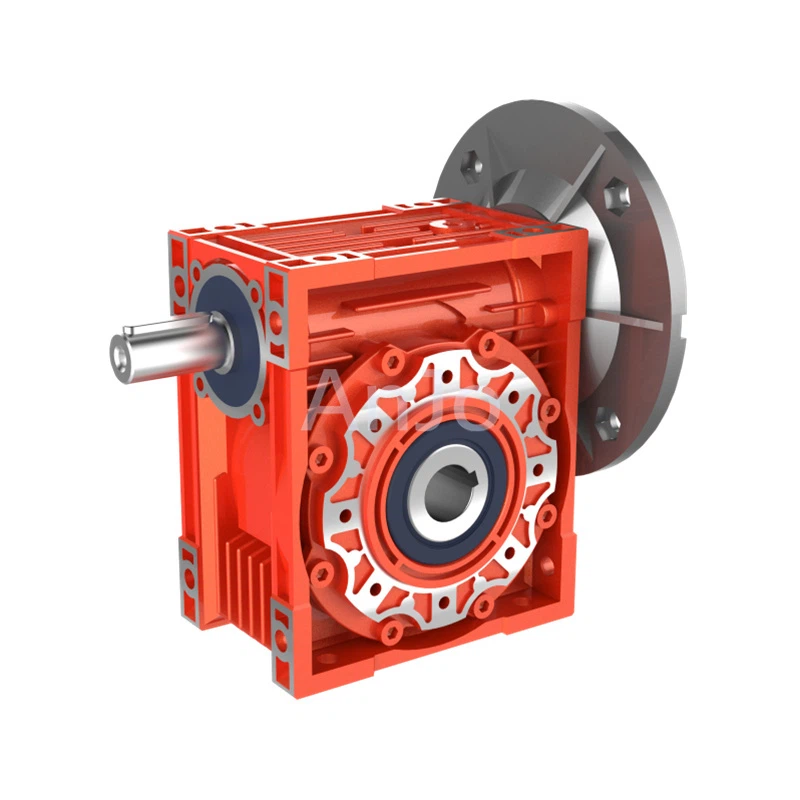

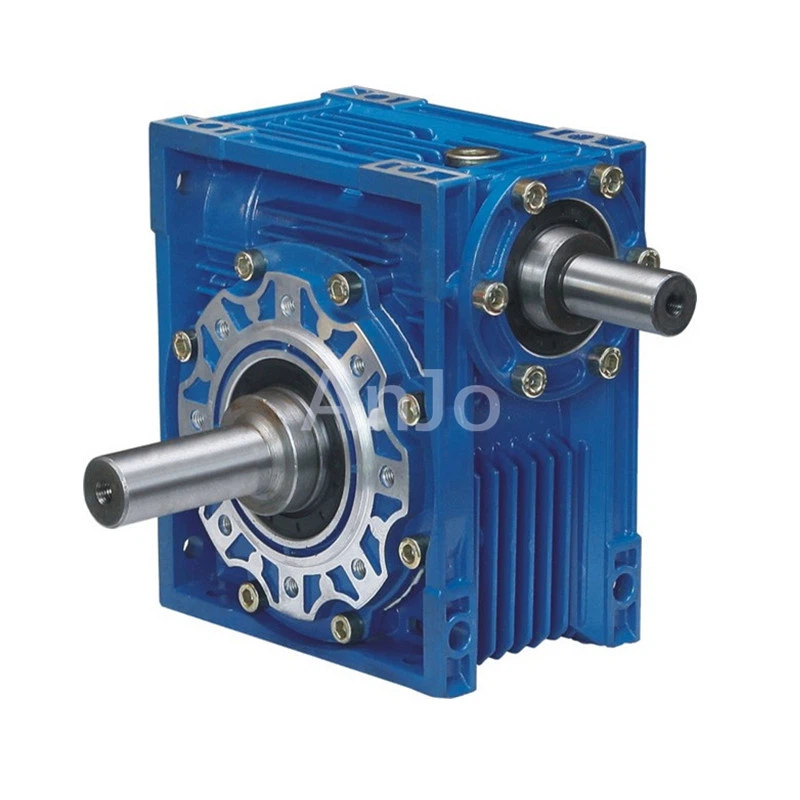

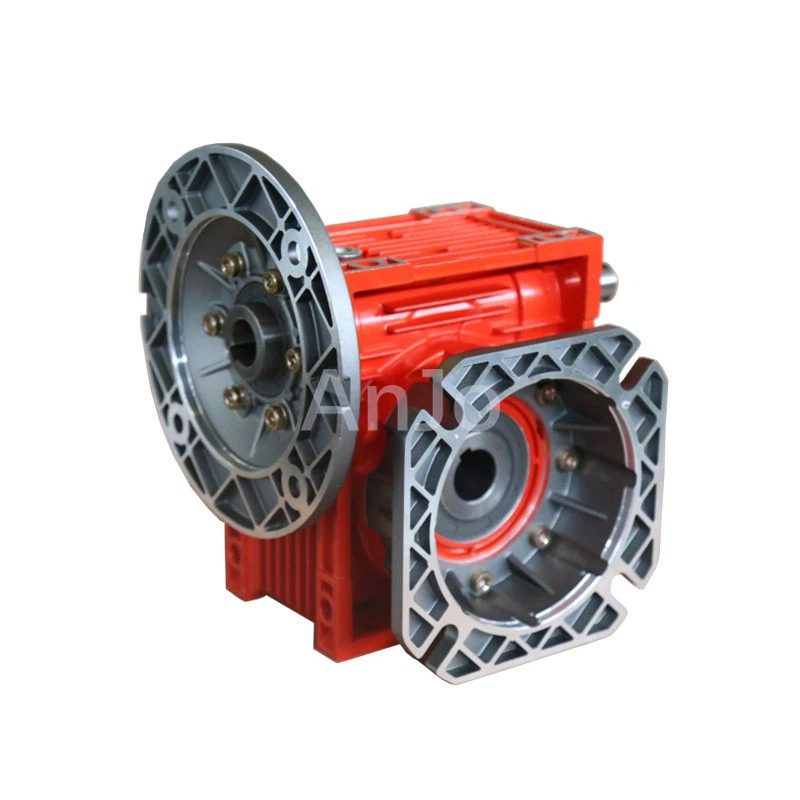

Product detail photos
Product Description
|
NMRV 063 Gearbox |
|
|
Model |
NMRV063 |
|
Power |
0.25kw ~ 1.5kw |
|
Input speed |
750rpm ~ 2000rpm |
|
Reduction ratio |
1/5 ~ 1/100 |
|
Input motor |
AC (1 phase or 3 phase) / DC / BLDC / Stepper / Servo |
|
Output shaft |
Solid shaft / Hollow shaft / Output flange… |
|
standard shaft diameter |
25mm |
|
Material of housing |
die-cast aluminum / Stainless steel |
|
Accessories |
Flange / Solid shaft / Torque arm / Cover … |
|
Application |
Food Stuff, Ceramics, Chemical, Packing, Dyeing, Woodworking, Glass, etc. |
|
Place of origin |
China |
|
Package |
carton/wooden box |
|
HS codes |
8483409090 |

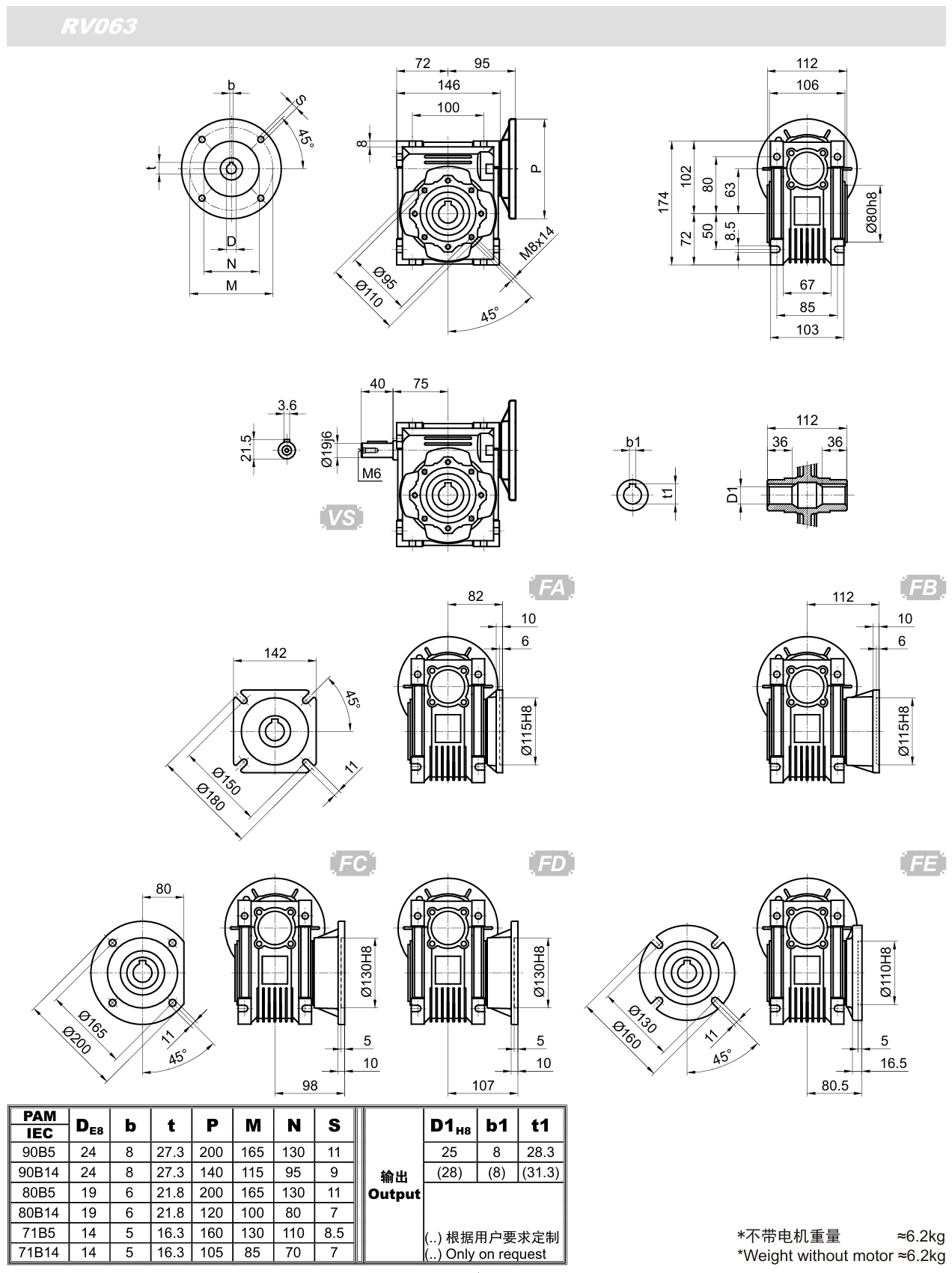

Partial drawing display

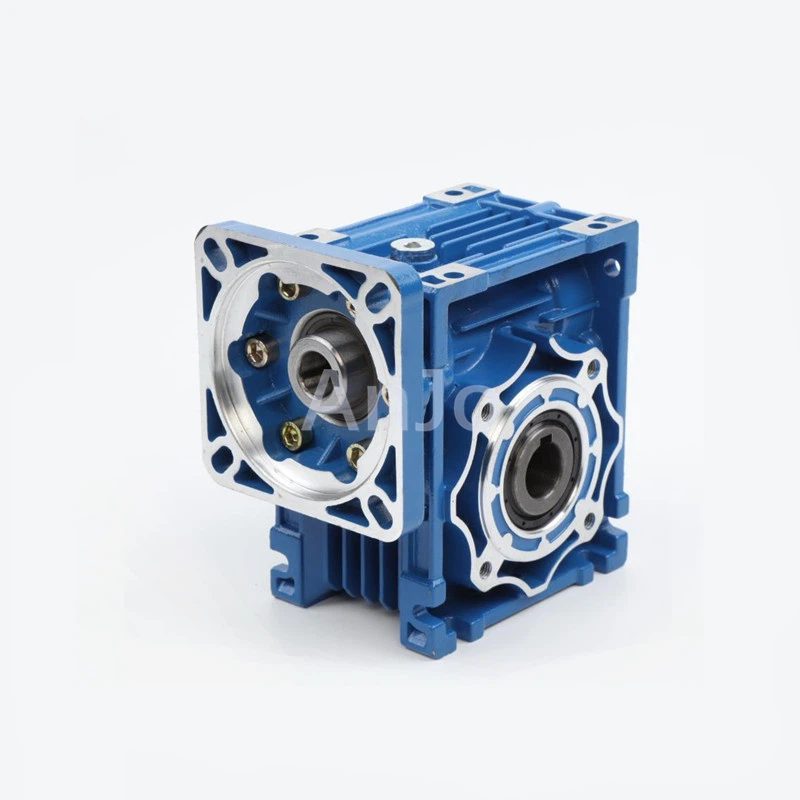

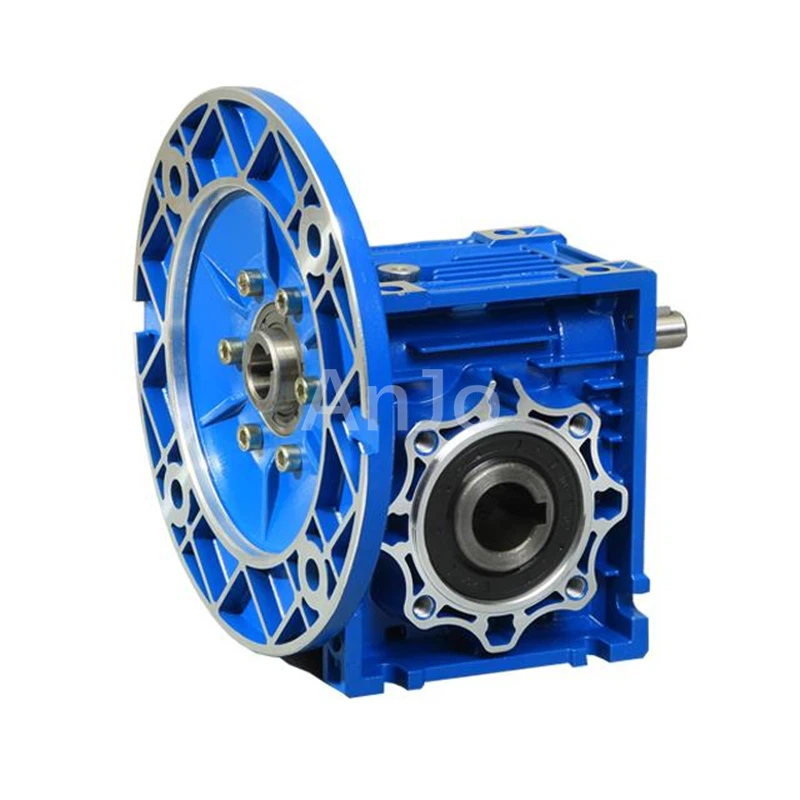

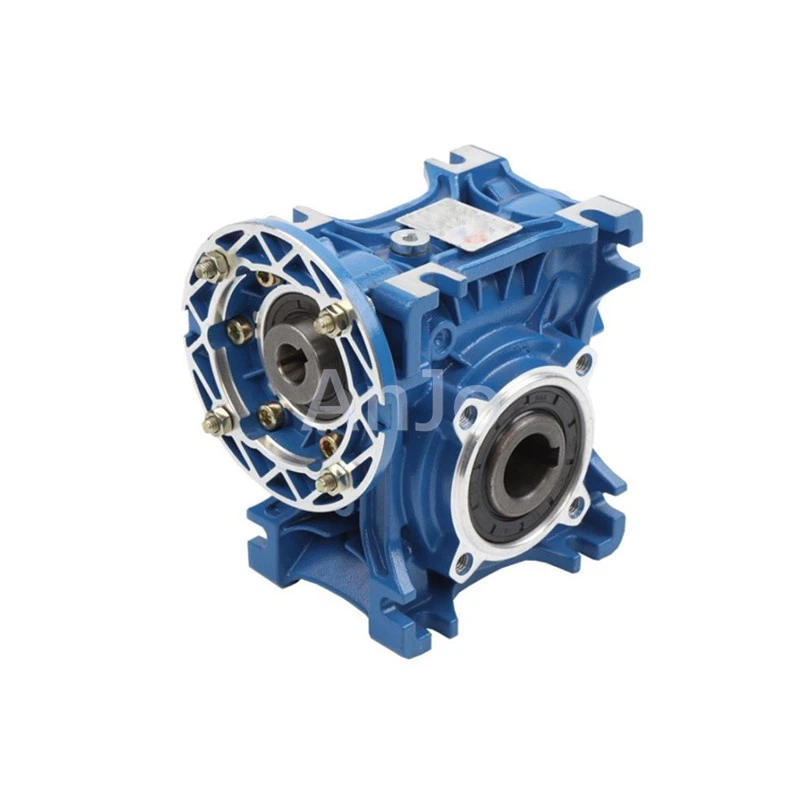

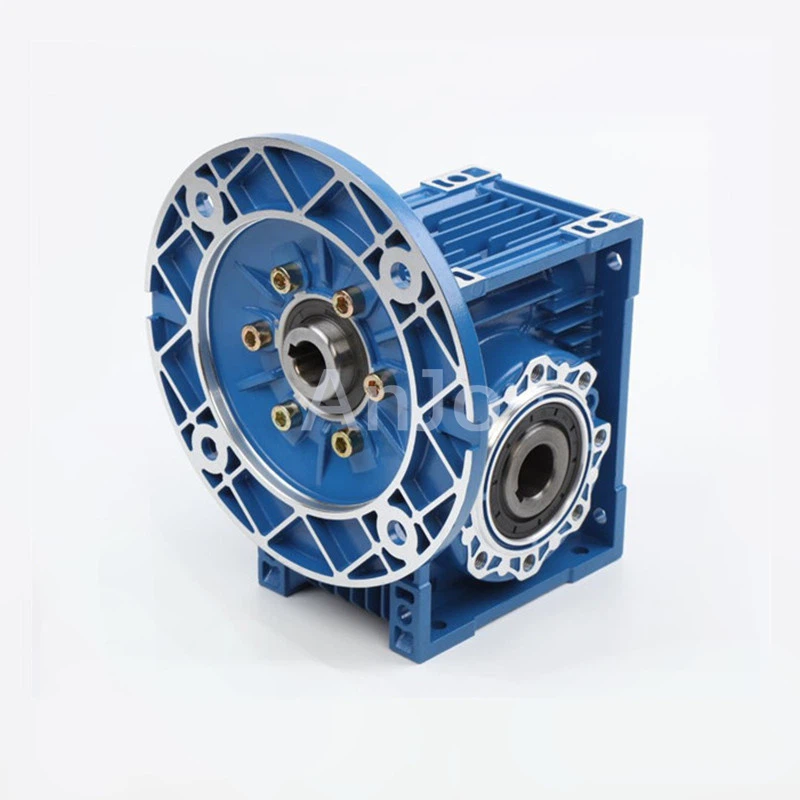

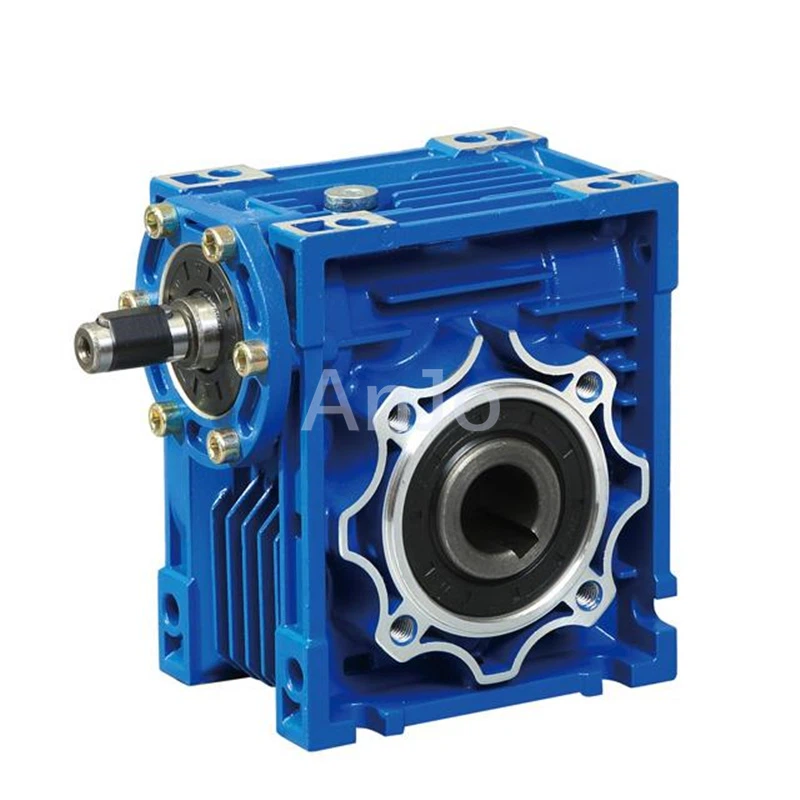

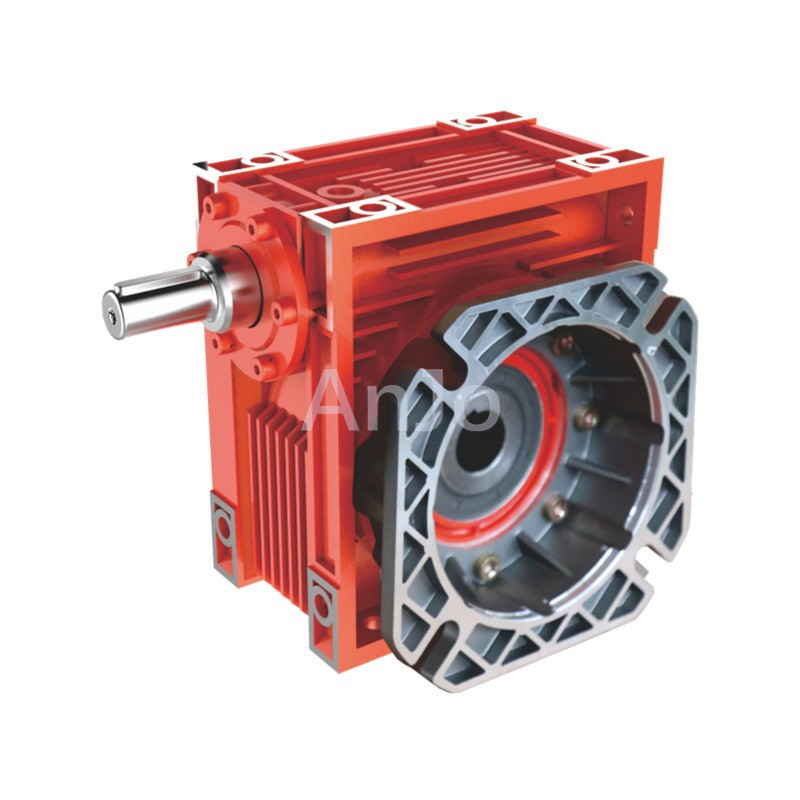

Product details display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: What should I do if the gearbox leaks oil during operation?
A: First, check if the seals are aged or damaged, then inspect whether the bolts at the box connections are loose or if the oil level is too high; replace the seals and adjust the oil level to the standard scale.
Q: Does your product come with lubricating oil?
A: Air transport without oil, sea transport with oil.
Q: How long is the warranty period for your products?
A: Our product has a one-year warranty.
