Product Characteristics
Medium-load Class With High Adaptability
With a 50mm center distance, our NMRV050 gearbox is compatible with 0.12~0.75kW motors and offers speed ratios spanning 5:1 to 100:1. It supports diverse output configurations including spline shafts and hollow shafts, enabling direct integration with medium and small-sized equipment like packaging machinery and conveyors.
Corrosion-Resistant Design & Direct Motor Compatibility
The input end of the NMRV050 is engineered to fit various standard IEC motor flanges, such as 80B14, 80B5, 71B14, 71B5, and 63B5. No custom adapters are needed, allowing quick and seamless connection to mainstream 0.12~0.75kW motors on the market, thus minimizing accessory costs during equipment assembly.
Low Backlash & Accurate Positioning Capability
Adopting a worm axial preload design, the gearbox ensures backlash ≤3 arcmin and minimal start-stop position deviation. This makes it well-suited for light-load precision applications, including labeling machines and sorting equipment that demand high positioning accuracy.
Product advantages
Exceptional Torque
Density
Our product has a rated output torque of 29-89N・m. Compared with gear reducers of the same volume, the torque is increased by 20%, which can drive small sorting and palletizing equipment.
Extended Maintenance-Free Service Life
Equipped with fully synthetic gear oil and a sealed structure, our NMRV worm gearbox supports 20,000 hours of oil-free operation, requiring only annual inspections. Its maintenance cost is 40% lower than that of comparable products.
Multi-scenario Installation Compatibility
Our NMRV050 supports foot mounting, flange mounting, and anti-rotation arm mounting. With a radial load capacity of 8000N on the output shaft, it can directly mount components such as rollers and sprockets without the need for additional support structures.

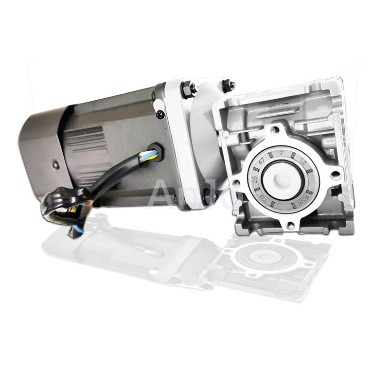

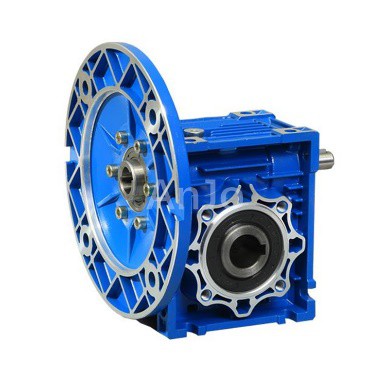

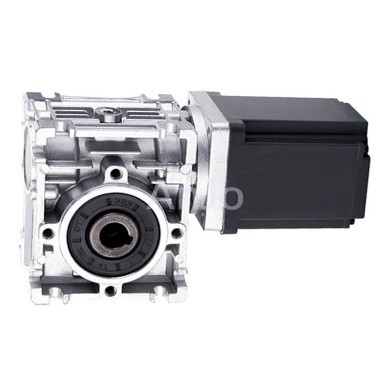

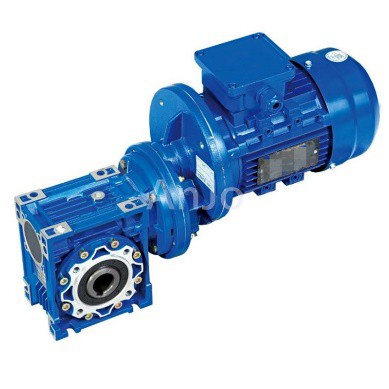

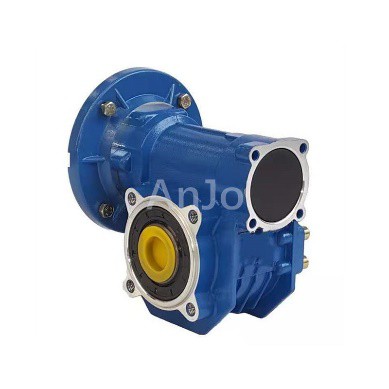

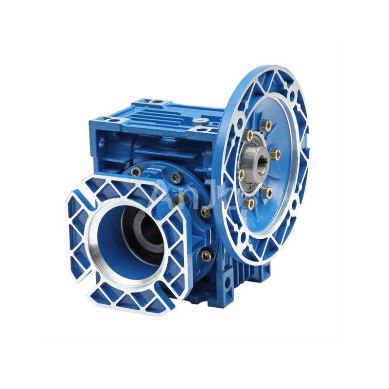

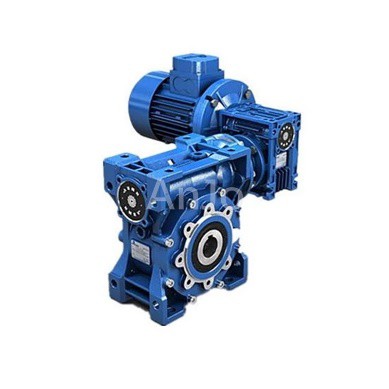

Product detail photos
Product Description
|
NMRV 050 Gearbox |
|
|
Model |
NMRV050 |
|
Power |
0.12kw ~ 0.75kw |
|
Input speed |
750rpm ~ 2000rpm |
|
Reduction ratio |
1/5 ~ 1/100 |
|
Input motor |
AC (1 phase or 3 phase) / DC / BLDC / Stepper / Servo |
|
Output shaft |
Solid shaft / Hollow shaft / Output flange… |
|
standard shaft diameter |
25mm |
|
Material of housing |
die-cast aluminum / Stainless steel |
|
Accessories |
Flange / Solid shaft / Torque arm / Cover … |
|
Origin |
Zhejiang, China |
|
Warranty: |
1 year |
|
Application |
Food Stuff, Ceramics, Chemical, Packing, Dyeing, Woodworking, Glass, etc. |
|
Package |
carton/wooden box |
|
HS codes |
8483409090 |
Partial drawing display
Product details display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: What kind of packaging does the product use?
A: Wooden boxes, cartons, or pallets that meet export packaging requirements.
Q: Can the accessories of gearboxes from different brands be used universally?
A: Standard model bearings, seals, and other general-purpose components are interchangeable; non-standard customized core components such as gears and shafts must use original factory parts.
Q: How long is the service life of the gearbox? How to extend it?
A: The designed service life is usually 8-15 years. Regular replacement of lubricating oil, avoiding overload operation, maintaining installation coaxiality, and timely cleaning of dust can effectively extend the service life.
