Product Characteristics
Compatible with international standards, with strong dimensional and interface interchangeability
Our 1HP three-phase motor strictly complies with the IEC 60034 series standards. Parameters such as frame size (e.g., 80M), installation dimensions, shaft diameter, and flange are unified worldwide. It can directly replace imported/domestic motors of the same specification, reducing equipment matching and spare parts procurement costs.
Compact structure, wide adaptation of protection and cooling
Our motors are mostly of totally enclosed fan-cooled (TEFC/IC411) and squirrel-cage rotor design, featuring small size and light weight. With a protection class of IP55 and an insulation class of F (Class B temperature rise), they are suitable for industrial environments with dust, humidity, etc., and can be installed flexibly.
Stable starting performance, suitable for light to medium load and frequent working conditions
Our IEC motors have sufficient starting torque and can be started directly or via star-delta, making them suitable for light to medium load equipment such as fans, pumps, compressors, and small gearboxes. The rotor has low inertia and fast acceleration, which is suitable for automated production lines with frequent start-stop operations.
Product advantages
High efficiency and energy saving, with low long-term operating costs
Our motors offer three energy efficiency options: IE1/IE2/IE3. They have a high electrical energy conversion rate, which can significantly reduce electricity bills compared to old motors. The VPI vacuum impregnated windings and high-quality silicon steel sheet design result in low temperature rise and small losses, extending the continuous operation time.
Easy maintenance, with minimal downtime losses
The vulnerable parts of our motors are made of better materials, and core maintenance only requires regular inspection of bearings and cooling systems. Standardized components are easy to purchase and replace, and fault diagnosis is intuitive, making them suitable for small and medium-sized factories with limited maintenance resources.
Reliable operation and strong durability
Our IEC motors feature mature electromagnetic design, with low vibration and noise (usually ≤65dB). They have built-in overload/overheating protection (such as PTC) to effectively prevent burnout. They are compatible with multiple voltage specifications such as 50/60Hz and 220/380V, have good adaptability to load fluctuations, and low failure rates.

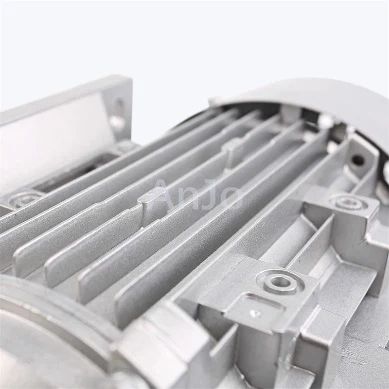

Product detail photos
Product Description
|
1hp three phase motor |
|
|
Place of Origin |
Zhejiang, China |
|
Warranty period |
12 months |
|
Brand name |
ANG Drive |
|
Model series |
MS, Y2, Frame 80 or 90 |
|
Type |
Asynchronous Motor |
|
Frequency |
50/60Hz |
|
Phase |
3 phase |
|
Power |
1hp 0.75kw |
|
Protect Feature |
Drip-proof |
|
Typical voltage |
380V, 400V, ect. |
|
Output Speed |
Constant speed or Adjustable speed |
|
Housing material |
Aluminum or Cast Iron or Stainless steel |
|
Warranty |
1 year |
|
Application |
It is suitable for adjusting compressors, small water pumps, air compressors, fans, mixers, washing machines, light conveyor belts, etc., and is applicable to civil, light industry, and small commercial scenarios without three-phase power supply. |
|
Package |
carton/wooden box |
|
HS codes |
8501510090/ 8501520000 |
Partial drawing display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: Will you provide drawings and technical services?
A: Yes, we will provide 2D and 3D drawings as well as technical support.
Q: How to pay?
A: T/T is preferred, with different currencies, including USD, EUR, RMB, etc.
Q: How will it be shipped to us?
A: We support various transportation methods such as sea freight, air freight, and railway transportation.
Hot Tags: 1hp three phase motor, China 1hp three phase motor manufacturers, suppliers, factory
