Product Characteristics
Fully Sealed Ultra-Thin Shell
Our motor adopts a die-cast aluminum alloy ultra-thin shell with a thickness of ≤5mm, a protection grade of IP54–IP65, the ratio of heat dissipation area to volume is increased by 30%, and the temperature rise during continuous operation is ≤40K.
Plug-and-Play Bus Control
Our products support multiple industrial buses, which can be directly connected without additional adaptation modules, shortening the debugging cycle.
Customized Shaft End and Flange
The flat flange of our BLDC flat gear motor has standardized hole positions, supports customized keyways/ spline shaft ends, adapts to different load connection methods, and is suitable for the rapid integration of non-standard equipment.
Product advantages
Electromagnetic compatibility
compliance
Our BLDC motor features electronic commutation without sparks, with electromagnetic radiation ≤ 30dBμV/m. It complies with the EN 55032 standard and is suitable for electromagnetic-sensitive environments such as medical imaging and radio frequency testing.
Overload soft
protection
Our BLDC gear motor has built-in electronic soft overload protection. When the load exceeds 120% of the rated value, it slows down smoothly to avoid mechanical impact and component damage, thereby reducing the failure rate of equipment.
Wide temperature range
adaptability
Our product operates within a temperature range of -25℃ to +70℃, with a low-temperature starting torque attenuation of ≤ 10%. It is suitable for extreme temperature scenarios such as outdoor portable equipment and cold chain sorting.,
Product Description
|

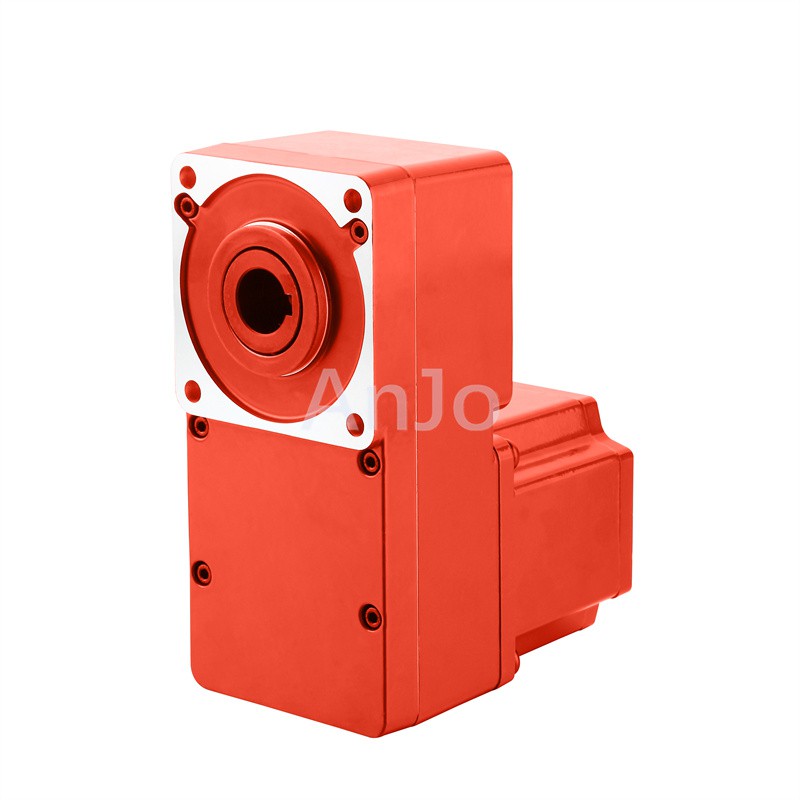

300W BLDC flat gear motor |
|
|
Wire Number |
8 wires for hall type, 3 wires for no hall type |
|
Motor diameter |
28mm ~ 166mm |
|
Speed options |
1500rpm 2000rpm 2500rpm 3000rpm 4000rpm |
|
Power range and ratio |
15W ~ 400W, it can be customized Ratio 1/5 ~ 1/200 |
|
Output shaft types |
Round shaft, keyway shaft, pinion shaft, spline shaft, etc. |
|
Voltage range |
12V 24V 36V 48V 90V 180V 220V 310V |
|
Accessories |
Internal driver, Outer driver, Hall sensor, Brake, Encoder, etc. |
|
Output flange |
B14 flanges, B5 flanges, square flanges, Nema flanges, no flanges |
|
Can be used with |
Helical gearbox, Worm gearbox, Bevel gearbox, Planetary gearbox |
|
Package |
carton/wooden box |
|
HS codes |
8501310000/8501310000 |

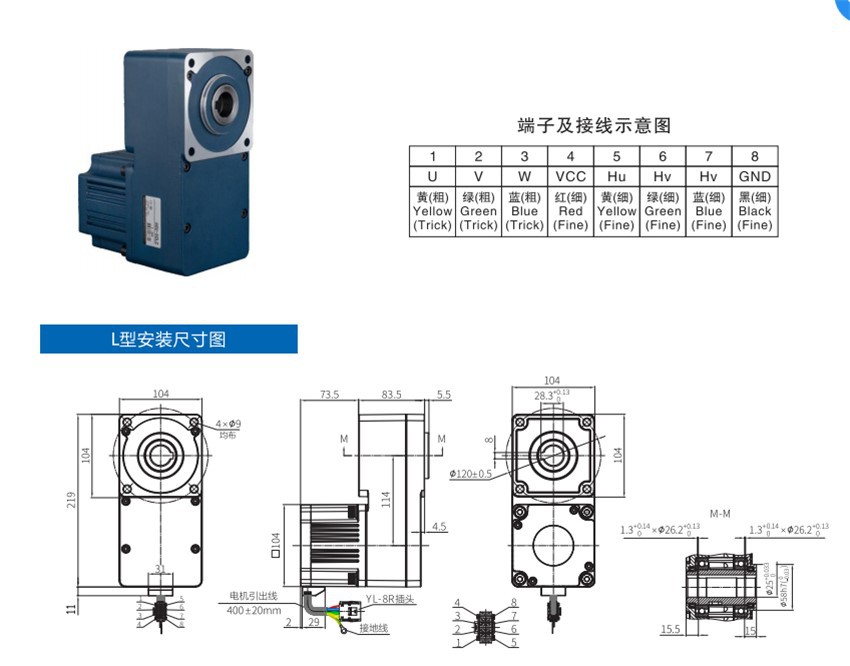

Partial drawing display
Our Advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: Do you provide samples?
A: Yes, we support purchasing sample orders for testing.
Q: Will you provide drawings and technical services?
A: Yes, we will provide 2D and 3D drawings as well as technical support.
Q: How can I contact to place an order?
A: You can send an inquiry directly, and our sales staff will contact you promptly.
