Product Characteristics
Simple installation and convenient maintenance

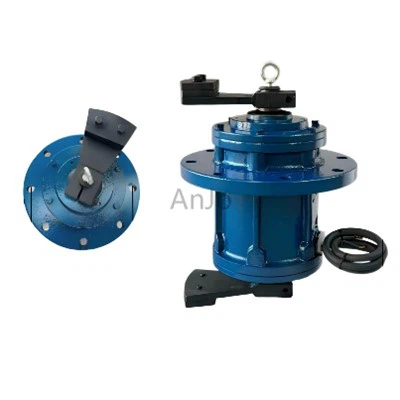

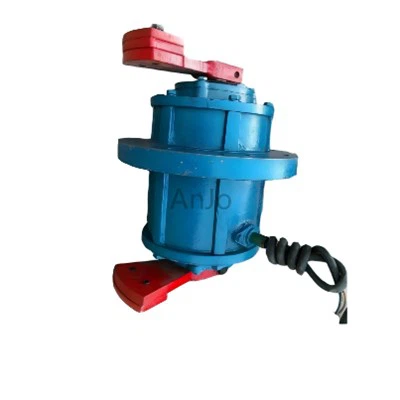

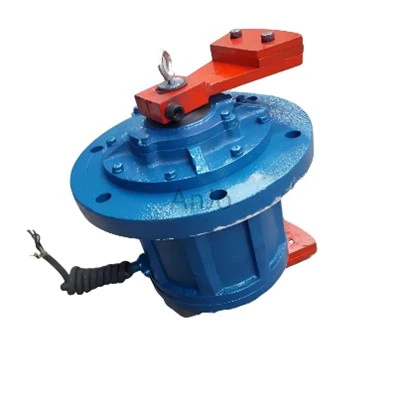

Our YZUL vibration motor adopts a single-flange vertical structure, making installation and maintenance convenient. It can reduce the weight of the host machine, reduce the overall size, and simplify the design of the entire machine.
Adaptable to various situations
The two ends of the rotor shaft of our vibration motor are equipped with adjustable eccentric blocks, and the exciting force can be steplessly/steplessly adjusted as needed, adapting to different material processing trajectories and speeds.
High protection level
Our motor features a high-protection sealing design, combined with specially made vibration-resistant bearings and electromagnetic parameters suitable for vibration working conditions. It is resistant to high dust and humidity, and the temperature rise during continuous operation is controllable.
Product advantages
Low energy consumption and high efficiency
Our YZUL motor starts quickly and runs smoothly, which can effectively improve the processing capacity and accuracy of equipment such as screening and feeding, crushing and mixing equipment.
High reliability and long service
life
The sealing and bearing design of our motor ensures long-term stable operation under harsh working conditions and reduces downtime and maintenance costs.
Wide
adaptability
Our vibration motor can generate circular/elliptical composite vibration, which is suitable for various vibration equipment such as rotary vibrating screens, cleaning machines, mixing machines, etc., with flexible application scenarios.

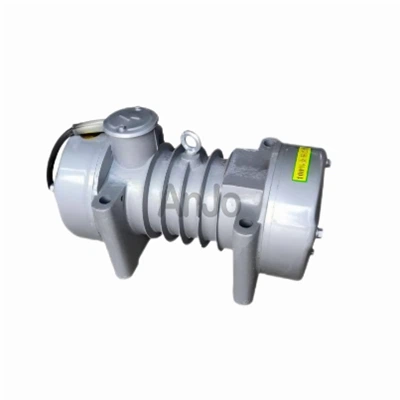

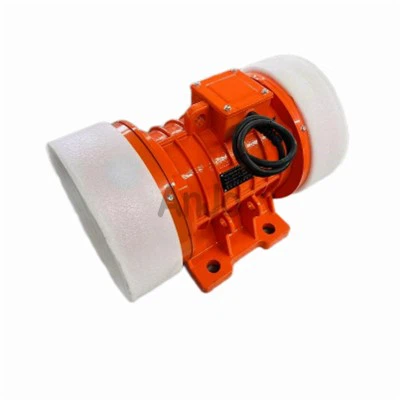

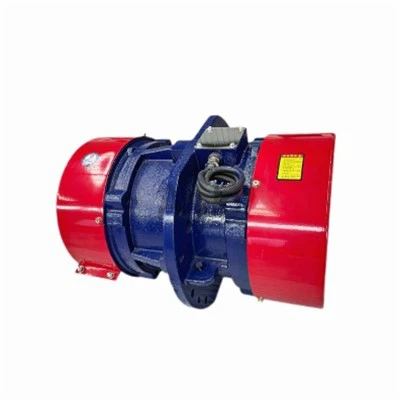

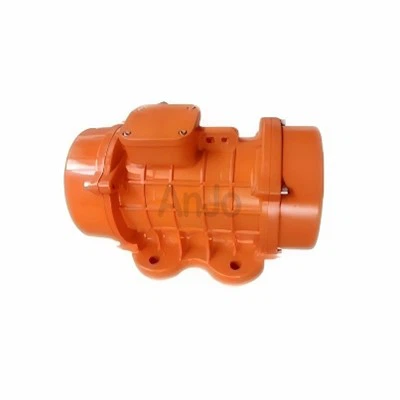

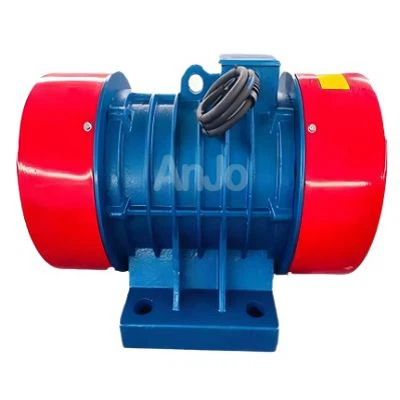

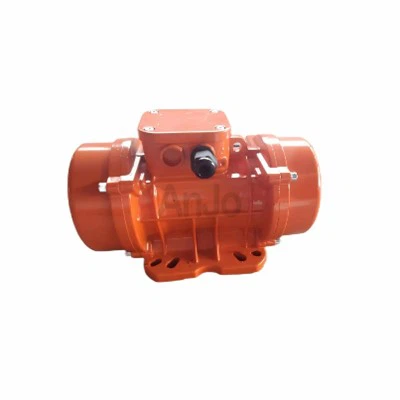

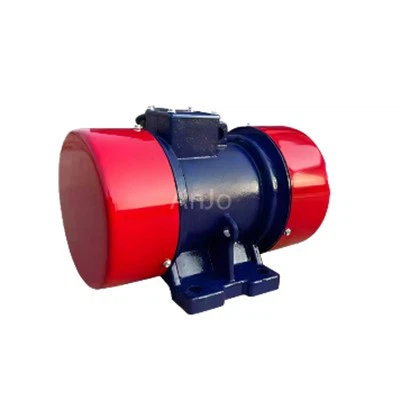

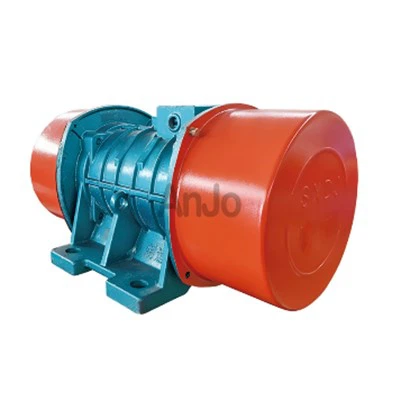

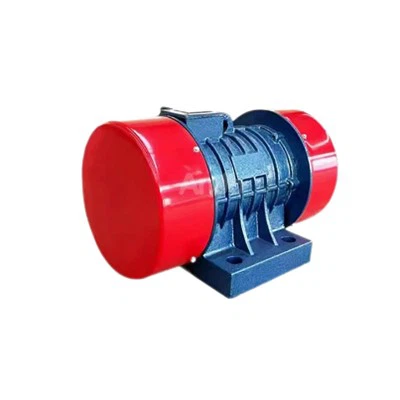

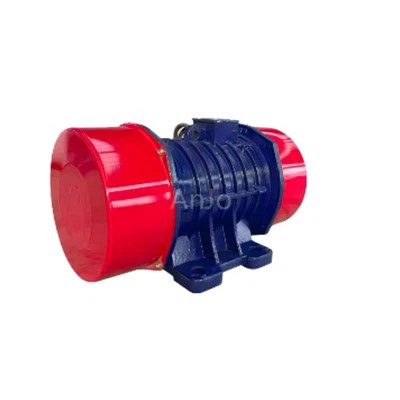

Product detail photos
Product Description
|
YUZL vibration motor |
|
|
Model Type |
YUZL |
|
Phase |
Three phase |
|
Vibratory Force |
3000-50000N |
|
Rated Power |
0.12-2.2KW |
|
Speed |
1450RPM |
|
Rated Voltage |
220/380V/400V/660V |
|
Duty |
S1 |
|
Frequency |
50HZ/60 HZ |
|
Protection Class |
IP55 |
|
Insulation Class |
B/F/H |
|
Quality Assurance |
One year |
|
Place of origin |
China |
|
Packaging |
carton/wooden box |
|
HS code |
8501510090 |
YZUL Vibration Motor Maintenance Schedule
|
Maintenance Task |
Frequency |
Key Points |
|
Check & Tighten Bolts |
Daily / Weekly |
Prevents loosening and structural damage. |
|
Visual & Noise Inspection |
Daily |
Early detection of abnormalities. |
|
Bearing Lubrication |
500 - 1,500 hours |
Use high-temperature lithium grease. Grease while running. |
|
Tighten Eccentric Blocks |
Monthly / Quarterly |
Ensure all locking bolts are secure. |
|
Insulation Resistance Check |
After long-term storage |
Ensure windings are dry and insulation is intact. |
Partial drawing display
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: What does the protection level (IP rating) of a motor mean? What protection levels do you have?
A: The IP rating consists of the dust protection level (the first digit) and the water protection level (the second digit). We have IP55, IP65, and IP69K protection ratings.
Q: What is the difference between a three-phase motor and a single-phase motor? How to choose?
A: Three-phase motors have a wide power range, stable operation, and high efficiency, making them suitable for large industrial equipment; single-phase motors have lower power, are suitable for household or small equipment, and require a 220V single-phase power supply; you can choose according to the equipment power and on-site power supply conditions.
Q: Is it normal for a motor to heat up during operation? What temperature is considered excessive?
A: When the motor is running, the windings will generate a certain amount of heat. If the temperature of the housing is too high, or if it is accompanied by an unusual smell or noise, the motor must be shut down immediately for inspection to check for issues such as overload and poor heat dissipation.
