Description

Technical Parameters

Product Characteristics

Lightweight + Full-scenario Adaptation

Our NMRV040 gearbox adopts a high-strength aluminum alloy cast casing, weighing only 2.3 kg (much lighter than cast iron models), and supports all-round installation methods such as foot mounting, flange mounting, and torque arm mounting, making it suitable for equipment integration scenarios with limited space.

High Stability + Wide Working Condition Compatibility

Our NMRV gearbox features a single-stage worm and worm gear transmission structure, with a transmission accuracy of ±0.5% and an operating noise of ≤55dB; it has an IP55 protection rating, allowing long-term continuous operation in harsh environments such as dust and oil pollution, and also has a mechanical self-locking function (when the transmission ratio is ≥1:20).

Wide Parameter Coverage

The NMRV040 gearbox is compatible with motor powers ranging from 0.09kW to 0.75kW, with rated output torques from 7.6N・m to 53N・m and a speed ratio range of 5-100, which can meet the multi-speed requirements under medium and low loads.

Product advantages

Stronger Adaptability To Customized Scenarios

We support customized speed ratios and shaft diameters, and use aluminum bronze worm gears with no heavy metal pollution, which can be directly used in clean industries such as food and medical industries without additional modifications.

Lower Maintenance
Costs

Our products all use standardized imported accessories, no special tools are required for daily maintenance, and they are pre-filled with fully synthetic lubricating oil, so no additional oil replenishment is needed in all installation orientations.

Higher
Performance

The rated output torque is 15% higher than the industry standard (the maximum allowable torque reaches 53N・m), and the radial load-carrying capacity is 3118N, making it more reliable for adapting to short-term overload conditions.

Product detail photos

NMRV reducer with B5 input flange

NMRV gear reducer with square input flange

NMRV gearbox with B14 input flange

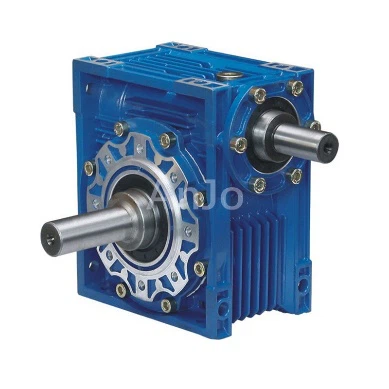

NRV with input and output shaft

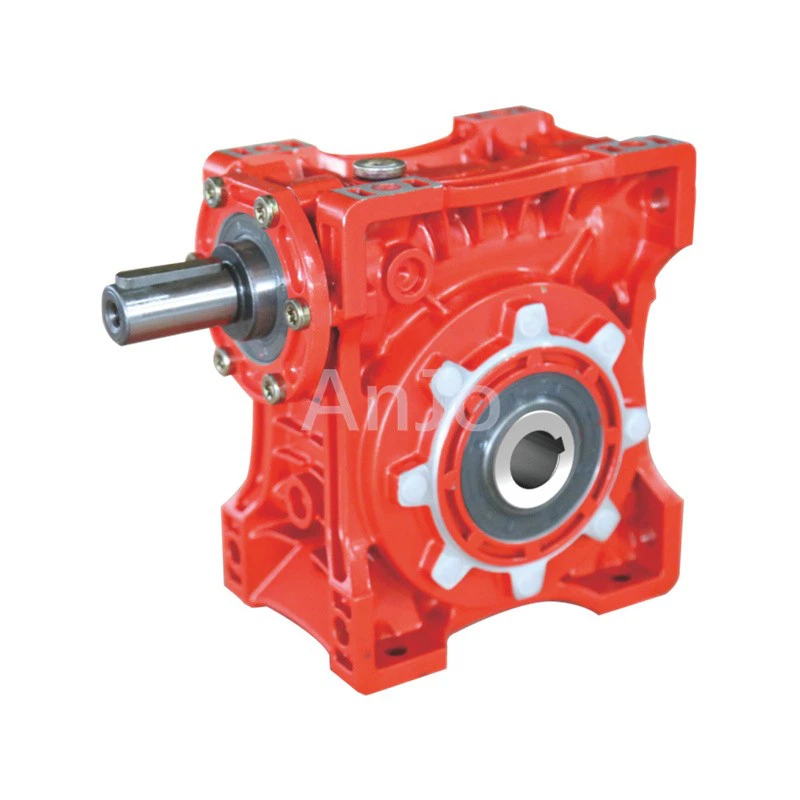

NRV worm gearbox

NRMV reducer

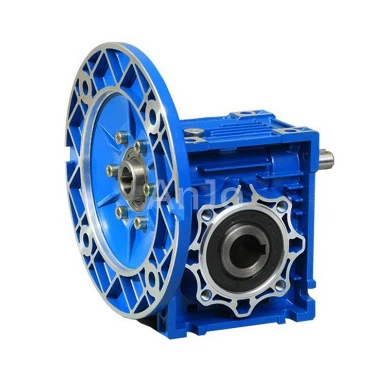

NMRV gearbox with output flange

NMRV worm reducer with torque arm

Gearbox with B5 flange and output shaft

Bipolar NMRV

Double Stage NMRV Worm Gear Reducer

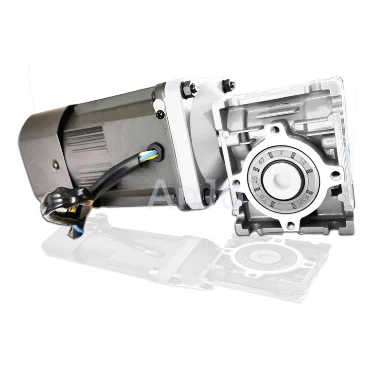

NMRV gearbox and motor

VF gearbox with B14

VF reducer with B5 input flange

VF worm gearbox

NMRV and motor

AC gear motor

NMRV gearbox and AC electric motor

NMRV gearbox and DC motor

Right-angle reducer

NMRV reducer and DC motor

Product Description

NMRV 040 Gearbox
Model	NMRV040
Power	0.09kw ~ 0.75kw
Input speed	750rpm ~ 2000rpm
Reduction ratio	1/5 ~ 1/100
Input motor	AC (1 phase or 3 phase) / DC / BLDC / Stepper / Servo
Output shaft	Solid shaft / Hollow shaft / Output flange…
Standard shaft diameter	18mm
Material of housing	die-cast aluminum / Stainless steel
Accessories	Flange / Solid shaft / Torque arm / Cover …
Application	Food Stuff, Ceramics, Chemical, Packing, Dyeing, Woodworking, Glass, etc.
Place of origin	China
Package	carton/wooden box
HS codes	8483409090
