Product Characteristics
Fractional horsepower and lightweight design, suitable for small equipment
Our vibration motors have power ranging from 0.12 kW to 1.5 kW, which are in the low-power range. The motor body adopts a compact structural design, featuring small size and light weight. It can be directly embedded in small fans, pumps, household appliances, and automated actuators without occupying too much installation space.
Compatible with multiple installation methods, with flexible adaptability
Our vibration motors support various standard installation forms such as B3 foot mounting, B5 flange mounting, and B14 face mounting. The shaft extension size conforms to international general specifications, which can directly replace the same type of imported or domestic fractional horsepower motors, reducing equipment transformation costs.
Wide voltage/wide frequency adaptation, with strong universality
Our motors can be customized with multiple voltage versions such as single-phase 220V and three-phase 380V. Some models support 50/60Hz dual-frequency operation, which can adapt to the power grid standards of different countries and regions. They are especially suitable for supporting export-oriented small household appliances and small industrial equipment.
Product advantages
Excellent starting performance, stable startup even at low voltage
Our VB vibration motor adopts an optimized electromagnetic winding design, with large starting torque and small starting current. Even under the working condition of voltage fluctuation of ±10%, it can start smoothly and run with load, avoiding startup failure or motor burnout caused by unstable voltage.
Low operating noise, suitable for quiet scenarios
Our VB vibration motor uses high-precision silent bearings and rotor dynamic balance correction technology, with an operating noise of ≤55dB (under rated working conditions), which is much lower than ordinary motors of the same power. It is suitable for noise-sensitive scenarios such as household equipment, laboratory instruments, and medical devices.
High cost performance and convenient maintenance
Our production process is mature, and the standardization degree of components is high. The overall purchase cost is more than 40% lower than that of servo motors of the same power. In addition, the structure is simple, there are few fault points, and daily maintenance only requires regular inspection of bearing lubrication, which greatly reduces the use cost.

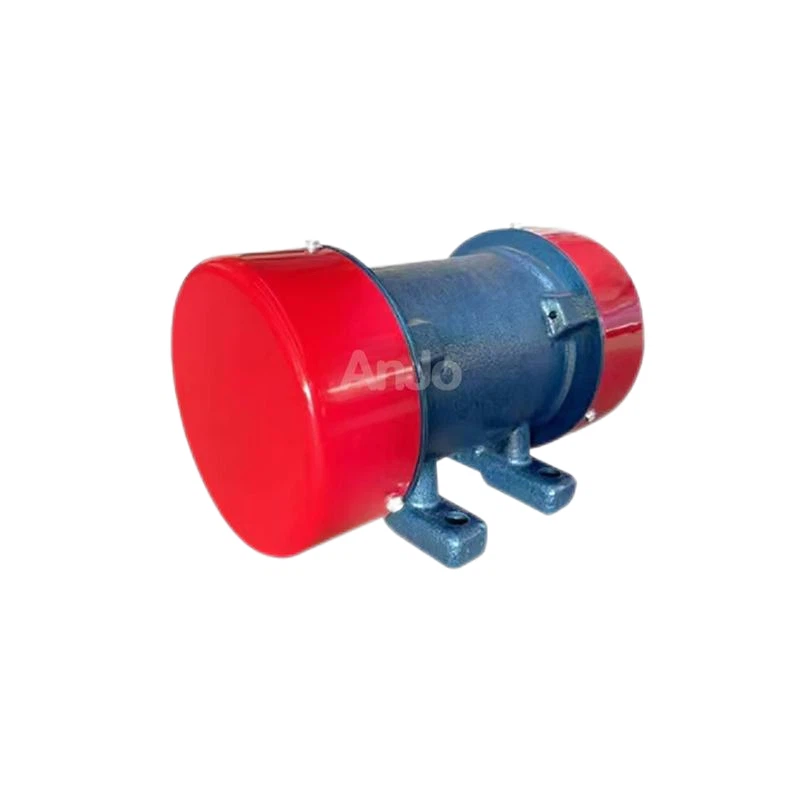

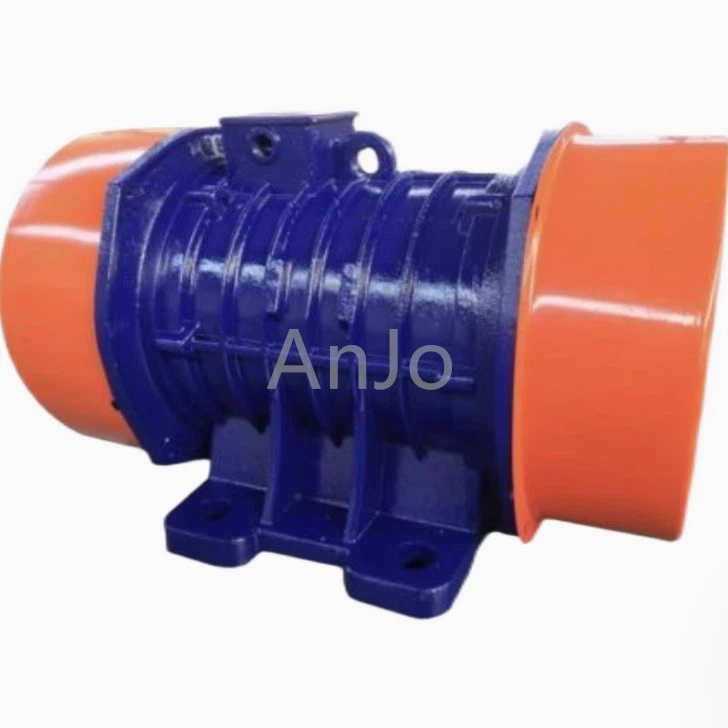

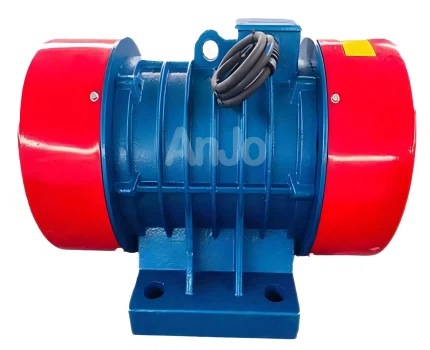

Product detail photos
Product Description
|
VB vibration motor |
|
|
Model Type |
VB |
|
Phase |
3 phase |
|
Vibratory Force |
3-200KN |
|
Rated Power |
0.2-15KW |
|
Speed |
3000/1500/1000/900 RPM |
|
Rated Voltage |
220/380V/400V/660V |
|
Duty |
Continuous S1 |
|
Frequency |
50/60 HZ |
|
Protection Class |
IP54/IP55 |
|
Insulation Class |
B/F/H |
|
Quality Assurance |
One year |
|
Place of origin |
Zhejiang , China |
|
Packaging |
carton/wooden box |
|
HS code |
8501510090/8501520000 |
VB Vibration Motor Maintenance Schedule
|
Maintenance Task |
Frequency |
Key Points |
|
Check & Tighten Bolts |
Daily / Weekly |
Prevents loosening and structural damage. |
|
Visual & Noise Inspection |
Daily |
Early detection of abnormalities. |
|
Bearing Lubrication |
Every 500 - 1,500 hours |
Use high-temperature lithium grease. Grease while running. |
|
Tighten Eccentric Blocks |
Monthly / Quarterly |
Ensure all locking bolts are secure. |
|
Insulation Resistance Check |
After long-term storage |
Ensure windings are dry and insulation is intact. |

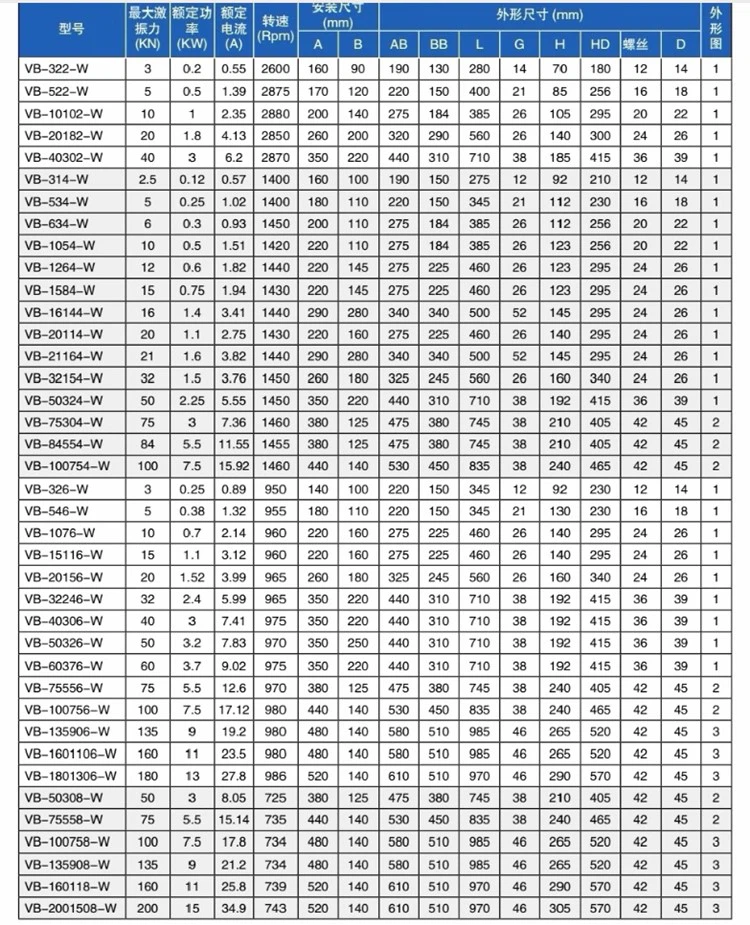

Partial drawing display
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: Do your motor products have a warranty? How long is the warranty period?
A: Yes, our product has a one-year warranty.
Q: How to select a suitable motor based on my equipment?
A: You can provide the product nameplate or parameters such as the power, speed, voltage, and working environment of the equipment, and our technical team will accurately match the model for you.
Q: Does your company's motors support customization? What is the approximate customization cycle?
A: Customization is supported, and parameters such as voltage, rotation speed, installation dimensions, and protection level can be adjusted according to customer needs; the delivery time for customized products is generally 35-45 days.
