Product Characteristics
Suitable for medium-load torque with strong impact resistance
Our 2HP three-phase IEC motor has a rated torque of up to 9.55N・m and a torque reserve coefficient of ≥1.8, which can smoothly handle short-term load impacts of small mixers and material hoists. There is no need to install additional torque compensation devices, making it suitable for medium-load start-stop working conditions.
Wide voltage and wide frequency compatibility, excellent cross-border adaptability
Our IEC motor is equipped with standard 380V/400V/415V voltage switching terminals, compatible with 50Hz/60Hz grid frequencies, meeting the industrial electricity standards in Europe, America, Southeast Asia and other regions. It can be used for supporting export equipment without customized modification.
Reserved function expansion interface for flexible transformation
The 90S/90L frame of our 2HP three-phase motor reserves installation positions for encoders and brakes, which can be quickly upgraded to variable frequency brake motors or simple servo motors, adapting to the later speed regulation and positioning transformation needs of automated production lines.
Product advantages
Single motor replaces dual-motor parallel connection, reducing costs and increasing efficiency
Our 2HP motor has an equivalent high output power, with a procurement cost 20%–30% lower than that of the dual-motor solution. At the same time, it reduces wiring nodes and installation space, lowers equipment failure rates, and is suitable for cost optimization of single-drive workstations.
Wide-range speed regulation + high torque at low speed, with wide process adaptability
Our motor, when paired with a frequency converter, can achieve stable speed regulation from 5–50Hz. At a low speed of 5Hz, the torque retention rate is ≥80%, which can meet the low-speed constant torque requirements of small conveyor belts and winding equipment.
Enhanced heat dissipation design, stable and reliable under long-term heavy load
Our IEC motor features a widened frame + high-density cooling fins, with heat dissipation efficiency 30% higher than ordinary products. Under S1 continuous working system, the temperature rise during full-load operation is ≤60K, and it can work continuously and stably for more than 8000 hours, reducing the frequency of overheating shutdowns.

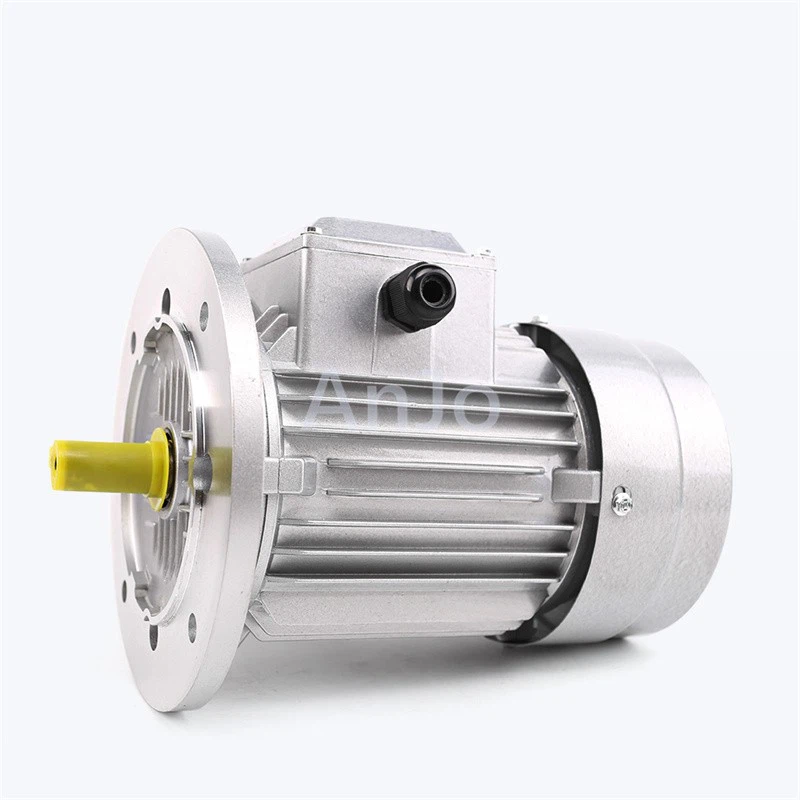

Product detail photos
Product Description
|
2 hp three phase motor |
|
|
Place of Origin |
Zhejiang, China |
|
Warranty period |
12 months |
|
Brand name |
ANG Drive |
|
Model series |
MS, Y2, Frame 90 |
|
Type |
Asynchronous Motor |
|
Frequency |
50/60Hz |
|
Phase |
3 phase |
|
Power |
2hp 1.5kw |
|
Protect Feature |
Drip-proof |
|
Typical voltage |
380V , 400V ,ect. |
|
Output Speed |
Constant speed or Adjustable speed |
|
Housing material |
Aluminum or Cast Iron or Stainless steel |
|
Warranty |
1 year |
|
Application |
It is suitable for adjusting compressors, small water pumps, air compressors, fans, mixers, washing machines, light conveyor belts, etc., and is applicable to civil, light industry, and small commercial scenarios without three-phase power supply. |
|
Package |
carton/wooden box |
|
HS codes |
8501510090/ 8501520000 |
Partial drawing display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: How to confirm that the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I visit the factory?
A: Yes, you are welcome at any time.
Q: How can I contact to place an order?
A: You can send an inquiry directly, and our sales staff will contact you promptly.
Hot Tags: 2hp three phase motor, China 2hp three phase motor manufacturers, suppliers, factory
