Product Characteristics
Integral Cast Iron Box Structure
Our WPX gearbox adopts an integral casting forming process, with a strong and regularly shaped box body, which can stably support internal transmission components, ensure transmission accuracy, and withstand vibration and impact during daily operation.
Standardized Input And Output Interfaces
The input shaft of our gearbox supports single/double input and direct connection with motor flanges. The output shaft includes single/double output and hollow output forms, which can be directly matched with most general motors and equipment on the market, with strong interchangeability.
Multiple Asymmetric Box Structures
Our WP gearbox adopts an eccentric box layout, which optimizes the proportion of internal transmission space. Compared with the symmetric structure, it can effectively shorten the axial length of the whole machine and is suitable for narrow installation scenarios.
Product advantages
Low Temperature Rise And Low Energy Consumption
Our products control the overall operating temperature rise within 25℃ by optimizing the tooth surface meshing parameters and forced lubrication system. The transmission efficiency is 5%~8% higher than that of traditional models, reducing long-term operating energy consumption.
Customized Adaptation
Flexibility
All our products support adjusting the shaft diameter, flange size and installation direction according to customer needs, and can quickly match various power sources such as servo motors and stepping motors, shortening the equipment development cycle.
Strong Versatility Of
Components
Our worm gears are manufactured in strict accordance with international standards, and accessories such as bearings and oil seals are also standard parts with good compatibility, which not only facilitates production and assembly, but also provides convenience for subsequent replacement of accessories.
Product detail photos
WP series product detail photos
Product Description
|
WPX gearbox |
|
|
Type |
WP Reducer |
|
Model |
WPX 40~WPX 250 |
|
Brand name |
ANG DRIVE |
|
Color |
Blue/Green or on request |
|
Ratio |
10-60 |
|
Input power |
0.12-33kw(Under the case of input speed 1500rpm) |
|
Output torque |
6-6025N.m |
|
Output shaft |
Hollow shaft/Solid shaft |
|
Material of housing |
Cast iron |
|
Bearing |
C&U, NSK, SKF or specified |
|
Seal |
CTY, CFW, SKF or specified |
|
Origin |
Zhejiang, China |
|
Warranty |
1 year |
|
Application |
Multiple industries such as food, chemical engineering, pharmaceuticals, metallurgy, and mining |
|
Package |
carton/wooden box |
|
HS codes |
8483900090 |

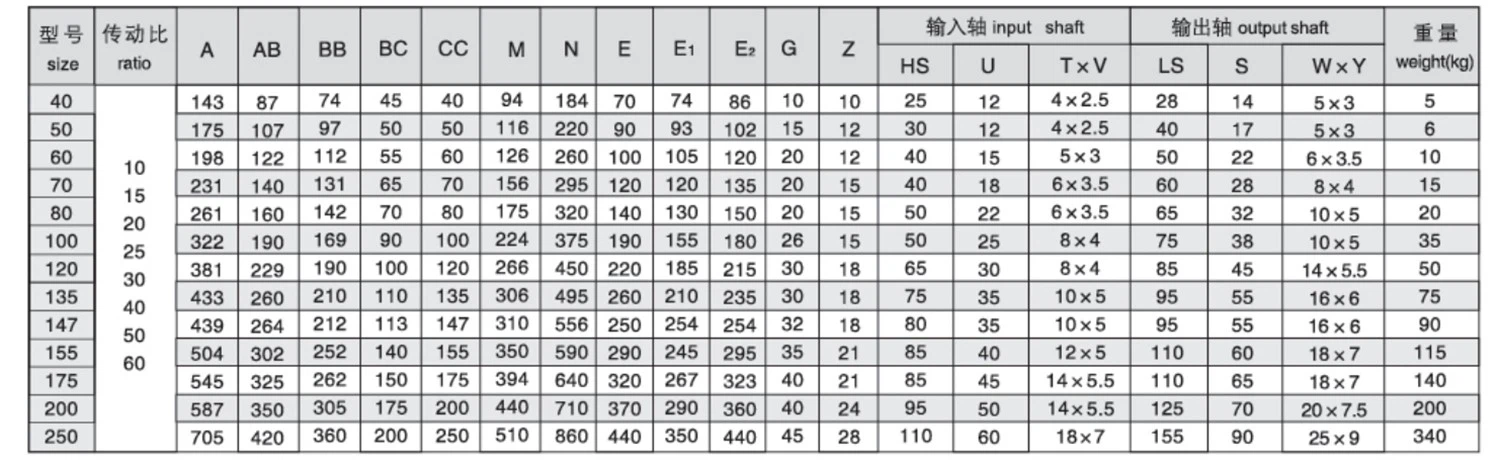

Partial drawing display
Product details display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: How shall we contact you?
A: You can send an inquiry directly, and we will respond within 24 hours.
Q: What kind of packaging does the product use?
A: Wooden boxes, cartons, or pallets that meet export packaging requirements.
Q: Can the accessories of gearboxes from different brands be used universally?
A: Standard model bearings, seals, and other general-purpose components are interchangeable; non-standard customized core components such as gears and shafts must use original factory parts.
