Product Characteristics
Integrated Hall closed-loop control
Our BLDC square gear motor is built with a high-precision Hall sensor, which provides real-time feedback of speed and position signals. It supports three control modes: speed, torque, and position, and can be directly connected to PLCs and drivers to achieve automated joint control.
Lightweight and high-strength alloy housing
Our motor features a square body and die-cast aluminum alloy material, which offers high strength. Compared with cast iron housings, it is lighter while having excellent heat dissipation performance, preventing shutdown due to high temperatures.
Instant forward-reverse switching design
Our BLDC square gear motor supports millisecond-level forward-reverse switching through optimized electromagnetic commutation logic. It has no commutation sparks or mechanical wear, making it suitable for high-frequency commutation working conditions such as sorting equipment and manipulators.
Product advantages
Quick installation without
calibration
Our product features a square flange with standardized hole positions, supporting three installation methods: flange, foot, and shaft mounting. It can be used immediately without additional calibration, shortening the equipment assembly cycle.
Automatic overload
protection
Our motor has a built-in electronic overload protection module. When the load exceeds 150% of the rated value, it will automatically stop, preventing damage to the motor and gearbox due to overload and reducing equipment failure rates.
Stable operation in a wide temperature range
Our product operates within a temperature range of -20℃ to +60℃. It starts without stutter in low-temperature environments and has high heat dissipation efficiency in high-temperature environments, making it suitable for extreme working conditions such as outdoor photovoltaic equipment and cold chain storage.

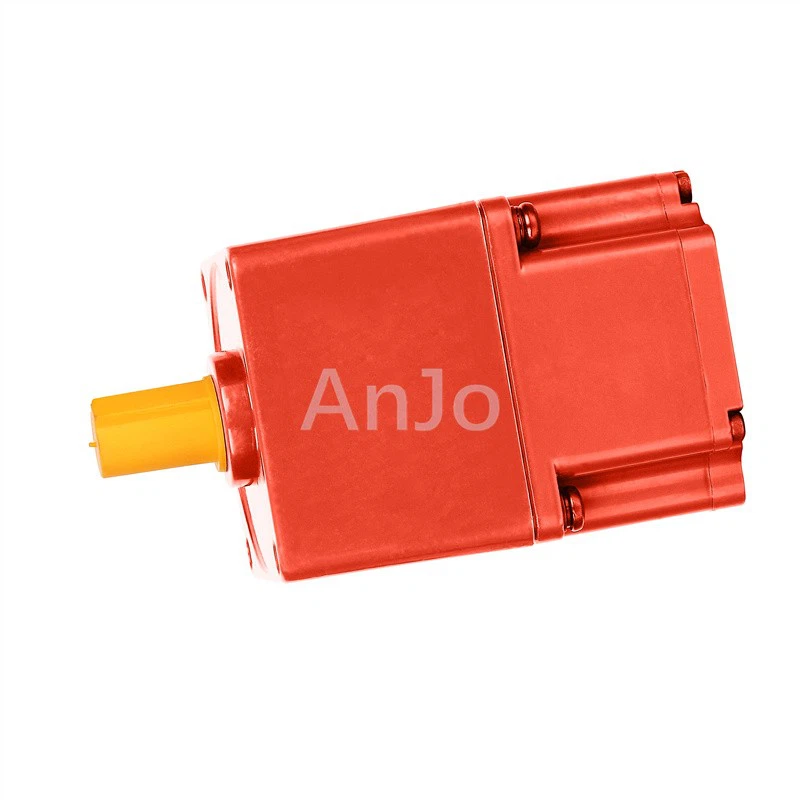

Product detail photos
Product Description
|
100W BLDC square gear motor |
|
|
Wire Number |
8 wires for hall type, 3 wires for no hall type |
|
Motor diameter |
28mm ~ 166mm |
|
Speed options |
1500rpm 2000rpm 2500rpm 3000rpm 4000rpm |
|
Power range and ratio |
10W ~ 4200W, it can be customized Ratio 1/3 ~ 1/200 |
|
Output shaft types |
Round shaft, keyway shaft, pinion shaft, spline shaft, etc. |
|
Voltage range |
12V 24V 36V 48V 90V 180V 220V 310V |
|
Accessories |
Internal driver, Outer driver, Hall sensor, Brake, Encoder, etc. |
|
Output flange |
B14 flanges, B5 flanges, square flanges, Nema flanges, no flanges |
|
Can be used with |
Helical gearbox, Worm gearbox, Bevel gearbox, Planetary gearbox |
|
Package |
carton/wooden box |
|
HS codes |
8501310000/8501310000 |
Partial drawing display
Our Advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: Does the product support customization?
A: All our products support customization, including customization of shaft diameter, shaft length, color, flange, packaging, etc.
Q: Can I pay in installments?
A: Yes, for sample orders, 100% payment is required in advance. For bulk orders, 30% advance payment is supported, and the remaining amount should be paid after the goods are produced.
Q: What certifications do your motors have?
A: Our products have various certifications such as CE certification, ISO certification, and COC.
