Product Characteristics
Wide Voltage Adaptive Input
Our motor supports a wide voltage input range of 12–48V DC, which is compatible with power supply systems of different devices. It can still operate stably within a voltage fluctuation of ±10%, making it suitable for mobile and portable industrial equipment.
Optional Modular Gearbox
Our square gearbox supports the selection of multiple tooth types, including planetary, helical, and worm gears. The reduction ratio covers 3–200 with multi-level adjustment, meeting the dual requirements of precise positioning and high torque output.
High Protection Level
The square housing of our motor adopts a fully sealed structure design, and the wiring port is equipped with a waterproof connector, which has good dustproof and waterproof performance and can withstand harsh industrial environments such as humidity and dust.
Product advantages
Ultra-low energy consumption in standby mode
The no-load standby power consumption of our motor is ≤0.5W, which reduces the standby energy consumption by 80% compared with traditional brushed gear motors. It is suitable for energy-saving scenarios such as battery-powered inspection robots and portable devices.
Precise constant torque
output
Our motor has a small torque fluctuation rate in the full speed range, no crawling phenomenon during low-speed operation, and high positioning repeatability, meeting the process requirements of precision assembly and testing equipment.
No electromagnetic
interference
The electronic commutation of our motor has no brush sparks, and the electromagnetic radiation is far lower than the limit value of the national standard GB 17625.1. It can be directly used in electromagnetic sensitive environments such as medical instruments and radio frequency detection.
Product detail photos
Product Description
|

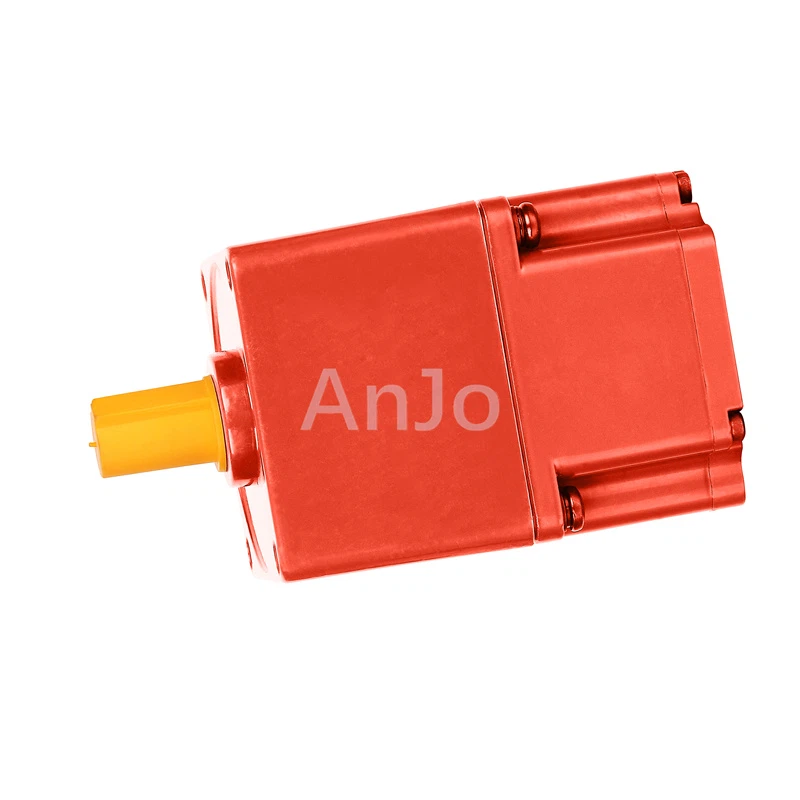

200W BLDC square gear motor |
|
|
Wire Number |
8 wires for hall type, 3 wires for no hall type |
|
Motor diameter |
28mm ~ 166mm |
|
Speed options |
1500rpm 2000rpm 2500rpm 3000rpm 4000rpm |
|
Power range and ratio |
10W ~ 4200W, it can be customized Ratio 1/3 ~ 1/200 |
|
Output shaft types |
Round shaft, keyway shaft, pinion shaft, spline shaft, etc. |
|
Voltage range |
12V 24V 36V 48V 90V 180V 220V 310V |
|
Accessories |
Internal driver, Outer driver, Hall sensor, Brake, Encoder, etc. |
|
Output flange |
B14 flanges, B5 flanges, square flanges, Nema flanges, no flanges |
|
Can be used with |
Helical gearbox, Worm gearbox, Bevel gearbox, Planetary gearbox |
|
Package |
carton/wooden box |
|
HS codes |
8501310000/8501310000 |
Partial drawing display
Our Advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: How to confirm that the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I visit the factory?
A: Yes, you are welcome at any time.
Q: How can I contact to place an order?
A: You can send an inquiry directly, and our sales staff will contact you promptly.
