Products Introduction
The 15W Brushless DC Planetary Gear Motor is a 24V low-power coaxial drive component with 42/45mm standard frame, combining brushless DC motor and multi-stage planetary reducer, which delivers stable low-speed high torque with low noise, low heat and tiny backlash, and supports customized gear ratio, shaft, voltage and wire length for small automation equipment.
Product Characteristics
High transmission efficiency and energy saving
The brushless motor body of our brushless DC planetary gear motor adopts electronic commutation, eliminating carbon brush friction loss, with an energy conversion efficiency of 85%–95%; combined with the coaxial transmission structure of the planetary gearbox, the gears mesh closely, with transmission loss as low as 3%–5%. The overall system efficiency is much higher than the combination of brushed motor + ordinary gearbox, which can significantly reduce energy consumption costs during long-term operation.
High torque density and compact structure
The multi-tooth meshing design of our planetary gears can output large torque in a small volume. Combined with the miniaturization advantage of the brushless motor, the overall torque density of the motor is high, which can meet the needs of industrial equipment, robots and other scenarios with limited installation space. At the same time, it has strong load capacity and excellent operation stability.
Long service life and low maintenance cost
The brushless structure of our brushless DC planetary gearmotor has no carbon brush wear and spark problems, and the motor life can reach 10000–20000 hours; the gears of the planetary gearbox are made of high-strength alloy materials, with little wear and impact resistance, and no need for frequent lubricating oil replacement, which greatly reduces equipment downtime for maintenance and lowers long-term use costs.
Product advantages
Precise speed regulation and strong
controllability
Our product supports a wide range of stepless speed regulation. Combined with a closed-loop control system, it can achieve precise speed and position control with a speed regulation accuracy of ±1%, which is suitable for fields with high control accuracy requirements such as automated production lines and precision transmission equipment.
Low noise and stable
operation
The symmetrical transmission structure of our planetary gears effectively reduces vibration and noise during operation. The brushless motor has no commutation sparks or friction noise during operation, and the overall operation noise can be controlled below 50dB, making it suitable for noise-sensitive scenarios such as medical equipment and smart home.
Wide adaptability and high environmental tolerance
Our BLDC planetary gear motor can be customized with different reduction ratios according to requirements to meet different load speed needs; the motor shell can adopt a dust-proof and waterproof design, which can adapt to harsh industrial environments such as high temperature, humidity, and dust, and is suitable for the transformation and integration of various transmission equipment.
Product Detail Photos
BLDC Planetary Gear Motor
Brushless DC Planetary Reduction Motor
BLDC Planetary Gear Reducer Motor
Planetary BLDC Motor
Planetary BLDC Motor Set
All Aluminum Planetary DC Motor
Cylindrical Planetary Motor

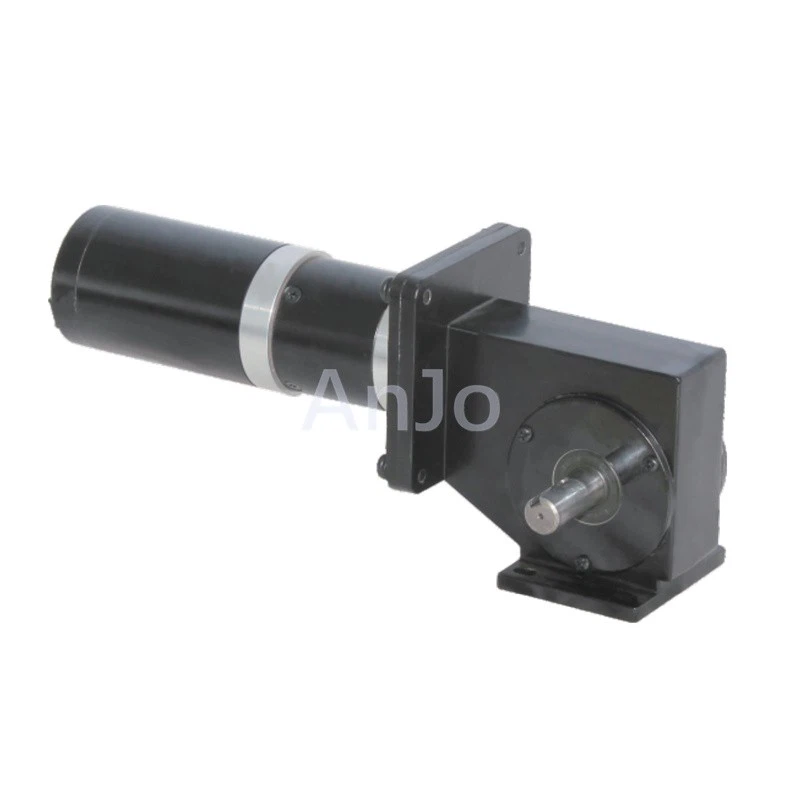

Right Angle Planetary Gear Motor
Flange Mount Planetary BLDC Motor
Product Description
|
15W Brushless DC planetary gear motor |
|
|
Type |
Brushless DC (BLDC) |
|
Frame size |
42mm 45mm |
|
Motor speed |
2000 rpm |
|
Output shaft |
Round shaft, D-cut shaft, key-way shaft, hollow shaft…can be customized |
|
Voltage type |
12V / 24V / 36V / 48V / 90V / 110V /180V... can be customized |
|
Accessories |
Internal driver / External driver / Connector / Brake / Encoder… |
|
Gearbox type |
Planetary |
|
Ratio |
1/4 ~ 1/216 can be customized |
| Torque | 68-75Nm |
|
Package |
carton/wooden box |
|
HS codes |
8501310000 |
Partial drawing display
Our Advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: How long will the product delivery take approximately?
A: Standard products take 5-35 days, and customized products take a longer time.
Q: How will it be shipped to us?
A: We support various transportation methods such as sea freight, air freight, and railway transportation.
Q: How can I contact to place an order?
A: You can send an inquiry directly, and our sales staff will contact you promptly.
