Product Characteristics
High-rigidity gearbox + heavy-duty bearing configuration
Our gear reducer adopts high-strength metal gears, which are carburized and quenched, resulting in high tooth surface hardness and strong wear resistance. It is equipped with heavy-duty deep groove ball bearings, which can bear combined radial and axial loads, adapt to long-term high-load operation, and avoid shaft system deformation or gear tooth breakage.
Wide frequency speed regulation + closed-loop control compatibility
Our motor supports 50Hz/60Hz power frequency operation, and can achieve a wide range of speed regulation from 5 to 50Hz when paired with a frequency converter, with a speed fluctuation rate ≤ 2%. A reserved encoder installation interface allows for external incremental encoders to realize closed-loop speed/position control, meeting the driving needs of high-precision automated equipment.
Split-type heat dissipation + IP55 protection design
The body of our small gear motor uses an aluminum alloy heat dissipation shell. The gearbox and the motor body have independent heat dissipation channel designs, reducing the temperature rise during continuous operation by 20% compared to integrated motors of the same power. With an IP55 protection rating, it can resist low-pressure water jet spraying and dust intrusion, adapting to complex working conditions such as under outdoor canopies and workshop spray cleaning.
Product advantages
High power density with abundant torque output
Under a rated power of 200W, by optimizing the gear reduction ratio (1:3~1:1800 optional), it can stably drive medium and heavy loads such as small conveyor lines and material hoists without the need to upgrade to a motor with higher power.
Low-noise operation + strong shock absorption adaptability
The precision gear grinding process of our motor ensures that the gear meshing accuracy is ≤0.02mm, resulting in low operating noise. It can effectively reduce equipment resonance and is suitable for scenarios sensitive to noise and vibration, such as medical laboratory equipment and office automation devices.
Standardized quick installation + high universality of accessories
The output shaft specifications comply with the ISO 9409-1 standard, which can be directly matched with mainstream accessories on the market such as couplings, brakes, and flanges. The installation dimensions are compatible with 100W/150W motors of the same series, eliminating the need to modify installation positions during equipment upgrades and significantly reducing transformation costs.

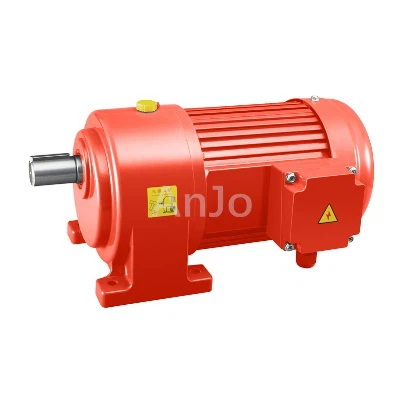

Product detail photos
Product Description
|
200W Small Motor |
|
|
Motor power |
0.2kw, 1/4HP |
|
Motor speed |
1350rpm at 50Hz, 1650rpm at 60Hz |
|
Reducer ratio |
1:3 ~ 1:1800 |
|
Reducer shaft |
Diameter*18mm and length 30mm, Diameter*22mm and length 40mm |
|
Central height |
Diameter*18mm: 88.5mm, Diameter*22mm: 97.5mm |
|
Foot hole distance |
Diameter*18mm: 110mm, Diameter*22mm: 130mm |
|
Total weight |
Horizontal type: 8.6kg, Vertical type: 8.8kg |
|
Total length |
285mm/313mm with brake (including shaft) |
|
Warranty |
One year |
|
Place of origin |
China |
|
Brand |
ANG DRIVE |
|
Package |
carton/wooden box |
|
HS codes |
85015100 |
Partial drawing display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: How to select a suitable motor based on my equipment?
A: You can provide the product nameplate or parameters such as the power, speed, voltage, and working environment of the equipment, and our technical team will accurately match the model for you.
Q: What certifications do your motors have?
A: Our products have various certifications such as CE certification, ISO certification, and COC.
Q: How long is the service life of a motor? How to extend its service life?
A: The designed service life of the standard motor is 10-15 years, and the actual life depends on the operating conditions. Regular maintenance, avoiding overload operation, and maintaining stable voltage can effectively extend the service life.
