Product Characteristics
Adopting bevel gear meshing transmission structure
Our gear tooth surfaces are designed in a conical shape, which can directly achieve 90° vertical power steering without the need for additional steering mechanisms, adapting to multi-angle installation requirements.
Hard tooth surface high-precision processing technology
Our bevel geared motors are generally subjected to carburizing and quenching + precision gear grinding treatment. The tooth surface hardness can reach HRC58-62, with high tooth profile accuracy and good meshing fit.
Integrated design of motor and reducer
Our motor body and reducer are seamlessly connected, with a compact structure. The output shaft can be directly connected to the load equipment, eliminating intermediate connecting components such as couplings. Flange connection is also available.
Product advantages
Strong spatial adaptability and low operating noise
The vertical steering feature of our product can adapt to narrow and vertical installation scenarios, significantly saving equipment layout space; high-precision gear meshing reduces transmission impact, and the vibration and noise during operation are much lower than those of traditional transmission methods.
Excellent load-bearing capacity and long service life
The high-strength characteristic of our hard tooth surface can withstand large radial and axial loads as well as short-term overloads, with outstanding wear resistance and damage resistance. It can reduce the frequency of later maintenance and is suitable for industrial working conditions with high torque and heavy load.
Convenient installation and high transmission efficiency
Our motor and gearbox can form an integrated structure without the need for on-site adjustment of coaxiality, simplifying the installation process and shortening working hours; it reduces energy loss of intermediate transmission components, with a comprehensive transmission efficiency of over 90%, which is more energy-saving and power-saving.

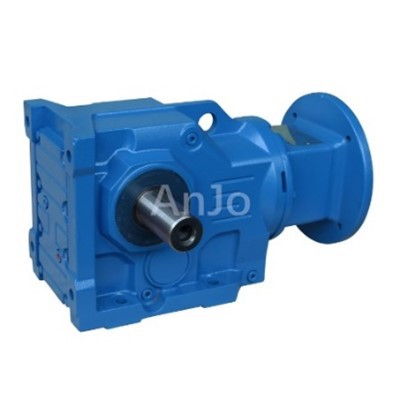

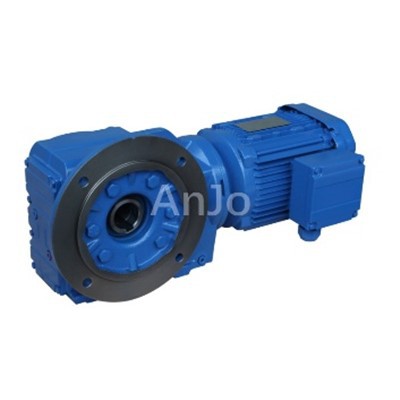

Product detail photos
Product Description
|
Bevel geared motor |
|
|
Model |
K37 ~ 187 |
|
Input power |
0.12kw ~ 200kw |
|
Input speed |
750rpm ~ 3000rpm |
|
Efficiency |
92%~97% (depends on the transmission stage) |
|
Noise (MAX) |
60~68dB |
|
Temp. rise (MAX) |
40°C |
|
Temp. rise (Oil)(MAX) |
50°C |
|
Vibration |
≤20µm |
|
Backlash |
≤20Arcmin |
|
Brand of bearings |
China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, NSK. |
|
Input motor |
AC (1 phase or 3 phase) / DC / BLDC motor |
|
Install type |
Shaft / Hollow shaft / Output flange… |
|
Output form |
Solid shaft/hollow shaft |
|
Output torque |
200~50000N.m |
|
Origin |
Zhejiang, China |
|
Warranty |
1 year |
|
Application |
Multiple industries such as food, chemical engineering, pharmaceuticals, metallurgy, and mining |
|
Package |
carton/wooden box |
|
HS code |
8483409090/8501510090/8501520090 |
Partial drawing display
Product details display
Applications
Eight reasons to choose us
Our advantages
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: Do your motor products have a warranty? How long is the warranty period?
A: Yes, our product has a one-year warranty.
Q: How to select a suitable motor based on my equipment?
A: You can provide the product nameplate or parameters such as the power, speed, voltage, and working environment of the equipment, and our technical team will accurately match the model for you.
Q: Does your company's motors support customization? What is the approximate customization cycle?
A: Customization is supported, and parameters such as voltage, rotation speed, installation dimensions, and protection level can be adjusted according to customer needs; the delivery time for customized products is generally 35-45 days.
