Product Characteristics
90° Right Angle Layout
The input and output shafts are vertically arranged at 90°, which changes power transmission direction flexibly and fits narrow installation space of machinery.
Multi-stage Planetary Transmission
Adopts planetary gear meshing structure with multiple teeth sharing load simultaneously, providing higher load capacity than ordinary gear reducers.
Precision Low-backlash Machining
Gears are precision ground, the whole unit owns tiny backlash to guarantee stable and accurate positioning control.
Product advantages
High Space Utilization
The bent right-angle structure avoids internal equipment interference, perfect for side-mounted servo motors and compact automation equipment.
High Torque & Impact Resistance
Load is evenly distributed by planetary structure, preventing gear breakage under short overload and extending service life.
Excellent Transmission Efficiency
Low loss during gear meshing, comprehensive efficiency of multi-stage transmission reaches over 90% to reduce energy consumption.
Product detail photos
Product Description
|

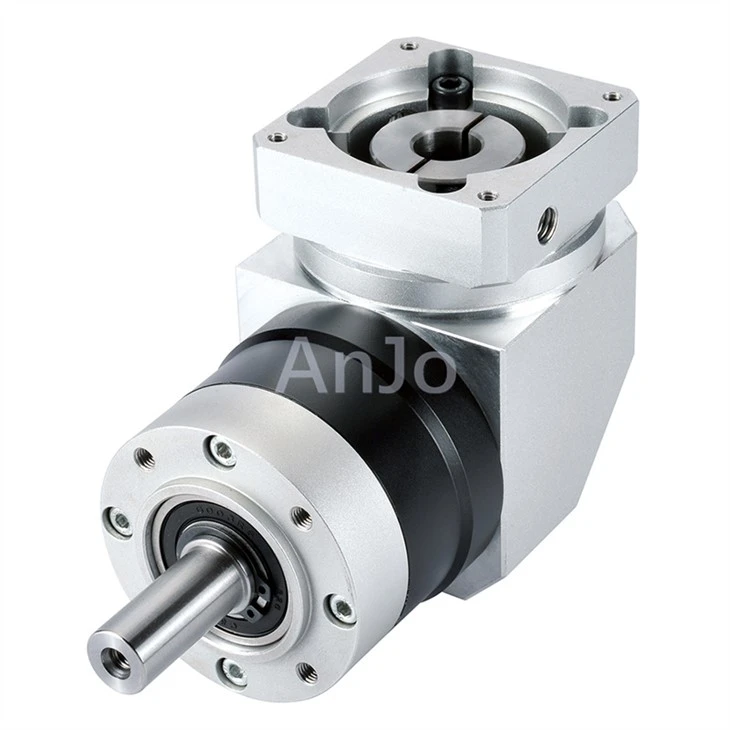

Right Angle Planetary Gearbox |
Partial drawing display
Product details display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q:What motors are compatible with right angle planetary gearboxes?
A:It matches servo motors and stepper motors with direct flange mounting, standard sizes fit 50~180 frame servo motors.
Q:What ratio ranges are available?
A:Standard model with service factor 1 works stably under continuous full load; select reinforced model with service factor 1.5 for impact load conditions.
Q:Does the output shaft support left or right rotation?
A:Standard bidirectional output. Rotation direction can be adjusted by switching input rotation without modifying the gearbox structure.
