Product Characteristics
Inline Coaxial Integrated Layout
Input and output shafts share the exact same central axis without offset. The straight integrated design eliminates transitional angle parts, ultra-high concentricity of internal planetary parts ensures vibration-free operation.
Compact Single/Double Stage Body
Only 2-stage transmission available with ratio range 25~125. Slim planet carrier and thin flange greatly reduce axial length, perfectly fit narrow longitudinal installation of linear modules and servo linear machines.
One-Piece Cast Sealed Housing
Integral ductile iron casting without split seams. Double-layer fluororubber oil seals on all end faces, standard dip lubrication chamber for horizontal mounting, stable protection against dust and cutting fluid splash.
Product advantages
Faster Servo Synchronization Response
Input and output shafts share the exact same central axis without offset. The straight integrated design eliminates transitional angle parts, ultra-high concentricity of internal planetary parts ensures vibration-free operation.
Plug-and-Play Servo Mounting
Standard servo flanges 60/80/90/130 for direct connection. No extra adapter plate or angle bracket required, greatly shortening machine assembly time.
Low Vibration & Quiet Operation
No meshing impact from bevel gears. Smooth helical planetary engagement narrows resonance range, ideal for noise-sensitive automated production and precision testing lines.
Product detail photos
Product Description
|

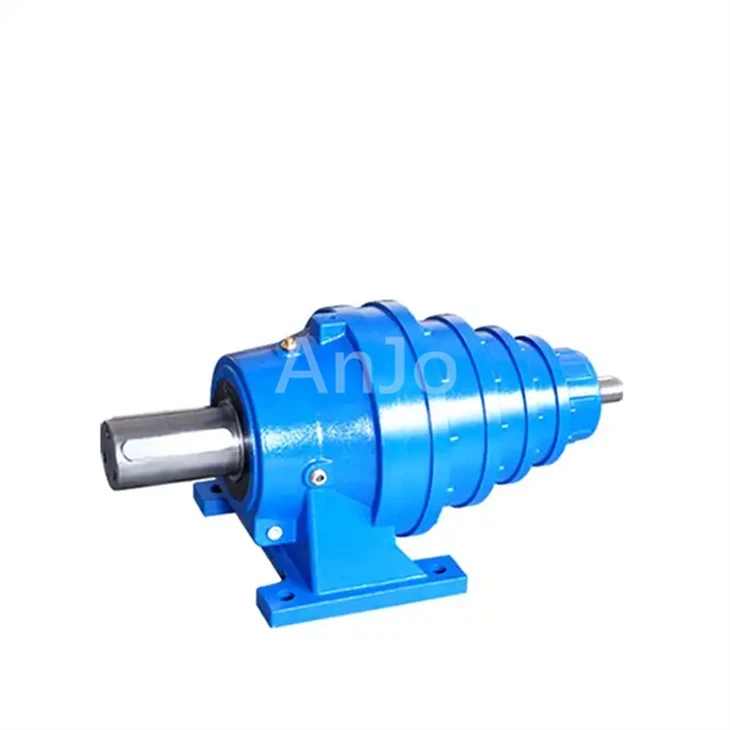

Inline Planetary Gearbox |
Typical model
Partial drawing display
Product details display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q:What is the max allowable input speed for inline gearbox?
A:Rated continuous input speed is 1500rpm, short-term peak reaches 1800rpm. Special high-speed grease upgrade is required for long-term operation above 1500rpm.
Q:Is inline gearbox suitable for frequent forward-reverse cycles?
A:Yes. Symmetrical force distribution avoids one-sided gear wear. Models with hollow shrink disc deliver longer service life on conveyors with dozens of direction switches per minute.
Q:What's the size difference between inline and right-angle units under same torque?
A:With identical output torque, inline gearbox is thinner and shorter axially. Right-angle types are wider transversely due to built-in bevel gears, so inline is preferred for linear machinery to save length space.
