Product Characteristics
Full Modular Composite Framework
Standardized modular units support coaxial, helical front-stage, bevel-helical integrated and bevel-planetary input types. 2/3 planetary stages are freely combinable, frame sizes from 9 to 34, ratio range 25–4000 complete. Torque arm, shrink disk, various flange accessories are optional for custom assembly.
Multi-Planet Load-Split Transmission
Multiple planet gears share load simultaneously via internal-external high-efficiency meshing to absorb impact. All gears are carburized, quenched and precision ground to HRC54–62 hardness. Ductile cast iron one-piece housing delivers strong rigidity and high radial load capacity against vibration.
Multi-Condition Lubrication System
Dip, splash and forced pump lubrication options available. Oil compensation tank matched for vertical mounting; special grease for high/low temperature. Supports horizontal, vertical, side and torque-arm mounting, suitable for 24h continuous heavy-duty operation.
Product advantages
Heavy-Duty High Torque Output for Large Machinery
Delivers far higher torque than standard reducers under identical dimension, max output torque up to 1920kN·m. Excellent resistance to shock overload, stable long-term operation for mining, stacker-reclaimer, large conveyor and mixer equipment.
High Efficiency & Low Long-Term Maintenance Cost
Overall transmission efficiency reaches 92%–97 with minimal power loss. Precision ground gears ensure low noise; fully sealed housing prevents oil leakage. Lubricant service life up to 8000h, greatly cutting downtime for maintenance.
Compact & Lightweight for Flexible Layout
Concentric planetary design shortens axial length. Ductile iron housing balances strength and weight. Multiple output types (solid key, hollow shrink disc, internal/external involute spline) fit narrow machine frames and eliminate extra adapter flange cost.
Product detail photos
Product Description
|

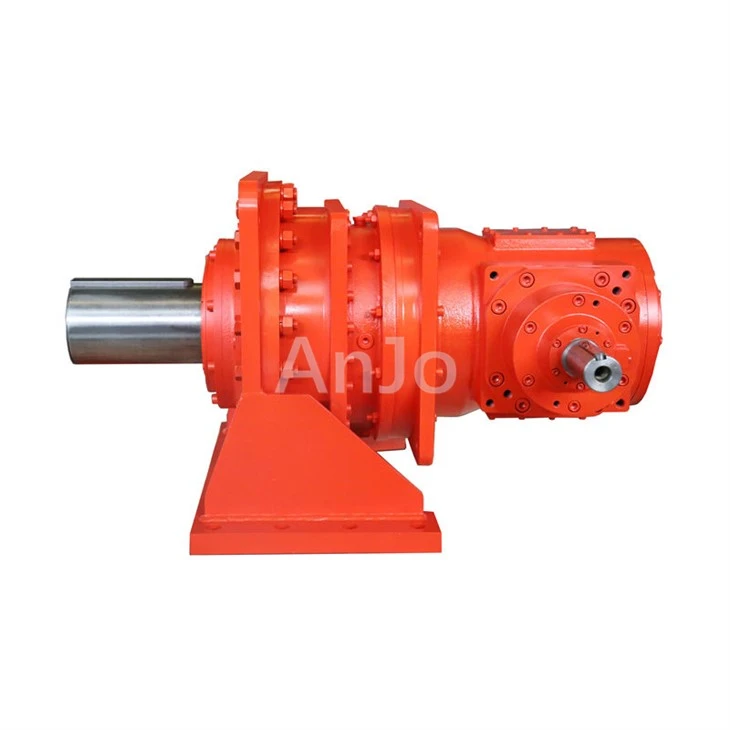

Planetary Gear Reducer |
Typical model
Partial drawing display
Product details display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q:What transmission types does P series have and their applicable working conditions?
A:Six models total: P2N/P3N coaxial for general conveyors; P2S/P3S helical input for medium-high speed large motors; P2L right-angle bevel for space-limited side mounting; P2K/P3K bevel-helical composite for ultra-low high torque with ratio up to 4000. Custom combinations are available.
Q:When is forced pump lubrication required?
A:For vertical mounting, long-term high speed, full-load 24h continuous operation, forced pump lubrication is mandatory. Standard horizontal/vertical types use dip or splash lubrication. Vertical top-mounted units need oil compensation tank to avoid bearing oil starvation.
Q:What output shaft options are there, and what are the benefits of hollow shaft with shrink disk?
A:Four output versions: solid parallel key, hollow shrink disc, internal/external involute spline. Shrink disc hollow shaft requires no keyway for easy assembly, zero-backlash connection, uniform torque transfer and no slipping during frequent forward/reverse rotation, ideal for screw and roller loads.
