Product Characteristics
Low Backlash Precision
Adopts multi-stage helical precision meshing technology, standard backlash reaches 3-8 arc-minutes with tiny positioning error, perfectly matching high-precision control of servo motors.
High Rigidity Integrated Structure
Integral alloy steel housing with thickened output flange provides strong radial and axial load capacity, avoiding deformation and vibration during operation.
High Transmission Efficiency Layout
Full support needle bearings for planet carriers, carburized and polished gear surfaces. Single-stage efficiency hits up to 97% to minimize power loss.
Product advantages
Stable Positioning & Low Recurring Error
Ultra-low backlash eliminates return clearance. It keeps processing points stable during repeated start-stop of robots and CNC machines, greatly raising finished product yield rate.
Impact Resistant & Low Maintenance
Hardened wear-resistant gears plus heavy-duty housing withstand instant servo overload impact. Sealed oil cavity prevents leakage and extends maintenance intervals.
Compact Size for Narrow Installation
Concentric planetary layout takes far less space than ordinary gear reducers under the same torque, enabling lighter machine bodies and flexible layout design.
Product detail photos
Product Description
|

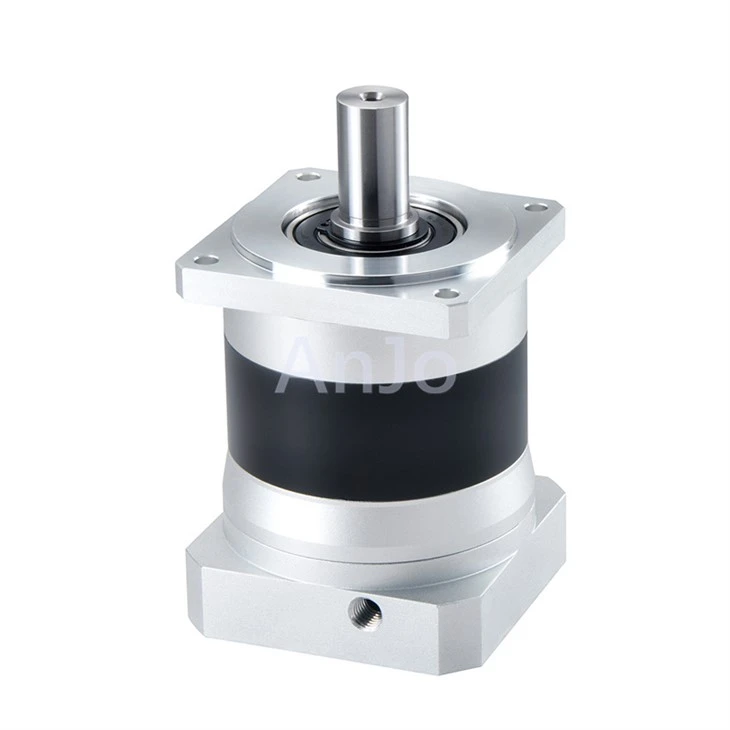

Servo Planetary Gearbox |
Partial drawing display
Product details display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q:What power range of servo motors can this planetary gearbox match?
A:Standard models fit 0.1kw to 15kw servo/stepper motors, with standard flange sizes 60/80/90/130. Custom non-standard connection dimensions are available on request.
Q:What is the maximum allowable input speed?
A:Rated continuous input speed is 3000rpm, short-term peak speed up to 4000rpm. High-speed lubrication upgrade is recommended for long-lasting high RPM working conditions.
Q:What is the operating ambient temperature limit?
A:Standard working temperature ranges from -20℃ to +80℃. High-temperature grease can be replaced for hot workshops, and low-temperature anti-freeze sealing kits are optional for cold environments.
