Product Characteristics
GG200 Cast Iron Housing
The whole housing is integrally cast with GG200 grey cast iron. Thickened housing with dense reinforcing ribs brings high structural hardness, strong pressure and impact resistance, no deformation or crack under heavy load.
Bronze Worm Gear Pair
The worm is made of quenched & tempered 45# steel, matched with wear-resistant tin bronze worm wheel. Tight tooth surface contact ensures even friction loss, stable long-term operation under low speed and high torque.
One-way Self-locking Transmission
Adopt 90° staggered worm and worm wheel layout. It automatically locks when bearing reverse load, preventing material sliding after power off with built-in mechanical braking performance.
Product advantages
Low Noise & Low Vibration Operation
Continuous smooth meshing of spiral teeth minimizes transmission impact and vibration. Low running noise during long continuous operation, ideal for assembly lines, mixers and other equipment requiring quiet working environment.
Compact Size with Wide Single-stage Ratio
Single-stage reduction covers full ratios from 10 to 60. Small footprint with foot-mounted structure, effectively saving installation space of complete machines.
Standard Size for Easy Universal Assembly
Standard dimensions of input/output shafts and mounting foot holes, compatible with 0.75-5.5KW three-phase motors. It can connect conveyors and lifting equipment quickly without customized brackets.
Product detail photos

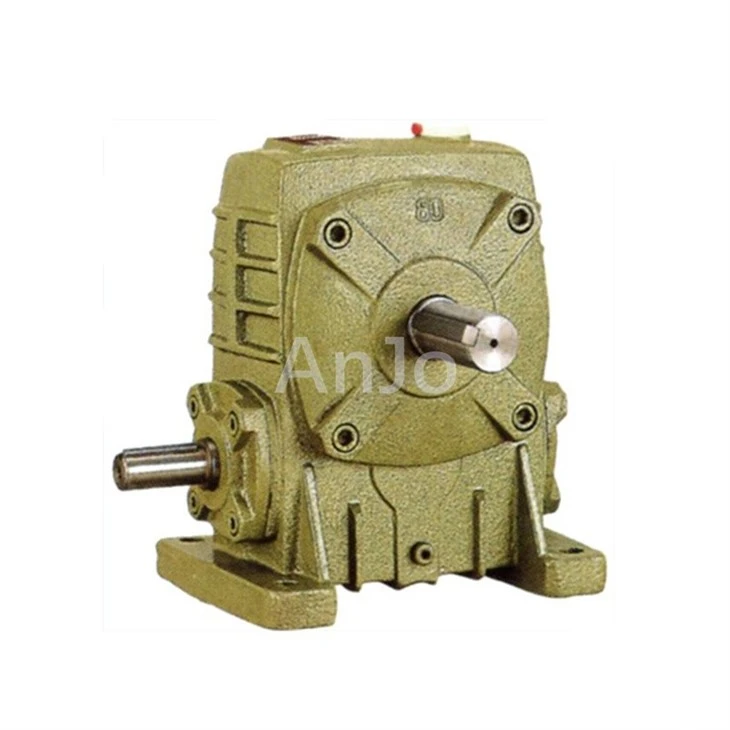

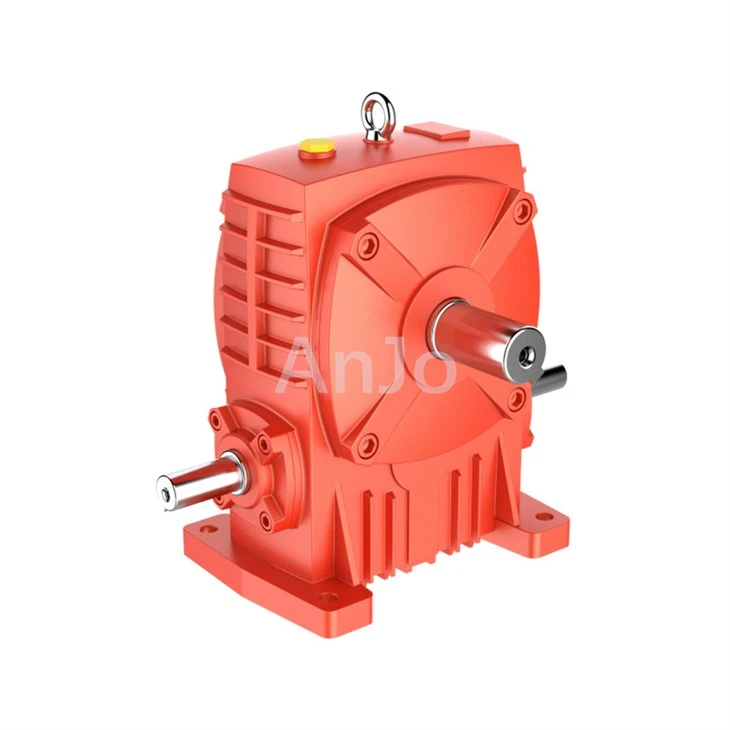

WP Series Product Detail Photos
Product Description
| Gearbox Wpa 100 | |
|
Type |
WPA |
|
Size |
100 |
|
Brand name |
ANG DRIVE |
|
Color |
Blue/Green/ or on request |
|
Ratio |
10-60 |
|
Input power |
0.12-33kw |
|
Output torque |
6-6020N.m |
|
Output shaft |
Hollow shaft/Solid shaft |
|
Material of housing |
Cast iron |
|
Bearing |
C&U, NSK, SKF or specified |
|
Seal |
CTY, CFW, SKF or specified |
|
Origin |
China |
|
Warranty |
1 year |
|
Application |
Multiple industries such as food, chemical engineering, pharmaceuticals, metallurgy, and mining |
|
Package |
carton/wooden box |
|
HS codes |
8483900090 |
Partial drawing display
Product details display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: What motor power matches WPA100 with GG200 cast iron housing, and which reduction ratios are available?
A: It fits 0.75KW, 1.5KW, 2.2KW, 3KW, 4KW, 5.5KW motors. Standard ratios: 10/15/20/25/30/40/50/60.
Q: Is a brake motor necessary for vertical lifting if the gearbox has self-locking function?
A: Brake motor is not required for light load and static positioning. For frequent start-stop and heavy vertical lifting loads, a brake motor is recommended for double safety protection.
Q:How to deal with excessive temperature rise of WPA100 under long-term full-load operation?
A: First check oil level and aging degree of lubricant. Install cooling fan, reduce continuous working time, and avoid overloaded operation exceeding rated torque for a long time.
