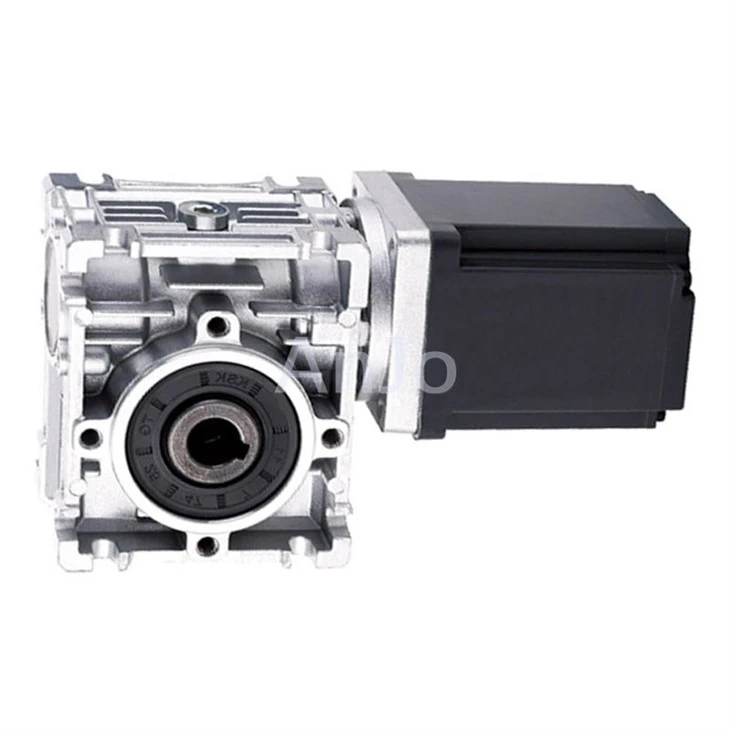

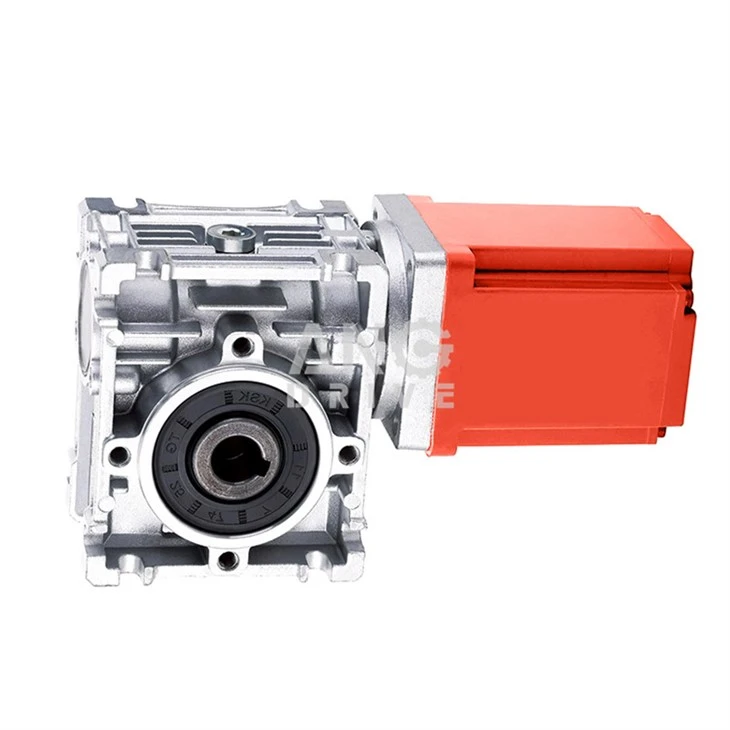

500W Brushless Worm Geared Motor is an integrated right-angle drive unit for small automation machines. It features energy-saving brushless design and high-torque self-locking worm structure. Custom voltage, reduction ratio and output shaft are available for lifting, conveying and compact intelligent equipment.
Responsive brushless DC speed regulation

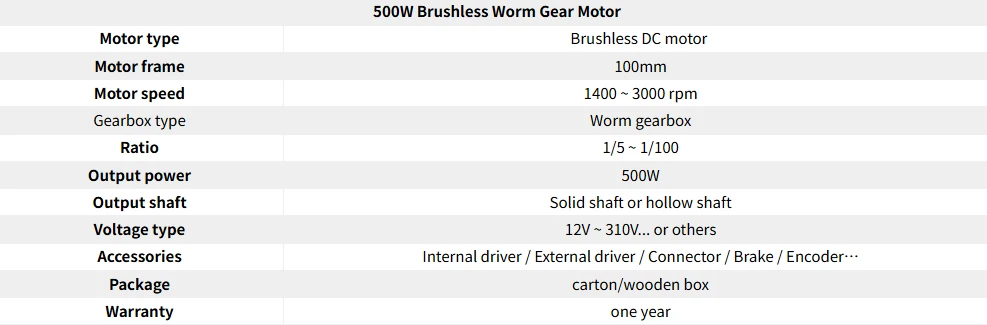

100-frame brushless motor with 1400-3000rpm no-load speed. Brush-free design delivers smooth speed change and fast start-stop response.
Cast aluminum worm housing with flexible mounting
Integrated reducer with full 5-100 ratio options. Solid & hollow output shafts available for foot and flange installation.
Modular attachments for special working conditions
Custom DC voltage from 12V to 310V. Optional brakes, encoders and internal/external drivers for positioning and braking tasks.
Low maintenance & lower overall cost
No wearable carbon brushes, low running noise, stable long-hour operation to cut regular maintenance work.
Self-lock function prevents load sliding
Unidirectional worm transmission stops reverse rotation after power off, greatly improving safety for lifting and inclined conveyors.
Universal DC power for mobile machinery
Compatible with low-voltage lithium battery and high-voltage industrial DC power, ideal for warehouse mobile machines and production line retrofits.
Q: Can this motor realize precise speed regulation and positioning control?
A: Yes. Stepless speed control is accessible with a matched driver, and high-accuracy positioning can be achieved by installing an encoder.
Q:Will there be obvious torque loss when selecting the 1:100 high reduction ratio?
A: With fixed 500W power, higher reduction ratio generates greater output torque with lower rotation speed. Within standard load limits, only slight efficiency loss caused by worm transmission exists, without drastic torque attenuation.
Q:Can motors with special power supply voltage be customized according to equipment drawings?
A:Absolutely. Apart from the standard 12V~310V voltage range, we can tailor exclusive voltage motors based on customers' equipment power supply parameters.
