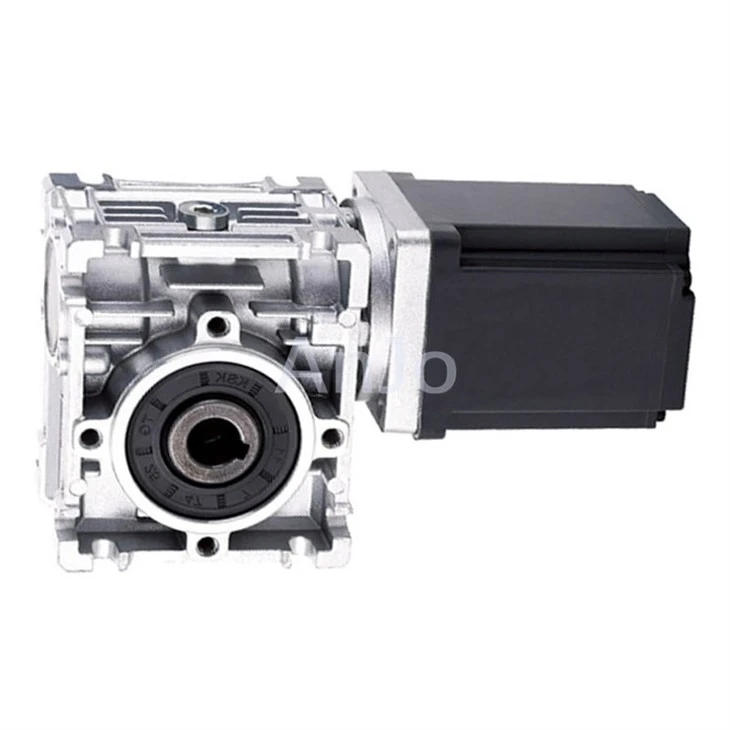

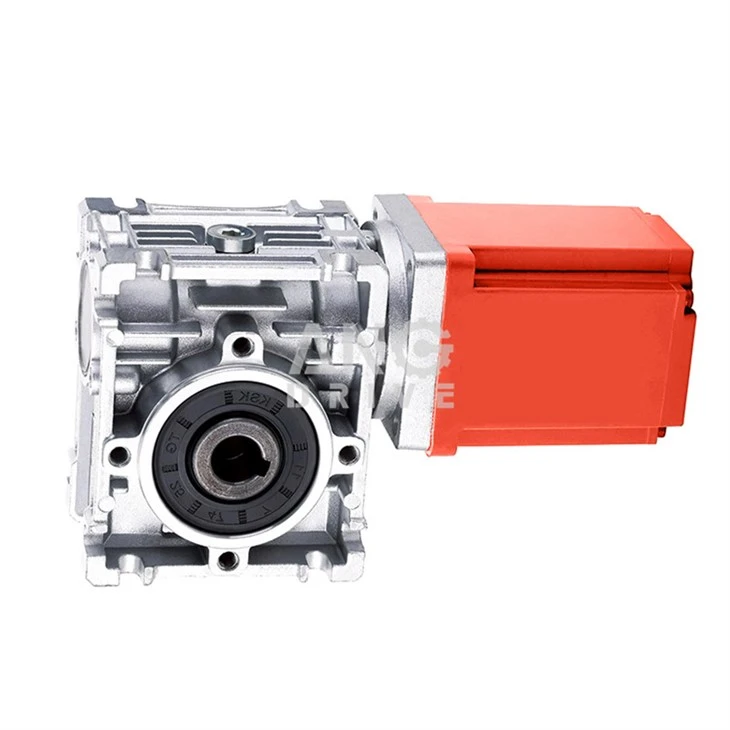

400W Brushless DC Worm Gear Motor is a right-angle drive power unit developed for medium and small automated equipment. It combines the stable driving performance of brushless motors and the high-torque self-locking characteristic of worm reducers. Featuring flexible speed regulation, quiet operation and wide installation adaptability, it is widely applied in lifting machines, conveying lines, miniature intelligent warehouse equipment and automatic positioning fixtures. Customizable voltage, reduction ratios and modular accessories are available for diversified industrial demands.
Wide-speed brushless power unit

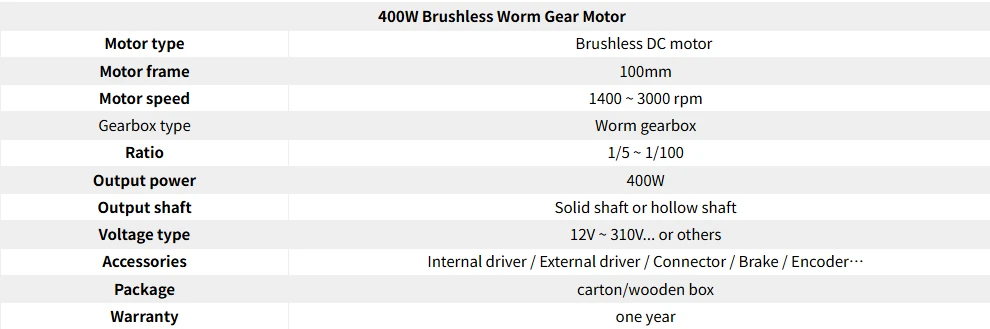

400W Brushless Worm Gear Motor equipped with a 100mm frame DC brushless motor, featuring a no-load speed range of 1400 to 3000 rpm. Its brushless structure enables stepless speed regulation throughout operation, allowing flexible adaptation to the speed requirements of various production lines.
Full-range worm gear reducer
Comes standard with an integrated worm and wormwheel gearbox. Full reduction ratios ranging from 1/5 to 1/100 are available. The output shaft is offered in solid and hollow configurations, compatible with a wide range of mounting connection methods.
Wide voltage & modular expandable accessories
Custom DC voltage ranging from 12V to 310V is supported. Accessories such as built-in drivers, external drivers, electromagnetic brakes and encoders can be freely selected to meet special working conditions including automated positioning, start-stop braking and so on.
Extreme Load Capacity of Larger Frame
The 400W Brushless Worm Gear Motor eliminates the carbon brush friction structure, eradicating carbon powder abrasion and high-frequency noise at the source. Its worm gear meshing delivers smooth and stable transmission, with very few easily worn parts across the whole unit. It boasts far superior stability during long-term continuous operation compared to brushed reduction motors.
Custom Protective Solutions for Various Conditions
The worm gear drive comes with an inherent self-locking feature against reverse rotation. After the equipment shuts down, the load will not reverse or slide downhill, making it highly suitable for lifting platforms, inclined conveyors, and material positioning equipment.
Free Matching of Full-Spec Electronic Parts
400W Brushless Worm Gear Motor can be powered by both low-voltage DC equipment and high-voltage DC industrial control equipment. It supports flexible switching between built-in and external drive solutions, and is directly compatible with assembly lines, warehouse mobile equipment and small automated machinery.
Q: Can this motor achieve high-precision speed and position control?
A: Yes. Stepless speed control is realized with a driver, and high-precision positioning can be achieved by installing an encoder.
Q:Will there be obvious torque loss at the reduction ratio of 1:100?
A: With fixed 400W power, higher ratio brings larger output torque with lower speed. Only minor torque loss caused by worm transmission efficiency within standard load range.
Q:How to choose solid shaft or hollow output shaft?
A: Solid shaft connects loads via couplings; hollow shaft can be directly sleeved on transmission shafts to save installation space, mainly used for roller conveying equipment.
