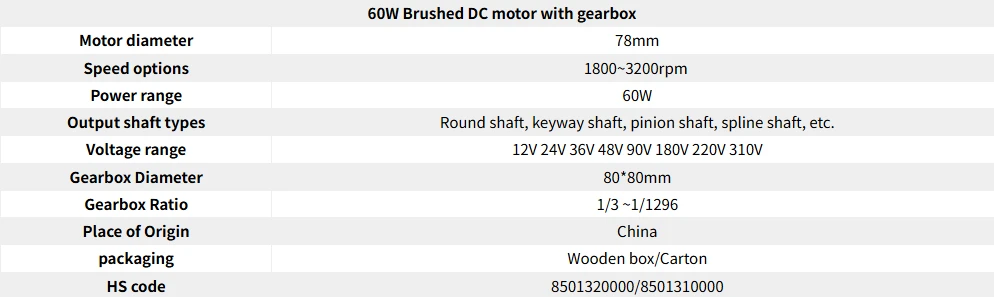

60W Brushed DC Gear Motor adopts a brand-new 78mm large-diameter motor body matched with widened & thickened 80×80mm square gearbox. The large frame bearing design delivers much higher torque output than 45mm small-power series. Stable no-load speed ranges from 1800~3200rpm, covering all standard DC voltages and full reduction ratios of 1/3~1/1296, with various customizable output shafts. Precisely manufactured in China factory, supplied with carton and moisture-proof wooden export packaging plus standard HS codes, perfectly suitable for heavy conveyors, lifting machinery and high-torque automated tooling equipment.
78mm widened frame & large-capacity winding for stable heavy-load current output
Differences of 60W Brushed DC Motor with Gearbox: Adopts a compact 45mm body and a 78mm inner cavity that accommodates more thickened copper wires. It can sustain a large rated current stably for long-term operation without power attenuation under frequent start-stop cycles and impact loads, addressing the pain point of insufficient low-voltage torque in high-power equipment.
80mm enlarged module alloy steel gearbox with impact & deformation resistance
The thickness of the 80×80mm square flange housing is increased by 40%, the module of internal gears is upgraded, and the meshing stress area is greatly expanded; the housing will not deform under long-term full load and instantaneous jamming impact, and the gear meshing precision remains stable for a long time.
Full-dimensional customization for heavy machinery & one-stop export support
60W Brushed DC Motor with Gearbox supports extended large-diameter output shafts, IP54/IP65 sealing protection, power-off brakes, and optional speed measuring encoders; wooden cases are reinforced and moisture-proof treated, and a full set of certificates of origin such as CO and FORM E can be provided.
Abundant torque reserve & strong short-time overload tolerance
Comparison of 60W Brushed DC Motors with Gearboxes of the Same Volume: the torque of the 45mm series is increased by over 120%. In cases of sudden material jams or short-term overloads of equipment, the motor heats up slowly, the coils are less prone to burnout, and the frequency of production line shutdowns for maintenance is greatly reduced.
Multi-hole mounting flange for firm fixing on heavy frames
The 80 mm square flange is prefabricated with multiple evenly distributed mounting screw holes, compatible with heavy-duty metal equipment brackets. It avoids loosening or displacement under high-speed vibration conditions, delivering remarkably superior operational stability compared to motors with small flanges.
Long-life wear-resistant consumables double maintenance interval
Comes with exclusive extended, thickened and wear-resistant carbon brushes rated for 60W, cutting the wear rate by half under high-current operating conditions. Its gears are made of integrally hardened alloy steel to resist fatigue wear, doubling the maintenance replacement cycle of the whole machine.

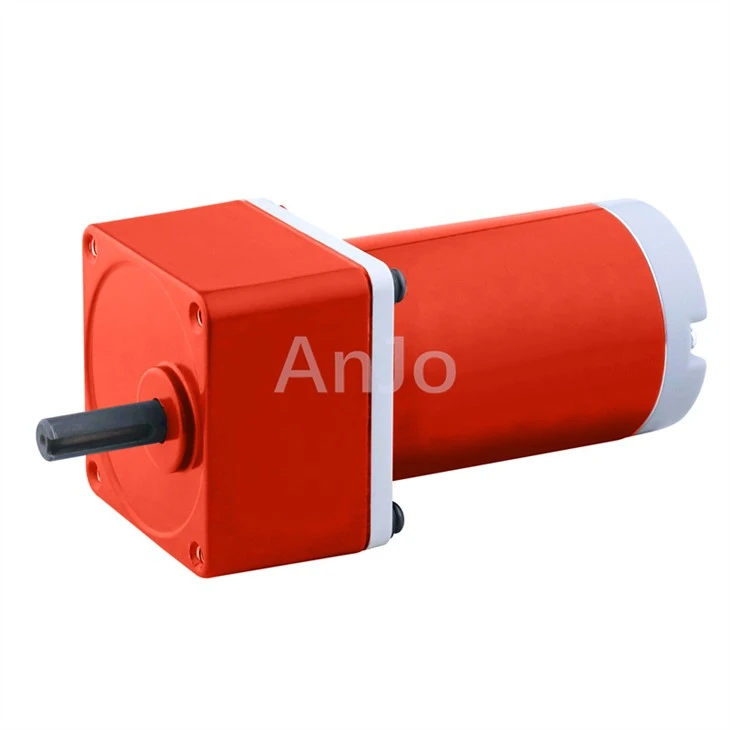

Product Photo
Q:How to switch forward and reverse rotation?
A:Simply swap positive and negative power wires to reverse rotation without extra reversing controller.
Q:Does the motor come with power cables as standard?
A:Short cables equipped by default; extended cables, waterproof aviation plugs and quick connectors customizable.
Q:Can I purchase standalone 80×80mm gearbox spare parts?
A:Complete 80-series gearboxes and alloy steel gear assemblies sold separately, only compatible with 78mm outer diameter motors.
