30W Brushed DC Gear Motor adopts standard 45mm motor body matched with 60-series square gearbox, rated at 25W with higher output torque than 10W & 15W models. Its no-load speed ranges from 1800~3200rpm with wide voltage compatibility and gear ratios from 1/3 to 1/1296. Multiple customizable output shafts are available. Made in China with standard export packaging and HS codes, ideal for medium-load transmission of small & medium-sized equipment.
30W upgraded winding for medium & heavy load applications
30W Brushed DC Motor with Gearbox, upgraded with thicker coils for the 45mm outer diameter body. It has a rated power of 30W and greatly enhanced load capacity, suitable for automated conveying and lifting equipment that requires stable medium-to-high torque.
Fully customizable specifications & complete export supporting documents
Voltage, rotational speed, reduction ratio and output shaft structure can all be adjusted as required; two types of shipping packages, cartons and moisture-proof wooden cases, are available.
Standardized universal 60-series gearbox
30W Brushed DC Motor with Gearbox, motor diameter: 45 mm; gearbox available in two options: 60*60 mm or 60*70 mm. The square housing features universal mounting holes and allows direct interchangeable installation with low-power motors of the same dimensions.
Sufficient torque reserve & controllable temperature rise under long-term heavy load
Optimized thickened copper wire windings deliver ample torque margin under 30W power. The unit generates less heat during continuous medium-to-heavy load operation, reducing the frequency of shutdowns for cooling and extending the overall service life of the machine.
Strong compatibility & low replacement cost
All series adopt unified 45mm motor frame and 60-series gearbox mounting dimensions. No new molds or frame modifications are needed for equipment renovation or cross-power model replacement, greatly cutting transformation cost and construction period.
Easy maintenance with widely available universal spare parts
Wearing parts including bearings, gears and carbon brushes are interchangeable among the whole series. Standard spare parts are in stock to minimize equipment downtime during after-sales repair.

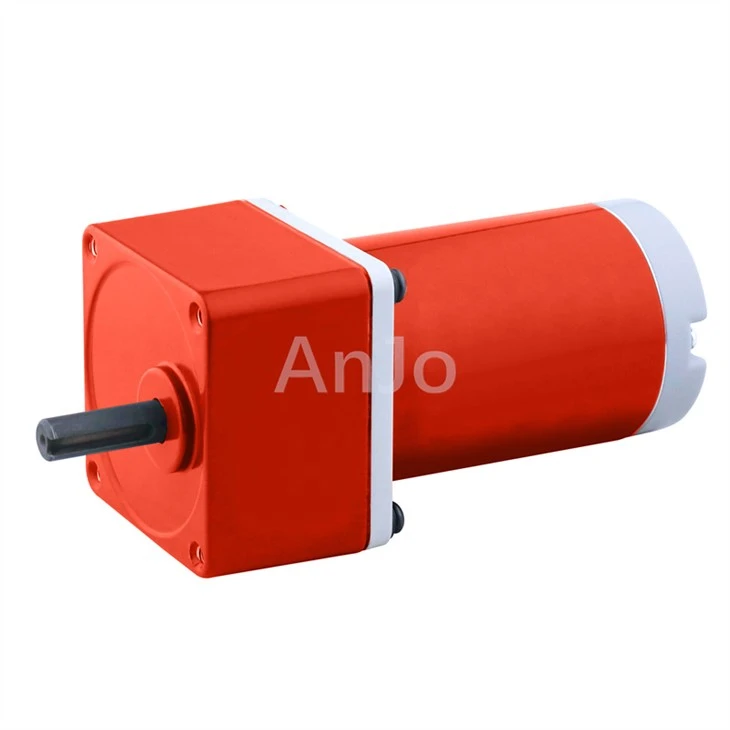

Product Photo
Q: How to control forward and reverse rotation of the motor?
A:Simply swap the positive and negative power wires to switch rotation direction without extra controller.
Q:Does the motor come with power cables by default?
A:Short wires are equipped as standard; extended cables or aviation plugs can be customized upon order note.
Q:Can I buy gearboxes separately without motors?
A:60-series gearboxes and gear assemblies are sold separately, compatible with all 45mm diameter motors.
