15W Brushed DC Motor with Gearbox is a geared power unit with standard 45mm motor body matched with 60-series square gearbox. Rated at 15W, it delivers higher torque than 10W models. It boasts abundant options of voltage, speed and reduction ratio with customizable output shafts, widely applied in transmission of small & medium automation and intelligent equipment.
Fully customizable parameters for diverse assembly
5 standard no-load speeds, 8 standard DC voltages and an ultra-wide range of gear ratios are available. Output shafts can be customized into round, keyway, pinion and spline types to fit various connection structures.
45mm motor body paired with standard 60-series gearbox
The motor core diameter is 45mm, with two optional gearbox sizes: 6060mm and 6070mm. The square casing has standard mounting holes for easy installation and compact layout.
Stable 15W rated power with wide voltage compatibility
Constant 15W power output, compatible with DC power from low 12V to high 310V. Optimized internal windings ensure stable current under both low and high voltage working conditions.
Extensive gear ratio range for flexible torque control
Reduction ratios cover 1/3 ~ 1/1296, suitable for high-speed light-load and low-speed heavy-load applications. The 15W rated power provides stronger continuous output torque.
Universal mounting design to cut processing cost
Standard mounting holes on square gearbox. Multiple shaft types connect to customer transmission parts without extra adapters, saving mechanical processing procedures.
Simple brushed control & durable long-term operation
Easy drive circuit design, low vibration and running noise. Reliable for continuous light & medium load indoor operation with simple maintenance.

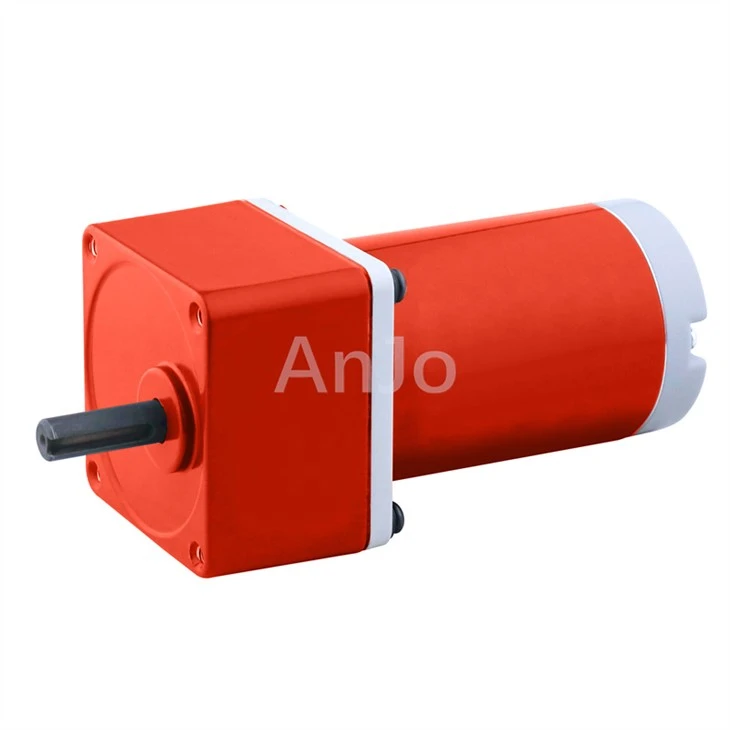

Product Photo
Q: Can this motor be fitted with brake or encoder?
A:Yes, electromagnetic brake and speed measuring encoder are optional customizations, just leave a note when placing orders.
Q:Is there a limit on continuous running time?
A:It can run 24 hours continuously under light load at normal temperature; intermittent operation is recommended under full load to prevent overheating.
Q:Can we customize cable outlet direction and wiring terminals?
A:Customization is supported, including wire length, cable outlet angle, metal terminals or plastic plugs as per drawings.
