The 6W Brushed DC Motor with Gearbox is a universal micro power transmission component featuring low voltage, low speed with high torque and high cost performance. Integrating a premium brushed DC core and a precision metal gear reducer, it effectively solves the problems of insufficient torque and unstable operation of ordinary small-power motors. With a mini and compact structure, it delivers stable and consistent power output. Compatible with standard low-voltage DC power supply, the motor features sensitive start-stop response, strong load resistance, good dustproof performance, low failure rate and easy maintenance. It is widely used as the core power part for small automated equipment, smart devices and micro transmission mechanisms in civil and light industrial scenarios.
Low power high torque, multiple gear ratios optional
6W Brushed DC Motor with Gearbox. Rated power: 6W. Multi-stage metal gears deliver speed reduction and torque boost. Its compact body saves installation space, and multiple standard reduction ratios are optional as required.
Carbon brush DC commutation, fast start-stop response
6W Brushed DC Motor with Gearbox adopts a mature carbon brush commutation structure, compatible with low-voltage direct current. Its internal windings are optimized to enable instant startup upon power-on, and it supports frequent start-stop and commutation operations.
Integrated sealed assembly with long-term lubrication
Integrated assembly of motor and gearbox; joint sealing gaskets provide dustproof and moisture-proof performance; gears are pre-filled with high-temperature resistant grease to resist vibration and wear.
Stable low-speed load without slipping or shaking
6W Brushed DC Motor with Gearbox. The gearbox amplifies torque, delivering sufficient low-speed output torque and enabling steady rotation under rated load, making it suitable for long-duration low-speed constant-load operations.
Simple wiring & control, low overall cost
No complicated driver boards are required; voltage regulation, speed control and commutation can be achieved simply by rewiring. The technology is mature, and spare parts for procurement and maintenance are low-cost.
Easy maintenance & wide application range
Carbon brush replacement is easy to operate, and the sealed structure extends service life. It is compatible with smart locks, small conveying equipment and micro lifting devices.

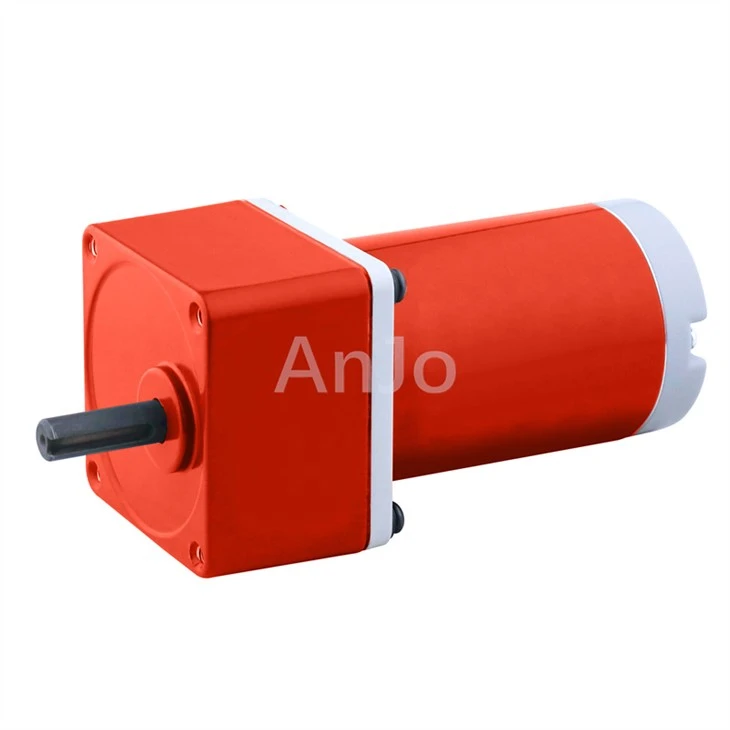

Product Photo
|
6W Brushed DC motor with gearbox |
|
|
Motor diameter |
45mm |
|
Speed options |
1500rpm 2000rpm 2500rpm 3000rpm 4000rpm |
|
Power range |
6W |
|
Output shaft types |
Round shaft, keyway shaft, pinion shaft, spline shaft, etc. |
|
Voltage range |
12V 24V 36V 48V 90V 180V 220V 310V |
| Gearbox Diameter | 60*60mm / 60*70mm |
|
Gearbox Ratio |
1/3 ~1/1296 |
|
Place of Origin |
China |
|
packaging |
Wooden box/Carton |
|
HS code |
8501320000/8501310000 |
Q: What standard voltages does this motor support?
A:Standard DC12V & 24V, customized 6V/36V/48V available.
Q:What speed control methods are available?
A:DC voltage regulation or external speed governor, stable low speed without drift.
Q:Can the motor run 24/7 continuously?
A:Continuous operation is allowed under rated load & ventilation; heat sink is recommended for full-load all-day work.
