Products Introduction
Product Characteristics
High torque density and compact size
The multi-tooth meshing structure of our planetary gears can amplify the power of DC motors several times in a small space, outputting large torque; the overall volume is compact with a high power-to-weight ratio, making it particularly suitable for scenarios such as automation equipment, precision instruments, and small robots with limited installation space.
High transmission efficiency and low energy loss
The mechanical loss of our planetary gear transmission is much lower than that of worm gear structures and the like. Combined with the stable power output of DC motors, the overall transmission efficiency can reach 85%–95%; energy conversion is sufficient, which can effectively reduce energy consumption costs during long-term operation, and is suitable for portable devices and lithium battery-driven devices with high endurance requirements.
Stable operation and strong load adaptability
The symmetrical layout of the planetary gears in our DC planetary gear motor can disperse meshing forces, resulting in low vibration and low noise during operation (usually 50–60dB); it has good speed stability when facing load fluctuations, can work stably under working conditions with frequent forward and reverse rotations and alternating start-stops, and is not prone to problems such as gear jamming or increased wear.
Product advantages
The adjustable range of the reduction ratio is wide, and the adaptability is strong
Our product can achieve various reduction ratio adjustments by increasing or decreasing the number of planetary gear stages; it can not only meet the light-load requirements of high speed and low torque, but also adapt to the heavy-load scenarios of low speed and high torque. The output parameters can be flexibly adjusted without replacing the motor body.
Compact structure and high integration
Our gearboxes and DC motors mostly adopt a coaxial integrated design, with no additional transmission connectors, and standardized installation interfaces (such as flanges, shaft extensions, etc.); they can be directly embedded into the equipment's power system, simplifying the overall structure design of the equipment and shortening the equipment research and development and assembly cycles.
Low maintenance cost and long service life
The gears of our DC planetary gear motor are mostly made of high-strength alloy or engineering plastic materials, which have good wear resistance; combined with the sealed gearbox design, it can effectively prevent dust and oil pollution from entering, reducing gear rust and wear; daily maintenance only requires regular inspection of the lubricating oil status, and the service life can reach 5000–10000 hours, which is suitable for working conditions of long-term continuous operation.
Product detail photos
Product Application
Product Description
|

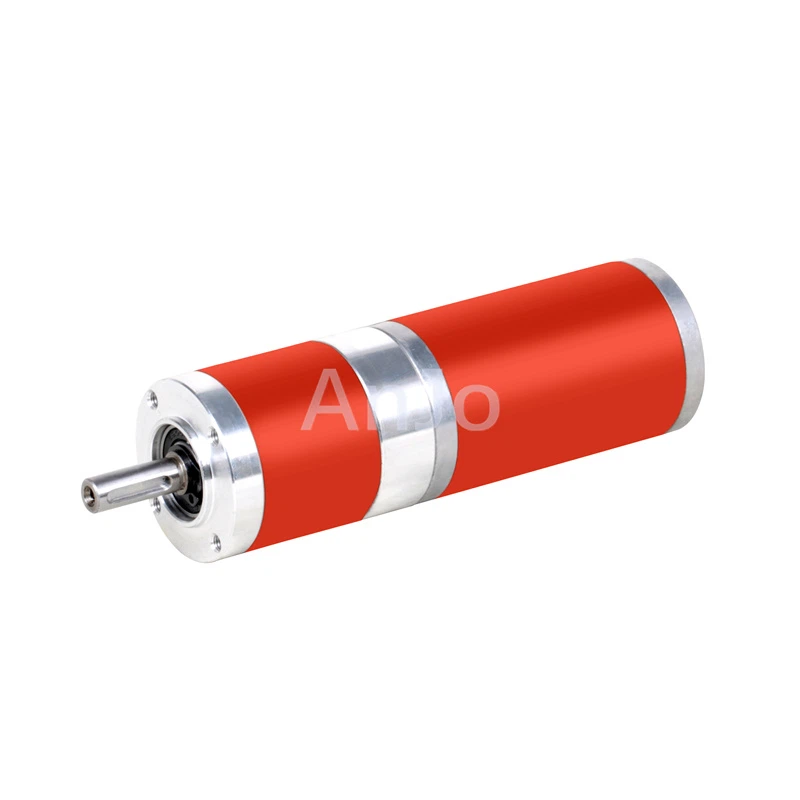

DC planetary gear motor |
|
|
Motor type |
Brush DC motor |
|
Frame size |
16-40... can be customized |
|
Motor speed |
1500~12180 rpm, |
|
Output power |
0.26~135.7... can be customized |
|
Output shaft |
round shaft, D-cut shaft, key-way shaft, hollow shaft… |
|
Voltage type |
12V / 24V / 36V / 48V / 90V / 110V /180V... can be customized |
|
Accessories |
Internal driver / External driver / Connector / Brake / Encoder… |
|
Ratio |
1/3 ~ 1/3000 can be customized |
|
Package |
carton/wooden box |
|
HS codes |
8501310000/ 8501320000 |
Partial drawing display
Our advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: How will it be shipped to us?
A: We support various transportation methods such as sea freight, air freight, and railway transportation.
Q: How to confirm that the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I visit the factory?
A: Yes, you are welcome at any time.
