Product Characteristics
High self-locking performance and safety protection
Our worm and worm gear transmission structure has a reverse self-locking feature. When the motor stops, the load cannot drive the motor to run in reverse, which can effectively prevent the equipment from reversing or sliding down due to gravity or external forces. It is particularly suitable for scenarios with high braking safety requirements such as lifting platforms, gates, and medical beds. Stable operation can be ensured without the need for additional braking devices.
Large reduction ratio and low-speed, high-torque output
The worm and worm gear transmission of our brushless worm gear motor can achieve a large reduction ratio of 10:1–100:1 in a single-stage structure. Combined with the efficient power of the brushless motor, it can directly output low-speed, high-torque power, meeting the needs of heavy-load and low-speed working conditions such as conveyor belts, mixers, and automated production lines. It eliminates the complex structure of multi-stage gear transmission and reduces the failure rate.
Quiet operation and strong environmental adaptability
The worm and worm gear of our brushless worm gear motor are in surface contact when meshing, resulting in small transmission impact, low vibration, and low operating noise. The brushless motor has no carbon brush wear, and with the sealed worm gear box design, it can achieve dustproof and waterproof performance (protection level up to IP65), adapting to humid and dusty industrial environments. Moreover, it has a long maintenance cycle, reducing downtime and maintenance costs.
Product advantages
Compact structure and flexible
installation
Our integrated design of worm gear and brushless motor features a small size, enabling various installation methods such as horizontal, vertical, and flange-mounted. It adapts to the spatial layout of different equipment, and is particularly suitable for scenarios with limited installation space, such as small automated equipment and smart home drive systems.
High speed regulation accuracy and excellent controllability
Our brushless motor supports wide-range stepless speed regulation. Combined with a closed-loop control system, the speed accuracy can reach ±1%, with fast start and stop responses. Precise speed and torque adjustment can be achieved through PWM signals or bus control, meeting the control requirements of precision transmission equipment.
Differentiated transmission efficiency and clear adaptability
Our worm gear has high efficiency and is suitable for medium and low load conditions. For higher efficiency, it can be matched with a helical gear-worm composite structure to balance the reduction ratio and transmission efficiency, adapting to industrial scenarios with different load requirements.

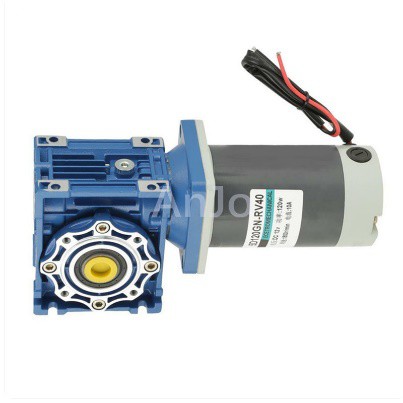

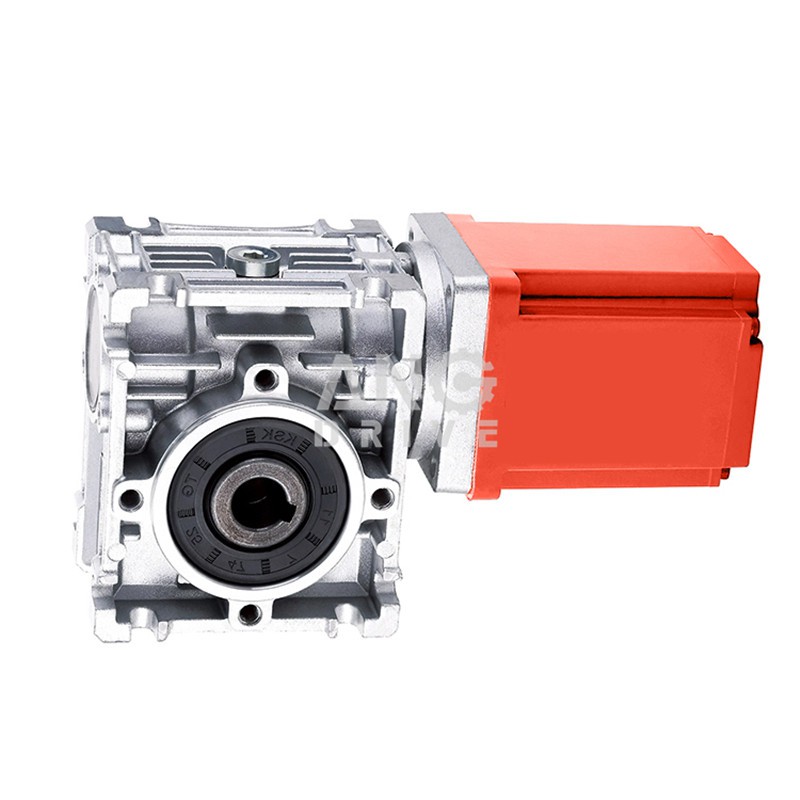

Product detail photos
Product Description
|
200W BLDC flat gear motor |
|
|
Motor type |
BLDC motor, it also can be DC brush motor or AC motor |
|
Motor frame |
60mm ~ 120mm |
|
Rated speed |
Motor 1400 ~ 3000 rpm, Gear Ratio 1/5 ~ 1/100 |
|
Output power |
10W ~ 2000W... and others |
|
Output shaft |
Solid shaft or hollow shaft |
|
Voltage type |
12V ~ 310V... or others |
|
Accessories |
Internal driver / External driver / Connector / Brake / Encoder… |
|
Package |
carton/wooden box |
|
HS codes |
8501310000/8501320000/ 8483409090 |

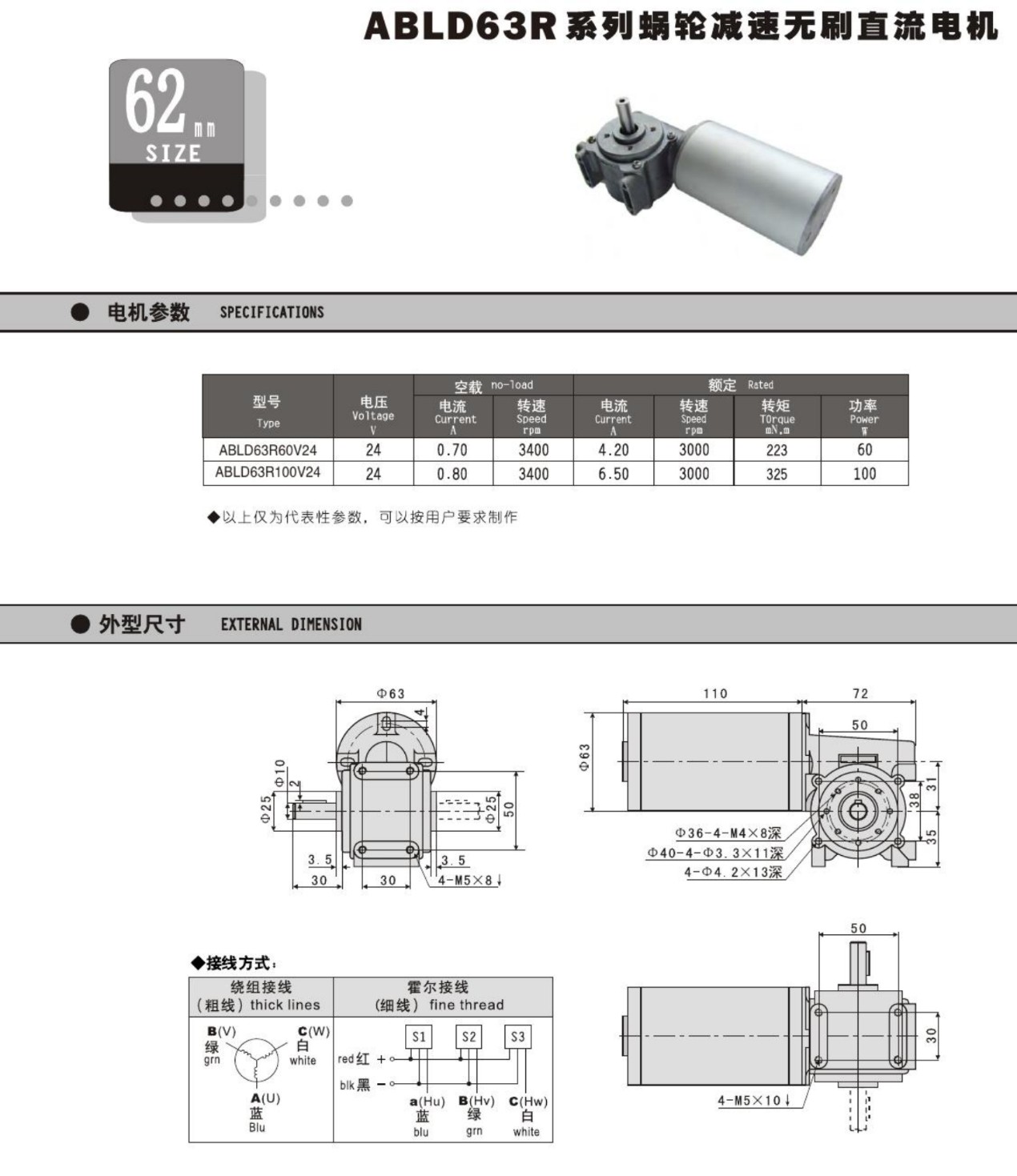

Partial drawing display
Our Advantages
Eight reasons to choose us
We have our own factory
Multiple certificate certifications
Customizationand selection Steps
Payment and Price Terms
Production and testing
Packaging and transportation
Signing for receipt and after-sales service
FAQ
Q: How to select a suitable motor based on my equipment?
A: You can provide the product nameplate or parameters such as the power, speed, voltage, and working environment of the equipment, and our technical team will accurately match the model for you.
Q: What certifications do your motors have?
A: Our products have various certifications such as CE certification, ISO certification, and COC.
Q: How long is the service life of a motor? How to extend its service life?
A: The designed service life of the standard motor is 10-15 years, and the actual life depends on the operating conditions. Regular maintenance, avoiding overload operation, and maintaining stable voltage can effectively extend the service life.
