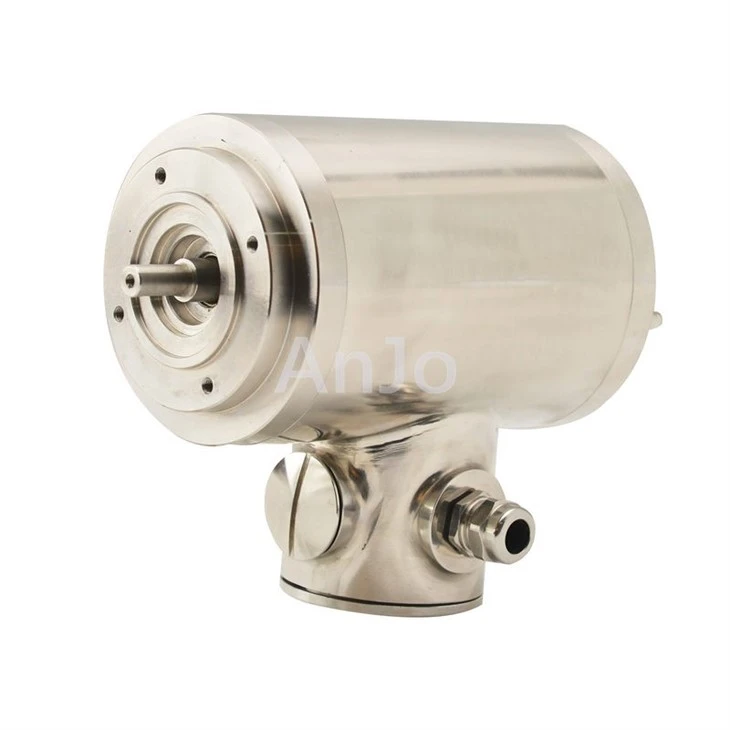

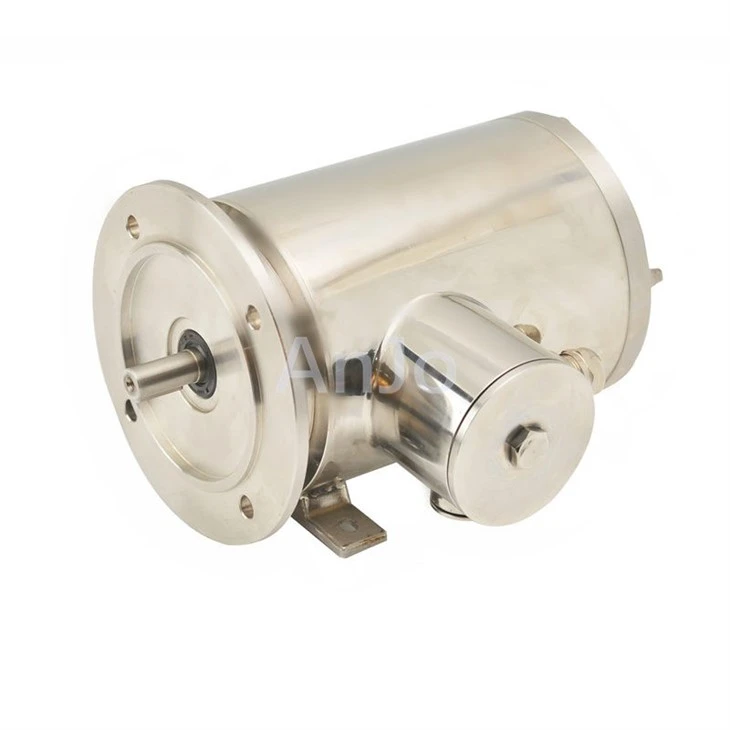

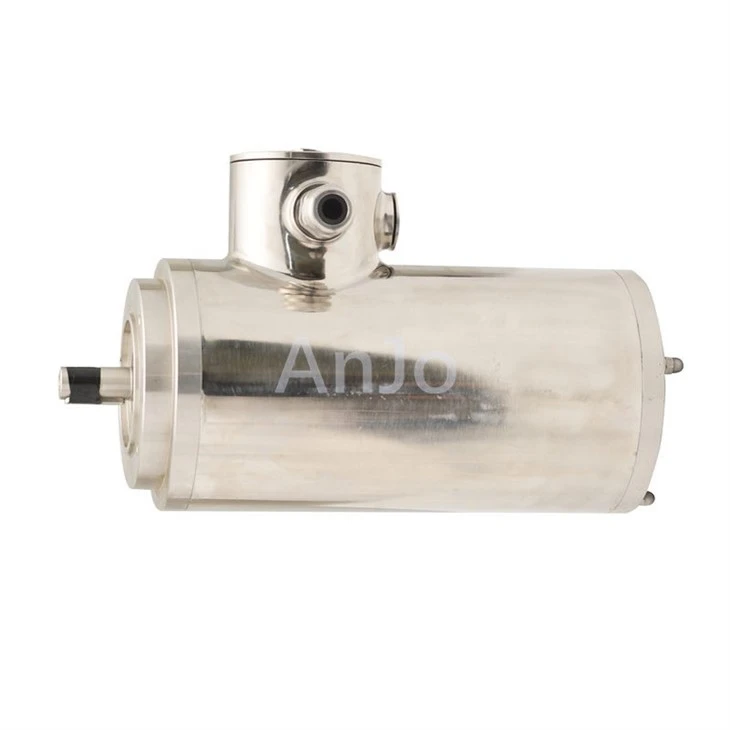

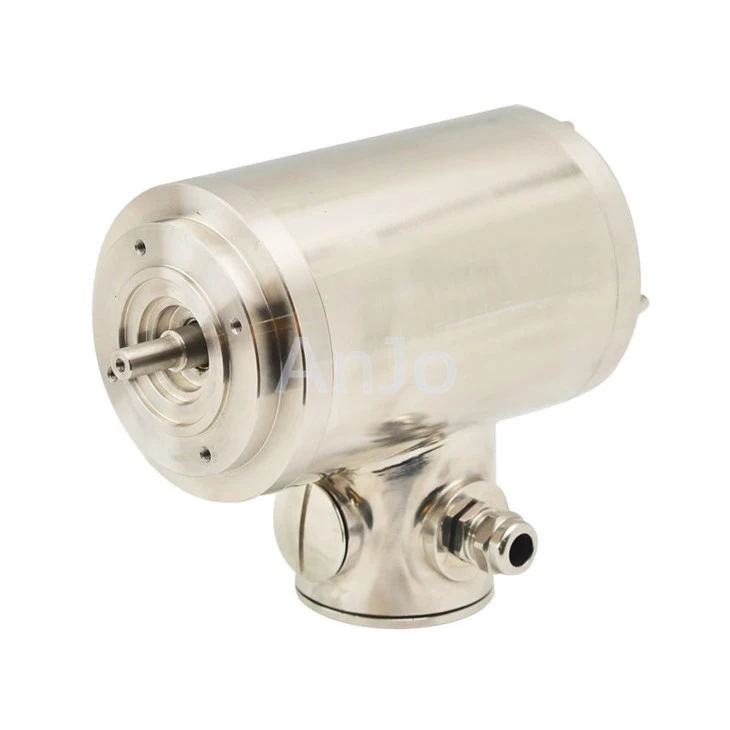

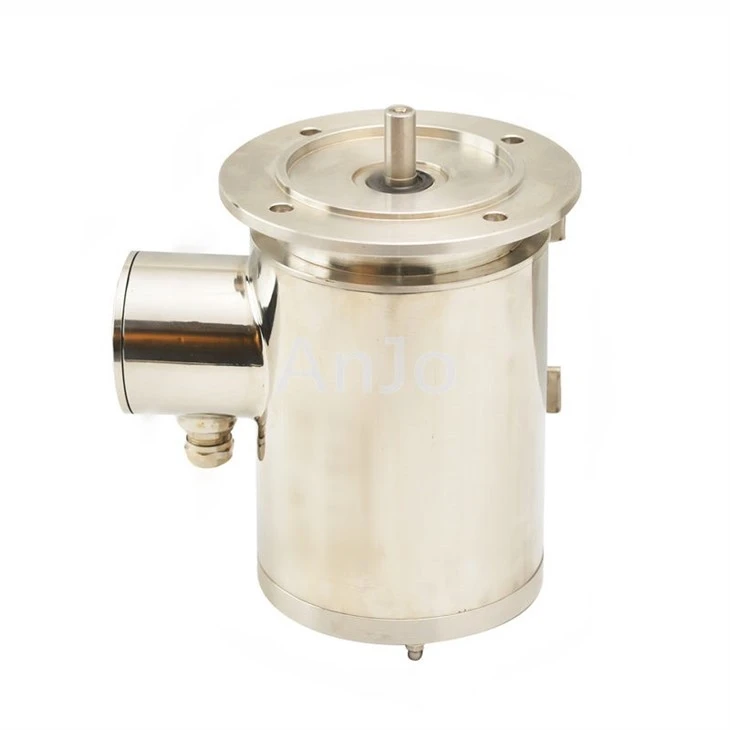

Stainless motor is a hygienic anti-corrosion drive motor with housing made of 304 stainless steel. It is designed for environments with frequent high-pressure washdown, high humidity, acid, alkali and salt spray. Widely adopted in automated conveying, mixing and filling machinery for food, pharmaceutical, aquaculture, beverage and water treatment industries. It covers comprehensive power range and complies with both IEC and NEMA standards with abundant electrical options.
Integrated 304 stainless steel housing
Precision machined and polished stainless motor body with no sprayed coatings and no dirt-trapping gaps. It supports CIP cleaning in place, comes standard with 304 material, and material upgrades are available on demand.
Wide standardized parameter options
Stainless motor power: 0.12~22kW, single-phase / three-phase supported with multiple voltage and pole options. It is compatible with IEC frame sizes 63~180 and NEMA frame sizes 56~286TC.
Multiple protection classes and mounting configurations
Stainless motors are available with IP55/IP66/IP69K protection ratings, and support multiple mounting configurations including B3/B5/B14/B35/B34. Cooling options include IC411, TEFC, TENV and others.
Excellent corrosion resistance to prevent contamination
Prevent product contamination: resist erosion from moisture, salt water, acid and alkaline cleaning agents, resist rusting and shedding of rust debris, and meet sanitary standards for clean industries.
Global voltage compatibility
Stainless motors support common voltages used in many countries across Europe, America, the Asia-Pacific and other regions. Both single-phase and three-phase types can be customized, facilitating supporting equipment exports to various countries.
High flexibility for machine integration
Stainless motors feature a wide range of frame, mounting and cooling solutions. They can be directly coupled with reducers and support multiple assembly configurations including horizontal and flange-mounted types for easy integration.
Stainless steel IEC Motor Description
Stainless steel NEMA motor Description
Q:Does it support both IEC and NEMA frame standards?
A: Yes. IEC 63~180 and NEMA 56~286TC frames are available to match different European and American equipment standards.
Q:What are the standard operating ambient conditions?
A:Standard ambient temperature: -15℃ ~ +41℃, working altitude ≤1000m. Please inform us in advance for high altitude or extreme temperature applications.
Q:What mounting types are offered?
A:B3, B5, B14, B35, B34 are standard mounting options, compatible with most standard reducers.
